1500VA ~ 3000VA Line Interactive UPS
Model: RPT-5715DU | RPT-5720DU | RPT-5730DU
- Driven by a sophisticated microprocessor for enhanced reliability
- Features 2-steps boost & 1-step buck AVR for stable output voltage
- USB port and monitor software is designed to manage UPS status via PC
- Built-in DC start function for AC-independent startup
- Incorporates CCCV battery charger for consistent charging
- Supports off-mode charging even with power switch off
- Enables auto-restart upon AC recovery and auto-shutdown on low battery
- Offers over/under voltage protection with seamless battery mode transition
- Facilitates easy battery replacement
- Provides 175-joule lightning/surge protection
The RPT-57xxDU series is a Line Interactive UPS that offers comprehensive power protection with high reliability. Its durable plastic cabinet provides a cost-effective alternative to expensive metal cabinet, making it affordable for a wider range of users. Equipped with 2-steps boost and 1-step buck AVR regulators, it stabilizes output voltage and corrects abnormal voltages, safeguarding connected devices. With an ultra-wide voltage and frequency input range, it adapts to harsh power conditions, ensuring stable and reliable power for equipment.
The RPT-57xxDU series excels in power protection for home and office applications. Its microprocessor control technology guarantees reliability while its sturdy plastic cabinet reduces costs without compromising performance. The 2-steps boost and 1-step buck AVR regulators provide voltage stability and protection against abnormalities. Furthermore, its ultra-wide voltage and frequency input acceptance range ensures consistent power delivery in challenging environments. With the RPT-57xxDU, you can trust your computer to stay powered and data secure.
Experience hassle-free maintenance with the RPT-57xxDU series. The battery sliding door design allows for easy replacement, simplifying upkeep procedures. This convenient feature saves time and effort, ensuring your UPS is always ready to provide reliable power protection. Choose the RPT-57xxDU for a cost-effective, dependable power supply solution that safeguards your devices and prevents data loss during power failures.
- Controlled by a technologically advanced microprocessor guaranteeing high reliability
- Equipped with 2-steps boost & 1-step buck AVR to stabilize output voltage
- USB port and monitor software is designed to manage UPS status via PC
- Built-in DC start function enables UPS to be started without AC power supplied
- Constant current, constant voltage battery charger (CCCV Battery Charger)
- UPS will charge itself even though power switch is off (Off mode charging)
- UPS will shut down upon battery low; UPS will restart automatically upon AC recovery (Auto-restart)
- Over / under voltage protection (UPS will go to battery mode)
- Easy replacement battery design
- Lightning / surge protection 175 joules

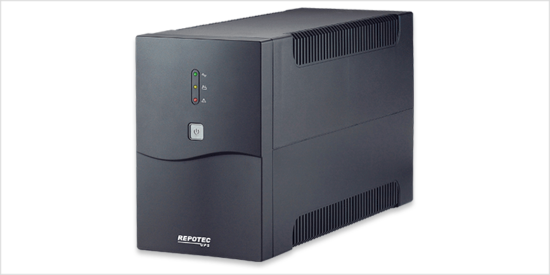

Front Panel
- Main Power Switch: On/Off or Silence Button
- On-Line LED: AC normal
- Back-Up LED: Battery in backup
- Cut-Off LED: Overload or Fault

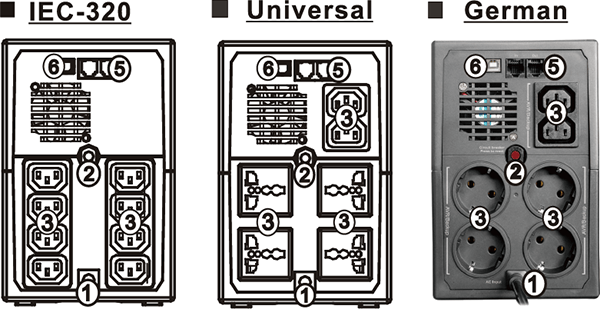

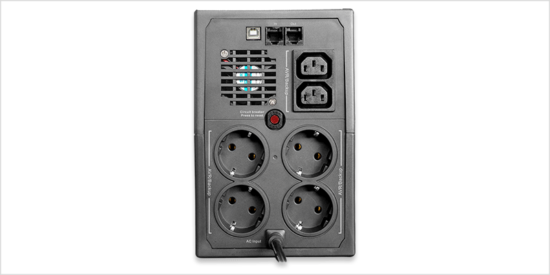

Rear Panel
- AC Input:Connect to input power cord
- AC Fuse/ Circuit Breaker
- Back-up/AVR Outlets
- Surge Protection Outlets
- RJ-45 port (Optional)
- Communication interface: USB port

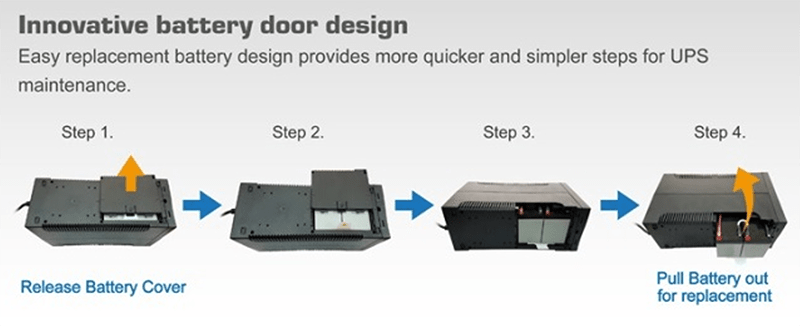

Battery Door
Model name | RPT-5715DU | RPT-5720DU | RPT-5730DU |
Capacity | 1500VA/900W | 2000VA/1200W | 3000VA/1800W |
Input | |||
Voltage | 220/230/240Vac | ||
Voltage Range | -30%,+25% | ||
Frequency | 50/60Hz(auto-sensing) | ||
Type of Plug | German input power cable | ||
Output | |||
Voltage (DC mode) | 220/230/240Vac +/-10% | ||
Frequency | 50/60Hz +/-1Hz | ||
Waveform | Simulated Sinewave | ||
Steps of Regulation | II Boost + I Buck | ||
Transfer Time | <6ms typical | ||
Socket |
Schuko*4pcs + IEC320 C13*2pcs for Back-up/AVR/Surge |
||
Battery | |||
Voltage | 24VDC | ||
Type | 12V/9AH*2pcs | 12V/9AH*2pcs | 12V/9AH*2pcs |
Recharge Time(to 90%) | 5H | ||
Indicator | |||
Display | LED indicator | ||
Alarm | AC normal (Green), Batt. Backup (Yellow), UPS cut off / fault (Red) | ||
Function | |||
Overload Protection | Yes | ||
Short Circuit Protection | AC fuse and Electornics Circuit | ||
Auto-recharge | Yes | ||
Auto-restart | Yes | ||
Battery Door Design Casing | Yes | ||
Management | |||
USB Communication Port | Yes, USB cable + download software included | ||
Dry contact |
NO | ||
Physical | |||
Dimension | 343*135*208mm | ||
Environment | |||
Humidity | 0-95% non-condensing | ||
Temperature | 0-40°C |
*Product specifications are subject to change without further notice.
RPT-5715DU | 1500VA/900W Line Interactive UPS with USB port |
RPT-5720DU | 2000VA/1200W Line Interactive UPS with USB port |
RPT-5730DU | 3000VA/1800W Line Interactive UPS with USB port |
