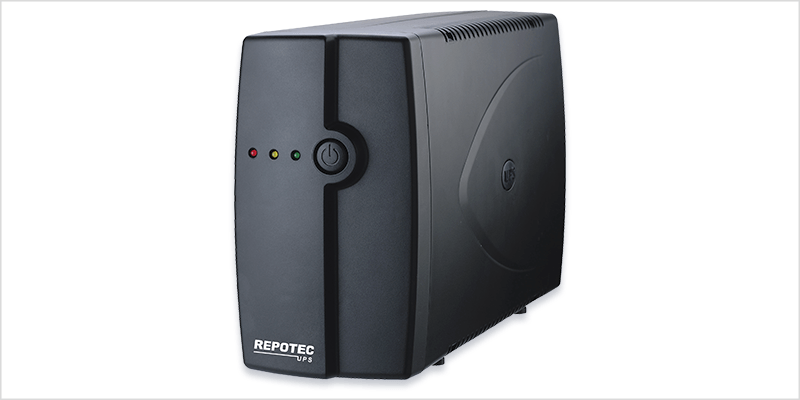

RPT-600DU | RPT-800DU | RPT-1003DU
600~1000VA Line Interactive UPS
- Comprehensive power protection
- Designed for home or small office use
- Prevents data loss during power failures
- Built-in 2-step boost &1-step buck AVR regulators
- Stabilizes output voltage fluctuations
- Rectifies abnormal voltages for device protection
- Handles complex power environments effectively
- Filters out electric wave interference
- Wide voltage and frequency input acceptance range
- Withstands demanding power conditions
- Provides a reliable and secure power environment
RPT-600DU series offers comprehensive power protection to safeguard against potential power issues, utilizing advanced microprocessor control technology to ensure optimal reliability. Designed specifically for home or small office use, this series is a reliable power supply solution.
One notable feature of the RPT-600DU series is its ability to prevent data loss caused by power failures, providing uninterrupted power to your computer. Equipped with built-in 2-step boost and 1-step buck AVR regulators, it effectively stabilizes output voltage fluctuations and rectifies abnormal voltages, thus ensuring the protection of connected devices. This capability allows it to effortlessly handle complex power environments.
RPT-600DU series consistently delivers a stable voltage across various input waveforms. It incorporates a high-power surge absorber that effectively shields electrical equipment from lightning strikes, as well as filters out different types of electric wave interference. Its wide voltage and frequency input acceptance range enable it to withstand demanding power conditions, providing a reliable and secure power environment for your equipment.
- Line Interactive UPS with interactive topology
- Controlled by a technologically advanced microprocessor guaranteeing high reliability
- Equipped with 2 boost & 1 buck AVR function to regulate output voltage
- Cold start function: built-in DC start function enables UPS to be started without AC power supplied
- Auto Restart Upon AC Recovery
- Built-in CCCV Battery Charger
- Off-mode Charging
- UPS Green Mode: Energy saving function
- USB port and cable for managing functions via PC

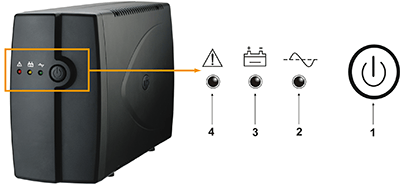

Front Panel
1. Master power Switch:
“ON/OFF/TEST/SILENCE” button.
2. On-Line LED: AC normal
3. Back-Up LED: Battery in backup
4. Cut-Off LED: Overload or Fault or Replace Battery

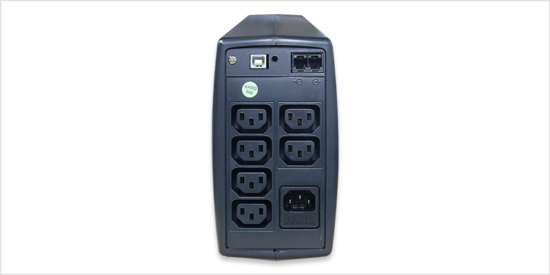

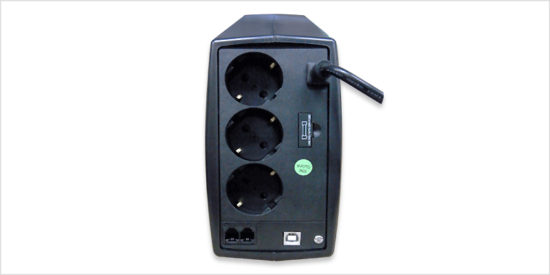

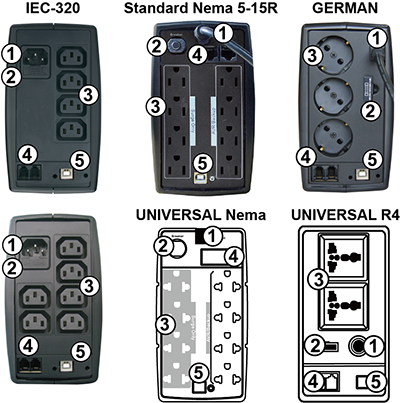

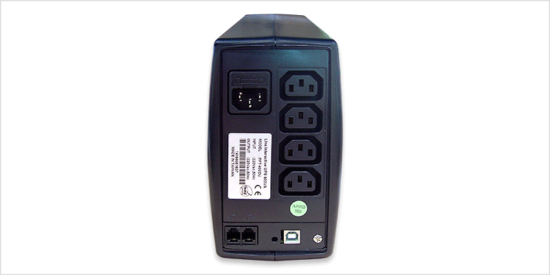

Rear Panel
1. AC Input:Connect to input power cord
2. AC Fuse/circuit Breaker: Provide Circuit overload and fault protection for the UPS and load
3. Outlets
4. RJ-11
5. Communication interface:USB port
Model No. | RPT-600DU | RPT-800DU | RPT-1003DU | |||
Capacity | 600VA/360W | 800VA/480W | 1000VA/600W | |||
Input | Voltage | 110/115/120Vac or 220V/230/240Vac | ||||
Voltage Range | -30%+25% | |||||
Frequency | 50Hz or 60Hz (Auto Sensing) | |||||
Output |
Voltage Regulation (Battery Mode) | 110/115/120VAC or 220/230/240VAC +/-10% | ||||
Frequency | 50Hz or 60Hz +/- 1Hz | |||||
Waveform | Simulated Sinewave | |||||
Transfer Time | < 6ms(Typical) | |||||
Outlet | IEC-320/Nema 5-15R | 4/4 | 6/6 | |||
Universal/German | 2/3 | |||||
Battery | Voltage | 12VDC | 24VDC | |||
Recharge Time | 5hr to 90% after complete discharge | |||||
Safety Protection | Over Charge & Discharge Protection | |||||
Advanced Battery Management | YES | |||||
Back-up Time (Load with 1PC ) | 20 Minutes | 30 Minutes | 40 Minutes | |||
Display | LED status indicator | Normal (Green), Battery (Yellow), UPS cut off (Red) | ||||
LCD status display | I/P & O/P Voltage & Frequency, Load %, Battery % | |||||
Audible Alarm | Battery Mode | Beeping twice every 8 second | ||||
Low Battery | Beeping four times every second | |||||
Overload | Beeping continuously | |||||
Fault | Beeping continuously | |||||
Function |
AVR (Auto Voltage Regulation) | 2 Boost + 1 Buck | ||||
DC start function | YES | |||||
Auto restart UPS | YES | |||||
Over/Under voltage protection | YES | |||||
No load Cut-off (Green mode) | YES | |||||
Silence the Audible Alarm | YES | |||||
Off Mode Charging | YES | |||||
Short Circuit Protection | AC fuse and Electronics circuit(Line mode) ; Electronics circuit(Back-up Mode) |
|||||
Lightning/ Surge Protection | 99 Joules(110/115/120VAC) / 175 Joules (220/230/240VAC) | |||||
Modem/Phone protection (Optional) | RJ-11 | |||||
Communication port (Optional) | USB port | |||||
Software | OPTIONAL | |||||
Environment | Operating Temperature | 0° C - 40° C (32℉~104℉) | ||||
Humidity | 0-95% (No condensing) | |||||
Acoustic Noise | <40 dB at 1M | |||||
Safety Standard |
LVC | CE(EN60950-1:2006+A11:2009 +A1:2010+A12:2011) | ||||
EMC | CE(EN55022 :2010 ; EN5024 :2010) | |||||
Physical | Dimension (UPS Case) (W*D*H) | 305*98*170mm | 385*98*170mm |
*Product specifications are subject to change without further notice.
RPT-600DU | 600VA/360W Line Interactive UPS with USB port |
RPT-800DU | 800VA/480W Line Interactive UPS with USB port |
RPT-1003DU | 1000VA/600W Line Interactive UPS with USB port |
