RPT-3130TR

RPT-3130TR
3000VA Line Interactive UPS, Rack / Tower Type

  • RPT-3130TR is rack mount or tower convertible design Line Interactive UPS.

    RPT-3130TR provides comprehensive power protection against any possible power problem, using microprocessor control technology to ensure high reliability.

    RPT-3130TR is a power supply solution that can prevent your servers or network equipments from losing data due to power failure.

    Built-in 2-step boost and 1-step buck AVR regulators can stabilize output voltage fluctuations and correct any abnormal voltages to protect connected device, this can easily cope with the complex power environment.

    RPT-3130TR can also output a stable voltage under a variety of different input waveforms.

    It has a built-in high-power surge absorber to prevent electrical equipment from being damaged by lightning strikes, and to filter all kinds of electric wave interference. The ultra-wide voltage and ultra-wide frequency input acceptance range are more able to cope with the harsh power environment, provide stable and reliable power, and provide a safer power environment for equipment.

    With LCD screen display users can easily understand the status of the UPS. With RPT-3130TR you don't need to worry about damaging your equipment under unstable power environments.

    • User-friendly LCD display

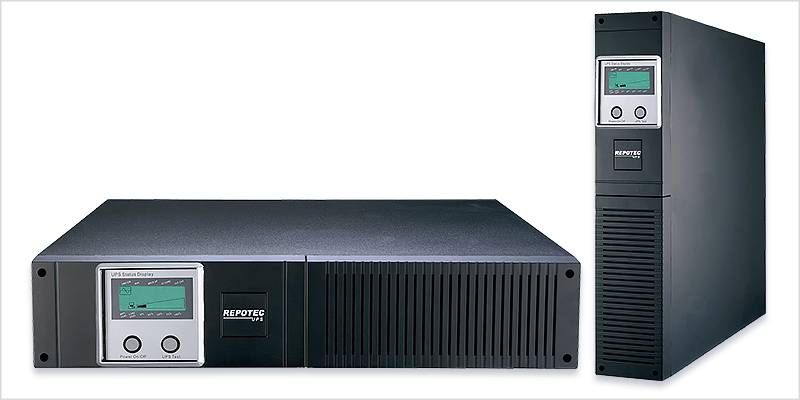

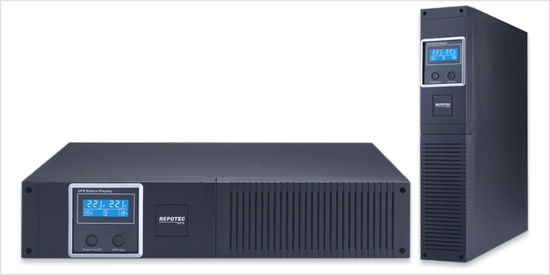

    • Rack / tower convertible design
    • Equipped with boost and buck AVR to stabilize utility voltage
    • Management software is designed to monitor and control UPS status
    • USB communication port and cable for managing functions via PC
    • Built-in DC start function enables UPS to be started without AC power supplied
    • Constant current, constant voltage battery charger (CCCV Battery Charger)
    • No-load shut down function (UPS Green mode)
    • UPS charges itself even though power switch is off (Off mode charging)
    • UPS shuts down upon battery low and restarts automatically upon AC recovery (Auto-restart)
    • Over / under voltage protection (UPS goes to battery mode)
    • Modem / phone line protection RJ-45
    • Lightning / surge protection 175 joules

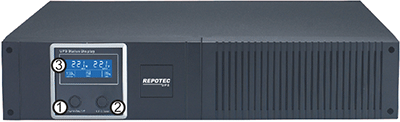

  • Front Panel
    1. Power On/Off Button: Turn on and turn off the UPS.
    2. UPS Test Button: When UPS is working on AC mode, it also activates the UPS’s self-test by press this button.
    3. LCD display

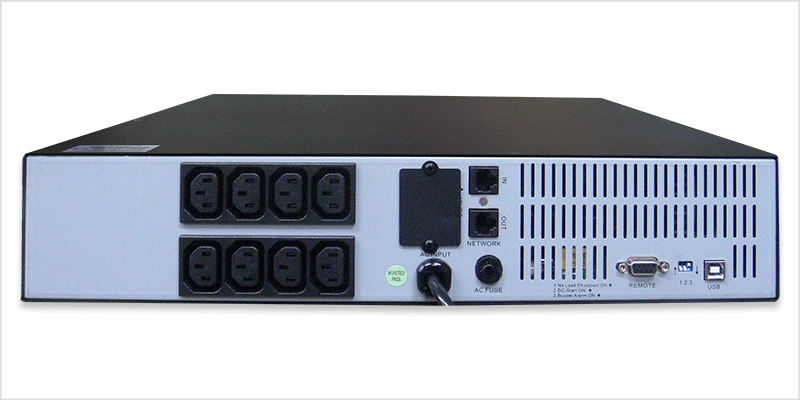

    Rear Panel

    IEC

    German

    Nema5-15R
    1. Backup/AVR outlets
    2. AC input power cord
    3. AC breaker
    4. Modem / phone / fax / internet line protection port
    5. Communication Interface Port:
      This port combines relay contact and RS-232 signal (Optional) on DB9 connector.
    6. Dip switch for UPS function setting
    7. USB communication port
    8. Surge protected outlets
    9. External battery connector



  • MODEL RPT-3130TR
    CAPACITY 3000VA/1800W
    INPUT
    Voltage 220/230/240Vac
    Voltage Range -25% +25%
    Frequency 50Hz or 60Hz +/- 5%
    OUTPUT
    Voltage Regulation Battery normal: 220/230/240Vac +/- 5%
    Frequency 50Hz or 60Hz +/- 1Hz
    Waveform Simulated Sinewave
    Transfer Time < 6ms(Typical)
    Outlet: IEC 8pcs with backup/AVR plus surge
    Outlet: IEC*4pcs + German*2pcs 6pcs with backup/AVR plus surge
    BATTERY
    Voltage 48VDC
    Type 12V/9AH*4pcs
    Recharge Time 5 hours to 90% after complete discharge
    Safety Protection Over Charge & Over Discharge Protection
    Advanced Battery Management Yes
    DISPLAY
    LCD Display Input voltage, Output voltage, Load level, Battery level, Fault, Overload,AC normal
    AUDIBLE ALARM
    Battery Mode Sounding every 3 seconds
    Low Battery Sounding every second
    Overload Continuous beeping sound
    Fault N/A
    MANAGEMENT
    Smart USB Communication Port Included, software supporting Windows 95/98/NT/2000/ME/XP/2003/Vista/7/8/10
    ENVIRONMENT
    Operating Temperature 0°C - 40°C (32°F-104°F)
    Humidity 0-95%, non-condensing
    Acoustic Noise <40 dB at 1M
    PHYSICAL
    Dimension(D*W*H) 530mm*19"*2U

    *Product specifications are subject to change without further notice.

  • RPT-3130TR 3000VA / 1800W Line Interactive UPS, w/ USB & DB9 port
