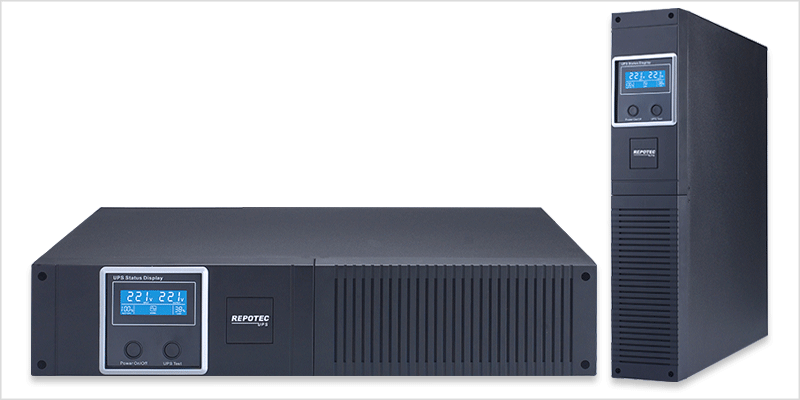

1000VA~2000VA Line Interactive UPS, Rack / Tower Type
Model: RPT-3210TR | RPT-3220TR
- Versatile Line Interactive UPS
- Rack mount or tower convertible design
- Comprehensive power protection
- Utilizes microprocessor control technology
- Built-in 2-step boost &1-step buck AVR regulators
- Stabilizes output voltage fluctuations
- Corrects abnormal voltages for device protection
- Handles complex power environments
- Built-in high-power surge absorber
- Filters electric wave interference
- Ultra-wide voltage and frequency input range
- LCD screen display for easy monitoring
RPT-3210TR series is a versatile Line Interactive UPS that can be mounted in a rack or used as a tower. It offers a convertible design, providing flexibility for different installation requirements. Designed to provide comprehensive power protection, the RPT-3210TR series utilizes microprocessor control technology to ensure exceptional reliability in safeguarding against potential power problems.
With its powerful capabilities, the RPT-3210TR series serves as an effective power supply solution, specifically designed to prevent data loss in servers or network equipment caused by power failures. Equipped with built-in 2-step boost and 1-step buck AVR regulators, this UPS stabilizes output voltage fluctuations and corrects abnormal voltages, effectively protecting connected devices. It is well-equipped to handle complex power environments, delivering a stable voltage across various input waveforms.
RPT-3210TR series features a built-in high-power surge absorber, providing reliable protection against lightning strikes and filtering out various forms of electric wave interference. Its ultra-wide voltage and ultra-wide frequency input acceptance range make it exceptionally capable of coping with harsh power conditions. By ensuring stable and reliable power, this UPS creates a safer power environment for your equipment. The inclusion of an LCD screen display allows users to easily monitor the status of the UPS, providing a convenient way to stay informed. With the RPT-3210TR series, you can trust that your equipment will remain safe even in unstable power environments.
- Controlled by a technologically advanced microprocessor guaranteeing high reliability
- Rack / tower convertible design
- Equipped with 2-steps boost & 1-step buck AVR to stabilize output voltage
- Provides lightning, surge, overload, and short-circuit protection
- Constant current, constant voltage battery charger (CCCV Battery Charger)
- UPS will shut down upon battery low ; UPS will restart automatically upon AC recovery (Auto-restart)
- Built-in DC start function enables UPS to be started without AC power supplied
- Tel / Modem / Fax / Internet surge suppression
- Management software is designed to monitor and control UPS status
- Built-in DC start function enables UPS to be started without AC power supplied

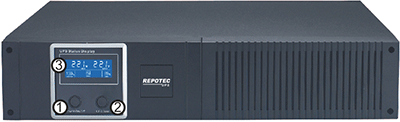

Front Panel
1. Master Power Switch: Turn on / off the UPS.
2. UPS test Switch: When UPS is working on AC mode, it also activates the UPS’s self-test by press this button.
3. LCD display

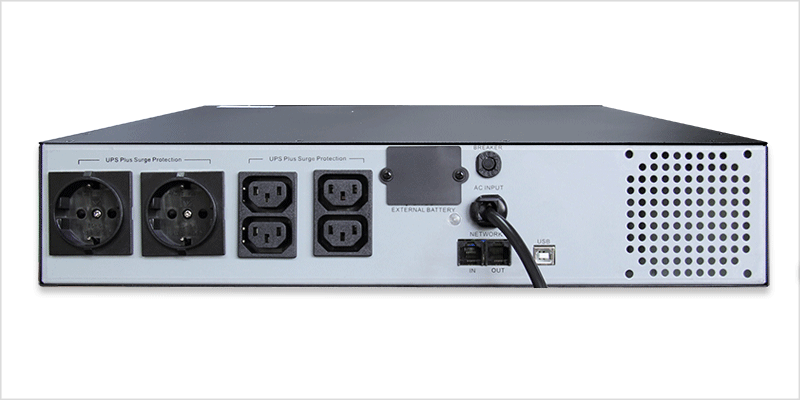

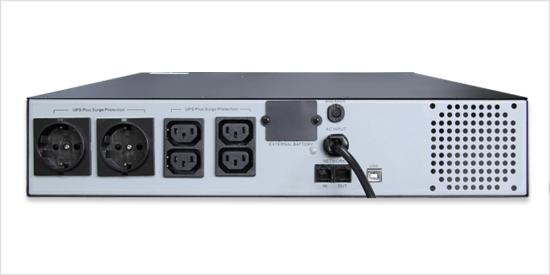

Rear Panel
1. Outlets
2. AC Input
3. AC breaker
4. Tel / Modem Spike Protection Port: Telecom transfer ports provide users to extend the applications.
5. Communication Interface Port: USB port
6. Surge Protection Only
7. External Battery Connector (Optional)
Model | RPT-3210TR | RPT-3220TR | |
Capacity | VA | 1000VA / 600W | 2000VA / 1200W |
Input | Voltage | 110/115/120VAC or 220/230/240VAC | |
Range | -30% +25% | ||
Frequency | 50/60Hz auto-sensing | ||
Output | Voltage (AC/Batt. Mode) | 110/115/120VAC or 220/230/240VAC +/-10% | |
Frequency (AC/Batt. Mode) | AC mode: 47-53Hz for 50Hz or 57-63Hz for 60Hz ;
Battery mode:50Hz or 60Hz +/- 1Hz |
||
Waveform | Simulated Sinewave | ||
Transfer Time | Less than 6ms (typical) | ||
European type + IEC-320 | European type * 2pcs + IEC * 4pc | ||
Nema 5-15R + Surge only | Nema5-15R * 6pcs with back-up + 2pcs surge only | ||
Battery | Battery Type | 12V/7AH *2PCS | 12V/9AH *2PCS |
Recharge Time | 5 hours to 90% after complete discharge | ||
Battery protection | Over Charge & Over Discharge Protection | ||
Advanced Battery Management | Yes | ||
Battery Back-up Time | It depends on connecting loads and external battery packs | ||
Function | Display (LCD) | I/P & O/P Voltage & Frequency, Load %, Battery % | |
Alarm | Buzzer on Back-up mode, Battery low, Overload | ||
Output Short Protection | AC fuse and Electronic circuit(Line mode);
Electronic circuit(Back-up mode) |
||
Communication Port (USB) | Shutdown Software for Windows | ||
Modem/Phone/ Protection | RJ-45 | ||
Lightning/Surge Protection | 175Joules | ||
AVR(Auto Voltage Regulation) | Boost/Buck | ||
DC start Function | Yes | ||
Auto. Restart UPS | Yes | ||
Over/Under Voltage Protection | Yes | ||
Safety Standard | LVD | CE(EN60950-1:2006+A11:2009+A1:2010+A12:2011 | |
EMC | CE(EN55022:2010 ; EN55024:2010) | ||
Environment | Operating Temperature | 0°C - 40°C (32°F~104°F), at full load | |
Relative Humidity | 0~95% relative humidity (non-condensing) | ||
Noise Level | Less than 40db (at 1 meter) | ||
Physical | Dimension, D*W*H | W440 x H88 x D347 | |
Net weight | 16kgs | 19kgs |
*Product specifications are subject to change without further notice.
RPT-3210TR | 1000VA / 600W Line Interactive UPS, w/ USB port |
RPT-3220TR | 2000VA / 1200W Line Interactive UPS, w/ USB port |
