10/100/1000Base-TX to 100/1000Base-X SFP Industrial PoE+ Media Converter

Model: RP-IMC811FP-60W

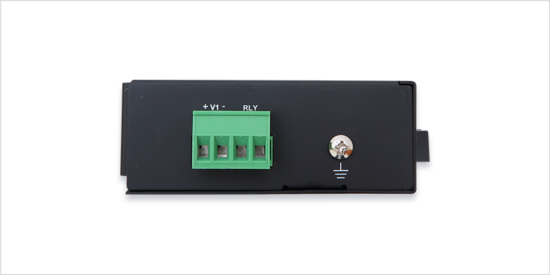

  • Dual 48V-56VDC Redundant Power Input
  • Configurable SFP Speed: 100M or 1000M
  • 60W PoE Output Power Support
  • Reverse Polarity Protection
  • Overload Current Protection
  • ESD Protection Diodes on RJ-45 Port
  • 2K MAC Address Table Capacity
  • 9KB Jumbo Frame Compatibility
  • Sturdy Aluminum IP30 Protective Enclosure
  • Operating Temperature Range: -40°C to +75°C

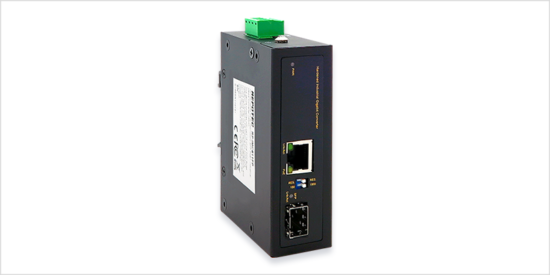

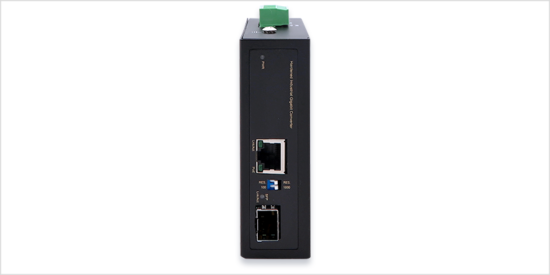

RP-IMC811FP-60W is an Industrial PoE Converter that stands out for its exceptional stability and environmental adaptability. This converter is equipped with a 10/100/1000BASE-T RJ45 copper port and a slot for a 100/1000BASE-X SFP module, offering versatile connectivity options to suit various network devices. It adheres to IEEE 802.3af/at standards, delivering a robust PoE power budget of up to 60W. The innovative Cold-Design not only efficiently powers the connected PD device but also minimizes excessive heat, ensuring optimal performance and device longevity.

Operating in a temperature range from -40 to 75°C, the RP-IMC811FP-60W can thrive in even the most challenging environments. This adaptability makes it a reliable solution for a wide range of applications, including scenarios with extreme temperature variations. Additionally, the IP30 industrial case protection provides a high level of immunity against corrosion and electromagnetic interference, enhancing the device's resilience. The converter's flexible installation options, allowing either DIN rail or wall mounting, make it an efficient space-utilizing choice for deployment in various industrial setups.

 RP-IMC811FP-60W combines adherence to PoE standards, a wide operating temperature range, industrial-grade protection, and versatile installation options. Its ability to maintain stable performance in demanding environments, coupled with efficient power delivery and space efficiency, makes it a valuable asset for critical applications where reliability, adaptability, and robustness are key requirements.

RP-IMC811FP-60W 10/100/1000Base-TX to 100/1000Base-X SFP Industrial PoE+ Media Converter (60W)
