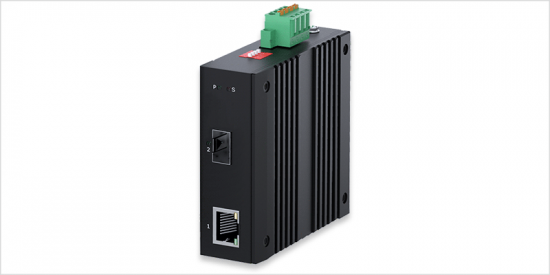

1-P 10/100/1000Base-T to 1-P 100/1000Base-X SFP slot Industrial PoE Media Converter
Model: RP-IMC3011FP
- 1x Gigabit PoE RJ45, 1x 1G SFP
- DC 44-57V redundant, polarity protection
- 802.3af/at compliant PoE
- Powerful DIP switch configuration
- 10K Jumbo frame, 1M buffer
- 4KV surge, ESD protection
- IP40, fan-less, Din-rail
- -40°C to +75°C temperature
RP-IMC3011FP is a compact and robust industrial-grade PoE media converter designed for efficient and reliable Ethernet networking in demanding environments. It features 1-port 10/100/1000-T PoE and 1-port 100/1000Base-X SFP, compliant with I IEEE802.3af/at PoE protocols, providing a maximum power consumption of 30W (PoE+). With convenient DIP switch configuration on the top panel, the device offers additional functionalities, including LFP, 100/1000M fiber port selection, 250m long-distance transmission support and PoE watchdog function.

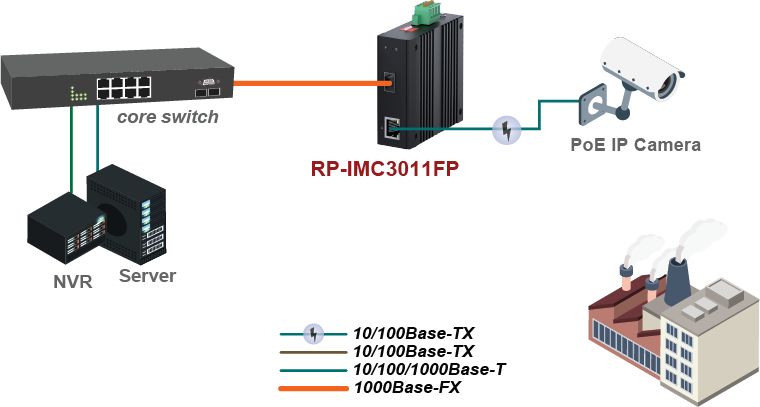

RP-IMC3011FP excels in cost-effectiveness and ease of use while delivering essential features for industrial networking. Its wide range power input of 44-57VDC, redundant power design with polarity reverse/over-voltage protection, and robust IP40 compact housing with DIN-rail installation make it suitable for heavy industrial factories, transportation, oil & gas, chemical, IP surveillance, and processing automation sectors.
RP-IMC3011FP operates in the range from -40℃ to 75℃ and boasts high-level EMI/EMC capabilities, ensuring its reliability even in environments that surpass commercial product specifications. RP-IMC3011FP offers a combination of powerful features and durable design, making it the ideal choice for industrial applications requiring secure and efficient Ethernet connectivity in harsh environmental conditions.
- 1*10/100/1000Base-T RJ45 PoE port, 1*100/1000Base-X SFP fiber port
- DC 44~57V input, redundant power supply with polarity reverse/over-voltage protection
- Complies with IEEE802.3af PoE and IEEE802.3at PoE+ standard
- Powerful DIP switch for setting LFP, Fiber port, distance and PoE watchdog
- Support 10K Bytes Jumbo frame and 1M large buffer
- Support 4KV surge protection and ESD: Air-15kV, Contact-8kV Protection
- IP40 fan-less and Din-rail hardware design with compact size
- Operation temperature: -40°C to +75°C
Standards |
|
Forwarding Capacity |
|
Switching Capacity |
|
MAC address table |
|
VLAN |
|
Buffer |
|
Jumbo Frame |
|
Forwarding delay |
|
Network Topology |
|
Interface |
|
LED indicators |
|
DIP Switch |
|
Reverse polarity protection |
|
Overload current protection |
|
Power Input |
|
Power Consumption |
|
Removable Terminal Block |
|
Environment |
|
Housing |
|
Dimension |
|
Installation method |
|
Safety |
|
EMC |
|
EMI |
|
EMS |
|
Vibration |
|
Shock |
|
Free Fall |
|
RP-IMC3011FP | 1-P 10/100/1000Base-T to 1-P 100/1000Base-X SFP slot Industrial PoE Media Converter |
