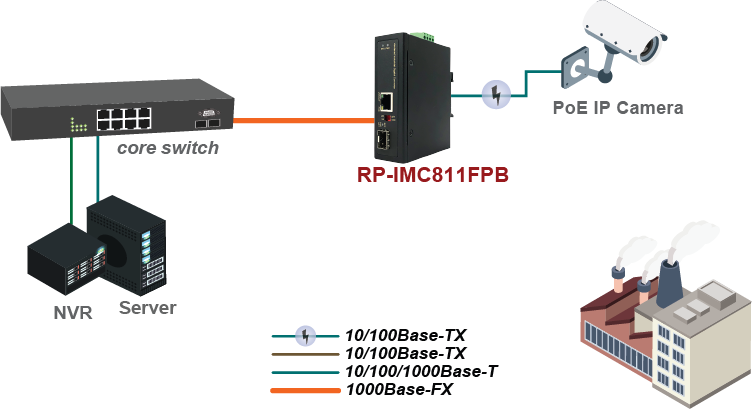

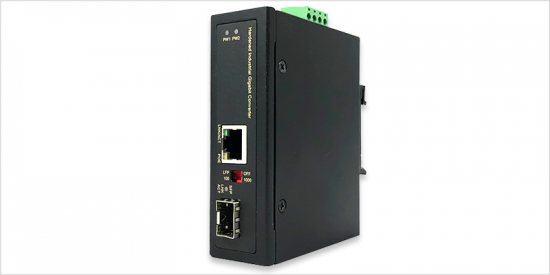

RP-IMC811FPB

• IEEE 802.3 10Base-T Ethernet,
• IEEE 802.3u 100Base-TX Fast Ethernet
• IEEE 802.3ab 1000Base-T Gigabit Ethernet
• IEEE 802.3z 1000Base-X Gigabit Ethernet
• IEEE802.3x Flow Control and Back Pressure
• IEEE802.3af/at PoE

• Back-plane (Switching Fabric): 4Gbps

• Ports speed are the same: Converter mode
• Ports speed are not the same: Switch mode (store and forward)

• IEEE 802.3x Flow Control and Back Pressure

• 1K

• 16KB

• 512Kbits

• 1x RJ-45 10/100/1000BaseT(X) PSE with PoE Output power up to 30Watts
• 1x 100/1000M SFP slot

• UTP/STP above Cat.5e Cable
• EIA/TIA-568 10-ohm (100m)
• Fiber Cable (Multi-mode):50/125um,62.5/125um
  Fiber Cable (Single-mode): 9/125um

• CSMA/CD

• 30 watts 2 pairs Mode A End Span
  V+, V+, V-, V- for pin 1, 2, 3, 6

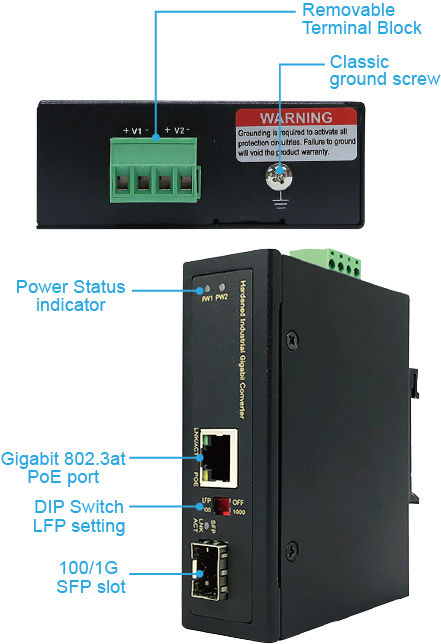

• PW1 (Green), PW2(Green)
• SFP Lnk/Act (Green)
• RJ-45: Lnk/Act (Green), PoE (Amber)

• DIP1: Set LFP disabled (Default) / enabled
• DIP2: Set SFP speed 1000M (Default) or 100M

Link Fault Pass Through (LFP) is when copper side signal lost or disconnect, fiber side link signal will actively off, when fiber side signal lost or disconnect, copper side link signal will also actively off.

• Present

• Present

• Redundant Dual DC 48V-56V Power Input

• 3Watts @48VDC full load without PoE

Terminal Block

• 4 pin contact terminal block for power input
• Wire range : 0.34mm^2 to 2.5mm^2
• Solid wire (AWG) : 12-24/14-22
• Stranded wire (AWG) : 12-24/14-22
• Wire Strip length: 7-8mm
• Torque: 5lb-In/0.5Nm/0.56Nm

• Operating temperature: -40°C~75°C
• Storage temperature: -40°C ~85°C
• Operating Humidity: 5% to 95% (Non-Condensing)

• Rugged Aluminum, IP30 Protection

• 103.5 x 32 x 81.5mm (LxWxD)

• DIN Rail mounting and Wall Mounting

• IEC EN60950-1

• CE, FCC, EN 55032/24

• FCC Part 15 Subpart B Class A, CE EN 55022 Class A

• IEC 61000-4-2 ESD: Contact: 6KV; Air: 8KV
• IEC 61000-4-4 EFT: Power: 2KV; Signal: 2KV
• IEC 61000-4-5 Surge: Power: 2KV; Signal: 2KV

• EN 50155 / EN 60068-2-6

• EN 50155 / EN 60068-2-27

• EN 50155 / EN 60068-2-32
