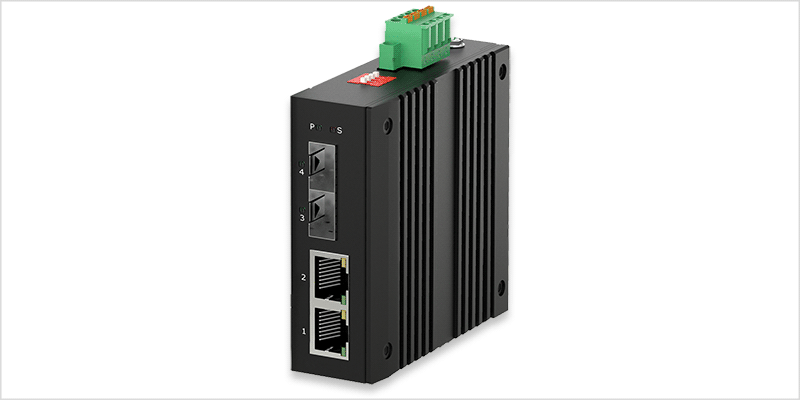

2-P 10/100/1000Base-T + to 2-P 100/1000Base-X Compact Industrial PoE Media Converter
Model: RP-IMC322FP
- 2 RJ45 PoE & 2 SFP Ports
- Input Redundant Power DC 44-57V
- Compliant with 802.3af/at standards
- DIP for Fiber Redundancy, Speed Selection, Long Range, PoE Watchdog.
- 10K BytesJumbo Frame, 1M Buffer.
- 4KV Surge, ESD: Air-15kV, Contact-8kV
- IP40 cabinet, DIN Rail design
RP-IMC322FP Industrial PoE Media Converter is equipped with 802.3af/at 30W Gigabit PSE ports and 2 port 100M/1000M SFP, providing input power voltage 44~57VDC. It delivers 30watts power per PoE port and generates a total of 60Watts power to PD devices, and 2 SFP for long-distance Fiber Uplink.

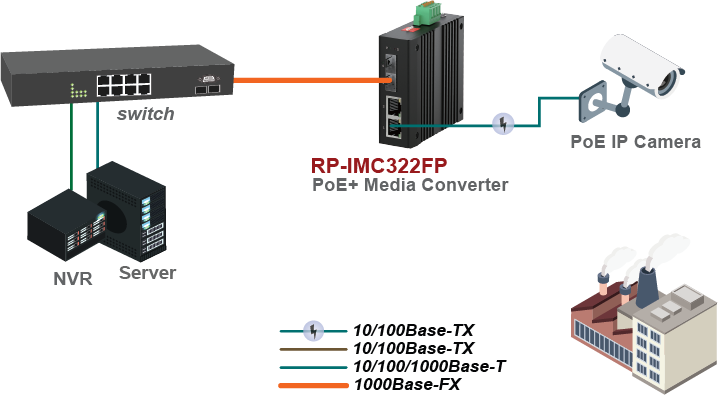

RP-IMC322FP features with fiber redundant, fiber ports 100/1000M selection and PoE watchdog function, which all can be configured by the DIP switch on the top panel. RP-IMC322FP is a high cost-effective easy-to-use device, which provides redundant power design with polarity reverse/over-voltage protection, It is the best choice for heavy industrial factory, transportation, oil & gas, chemical, IP Surveillance and processing automation area where environmental conditions exceed commercial product specifications
RP-IMC322FP operates in the range from -40°C to 75°C, ensuring its reliability even in environments that surpass commercial product specifications. RP-IMC322FP offers a combination of powerful features and durable design, making it the ideal choice for industrial applications requiring secure and efficient Ethernet connectivity in harsh environmental conditions.
- 2*10/100/1000Base-T RJ45 PoE ports, 2*100/1000Base-X SFP ports
- DC 44~57V input, redundant power supply with polarity reverse/over-voltage protection
- Complies with IEEE802.3af PoE and IEEE802.3at PoE+ standard

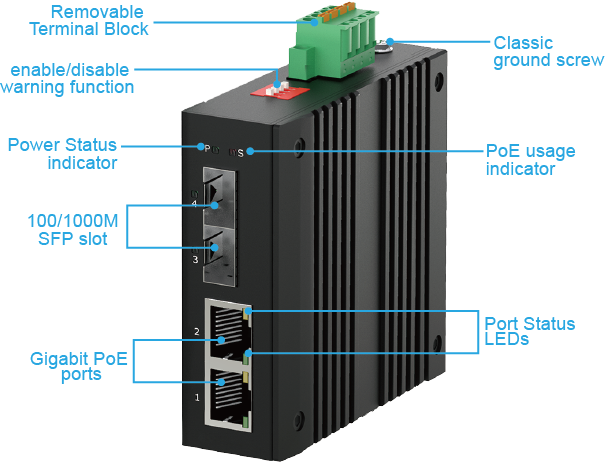

- Powerful DIP switch function:
Dip1.Fiber redundant;
Dip2. Fiber ports 100/1000M selection;
Dip3.250m long distance based on 10M;
Dip4. PoE watchdog - Support 10K Bytes Jumbo frame and 1M large buffer
- Support 4KV surge protection and ESD: Air-15kV, Contact-8kV Protection
- IP40 rated rugged compact case protection, Din-rail design
- Operation temperature: -40°C ~+75°C
Standards |
|
Forwarding Capacity |
|
Switching Capacity |
|
Buffer |
|
Jumbo Frame |
|
Forwarding delay |
|
VLAN |
|
Interface |
|
LED indicators |
|
DIP Switch |
|
Reverse polarity protection |
|
Overload current protection |
|
Power Input |
|
Power Consumption |
|
PoE power budget |
|
Removable
Terminal Block |
|
Environment |
|
Housing |
|
Dimension |
|
Installation method |
|
Safety |
|
EMC |
|
EMI |
|
EMS |
|
Vibration |
|
Shock |
|
Free Fall |
|
RP-IMC322FP | 2-P 10/100/1000Base-T to 2-P 100/1000Base-X SFP slot Industrial PoE+ Media Converter |
