RP-IMC801FP

RP-IMC801FP
10/100/1000Base-TX to 100/1000Base-X SFP Industrial Media Converter

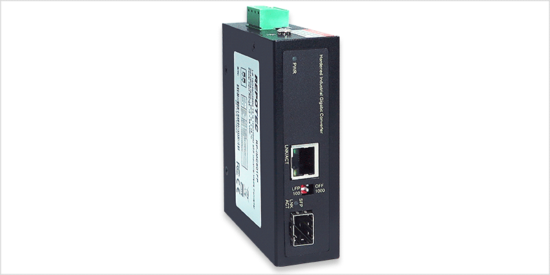

  • RP-IMC801FP is an Industrial Converter providing superior performance in stability, environmental adaptability. It equips with one 10/100/1000BASE-T RJ45 copper and one slot for 100/1000BASE-X SFP.

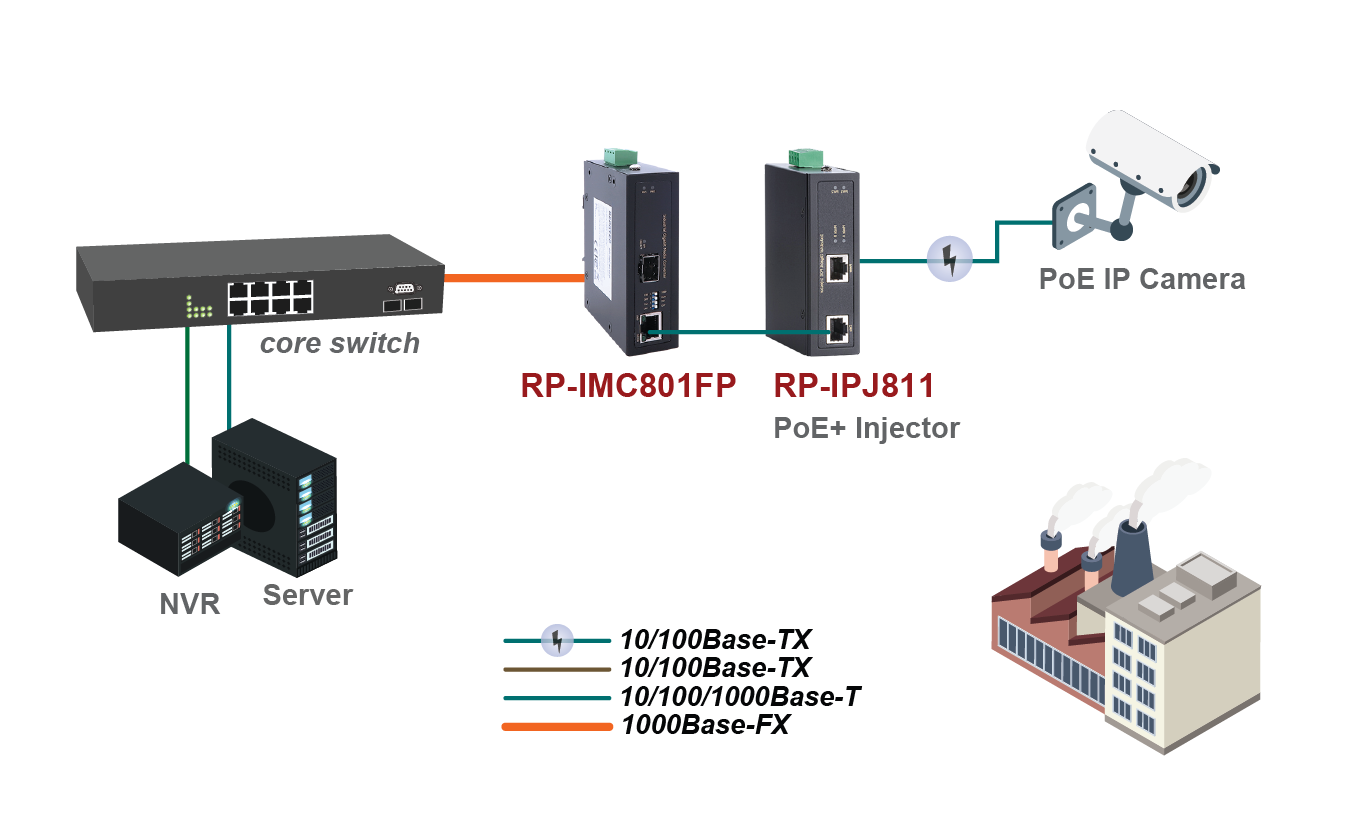

    The RP-IMC801FP is designed for Security, Transportation and Telco applications to extend your network distances. It can be powered by wide range of VDC 12V-56VDC. It is an ideal unit for IP surveillance, traffic monitoring and Security applications in critical environment. The operating temperature range is from -40 to 75 Degree C in harsh environment to perform a reliable network.

    With IP30 industrial case protection, the RP-IMC801FP provides a high level of immunity against corrosion and electromagnetic interference.RP-IMC801FP also allows either DIN rail or wall mounting for efficient use of cabinet space.

    • Rugged design enclosure.
    • Supports 12V-56VDC, Redundant power input
    • Supports Link Fault Pass through (LFP) function
    • Supports automatically switch mode and converter mode
    • Adjustable SFP speed 100M or 1000M
    • Surge protection on power input
    • ESD protection on RJ-45 port
    • Provides Far End Fault function on FX port
    • Provides increased Noise Immunity
    • Extended environmental specification  -40°C to 75°C

  • Standards
    • IEEE 802.3 10Base-T Ethernet
    • IEEE 802.3u 100Base-TX Fast Ethernet
    • IEEE 802.3ab 1000Base-T Gigabit Ethernet
    • IEEE 802.3z 1000Base-X Gigabit Ethernet
    Switch Architecture
    • Back-plane (Switching Fabric): 4Gbps
    Data Processing
    • Store and Forward
    Flow Control
    • IEEE 802.3x Flow Control and Back Pressure
    Jumbo Frame
    • 16KB

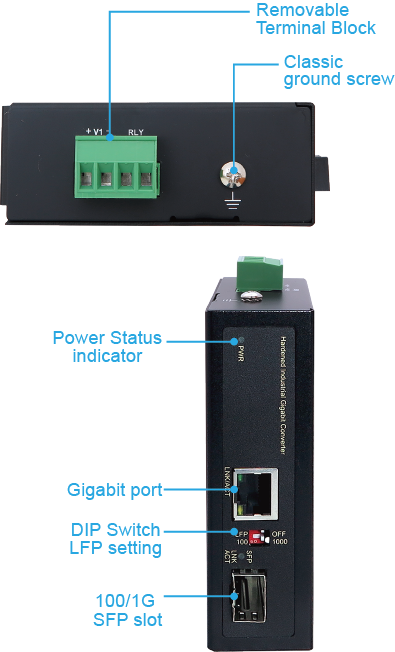

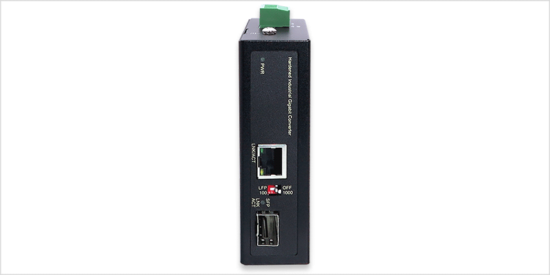

    Interface
    • 1 x RJ-45 10/100/1000 Base-T(X)
      Auto MDI/MDI-X function, Full/Half duplex
    • 1 x 100/1000 BaseF(X) SFP
    Network Cable
    • UTP/STP above Cat.5e Cable
    • EIA/TIA-568 10-ohm (100m)
    Protocol
    • CSMA/CD
    LED indicators
    • PWR (Green)
    • TX LNK/ACT (Green)
    • SFP LNK/ACT (Green)
    DIP Switch
    • DIP1: LFP disabled / enabled
    • DIP 2: SFP speed 1000M / 100M
    • Link Fault Pass Through (LFP) is when copper side signal lost or disconnect, fiber side link signal will actively off, when fiber side signal lost or disconnect, copper side link signal will also actively off.
    Reverse polarity protection
    • Present
    Overload current protection
    • Present

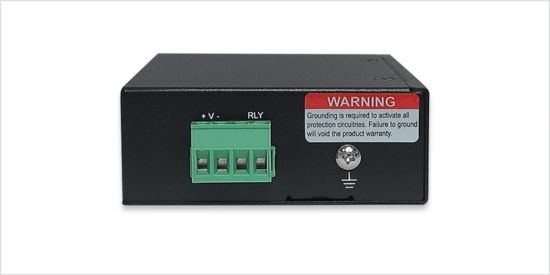

    Power Supply
    • 4 pin terminal block with 12V-56V VDC Power Input
    • Relay: Relay switch for alarm
    Alarm Relay Contact
    • Relay outputs with current carrying capacity of 1 A @24VDC,
    • Relay in short circuit mode when power fails.  in open circuit mode when power supply is connected
    Power Consumption
    • 3Watts @48VDC full load
    Removable Terminal Block
    • Provide 4 pin terminal block
    • Wire range: 0.34mm^2 to 2.5mm^2
    • Solid wire (AWG):12-24/14-22
    • Stranded wire (AWG): 12-24/14-22
    • Torque:5lb-In/0.5Nm/0.56Nm
    • Wire Strip length: 7-8mm
    Operating Temperature
    • -40℃~75℃
    Operating Humidity
    • 5% to 95% (Non-condensing)
    Storage Temperature
    • -40℃~85℃
    Housing
    • Rugged Metal, IP30 Protection
    Dimension
    • 103.5mmx32mmx81.5mm (LxWxD)
    Installation mounting
    • DIN Rail and Wall Mount
    Safety
    • IEC EN60950-1
    EMC
    • CE, FCC, EN 55032/24
    EMI
    • CISPR 32, FCC Part 15B Class A
    EMS
    • IEC 61000-4-2 ESD: Contact: 6KV; Air: 8KV
    • IEC 61000-4-4 EFT: Power: 2KV; Signal: 2KV
    • IEC 61000-4-5 Surge: Power: 2KV; Signal: 2KV
    Stability Testing
    • EN 60068-2-6 (Vibration), EN 60068-2-27(Shock), EN 60068-2-32(Free Fall)

  • RP-IMC801FP  10/100/1000Base-TX to 100/1000Base-X SFP Industrial Media Converter
