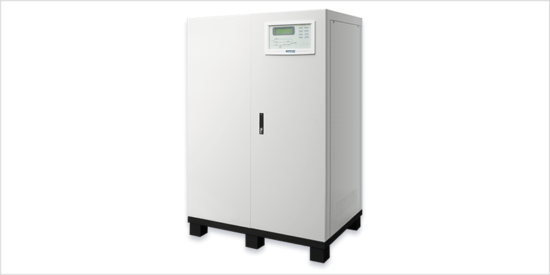

80KVA ~ 160KVA 3-Phase Input / 3-Phase Output True Galvanic Isolation On-Line UPS
Model: RP-UPL3080V series
- Designed for 3-phase power
- 80KVA-160KVA capacities
- Advanced PWM, DSP, IGBT tech
- True galvanic isolation
- Reliable multi-CPU design
- Plug & play modular maintenance
- Individual inverters for load stability
- Protection, intelligent battery charging
- Intelligent fan control, noise reduction
- Reliable in harsh environments
- Cool start, accessories, hot-swappable batteries
- Built-in AVR, surge suppression
- Communication capabilities, compact design
RP-UPL3080V series is a high-performance, galvanically isolated, online UPS range designed for demanding 3-phase power applications. With power capacities from 80KVA to 160KVA, this series provides reliable and efficient DC to AC power conversion. It utilizes advanced technologies like PWM, DSP, and IGBT switching components to achieve high-frequency and highly efficient power conversion, effectively handling various loads.
The RP-UPL3080V series offers standout features, including true galvanic isolation for addressing power system challenges and enhancing stability. It employs a reliable multi-CPU design for continuous operation, even in case of CPU failure. The plug & play modular design allows for easy maintenance, with quick power circuit removal for efficient repairs and minimal downtime.
RP-UPL3080V series ensures load stability under unbalanced conditions with individual inverters for each phase. It provides protection against neutral detachment, extends battery life with intelligent charging, and reduces noise with intelligent fan control. The UPS operates reliably in harsh environments and offers additional features like a cool start function, various accessories, hot-swappable batteries, built-in AVR, surge suppression, and communication capabilities via the RS232 port.
The RP-UPL3080V series is a reliable solution for critical power applications, offering advanced technologies and intelligent features. It handles unbalanced loads, ensures continuous operation during CPU failure, and maintains safety in harsh environments. With its compact design and plug & play modular features, it provides a complete and efficient power solution.
- Advanced technology of PWM, DSP and IGBT switching components Designed to use a high frequency, highly efficiency DSP/IGBT and PWM technology in converting DC to AC power.
- True Galvanic isolation design Solve ultimately the problem of power system, including noise, lightning, and leakage current etc.
- Multi-CPU design and software/hardware cooperate control Make the system extremely high reliable.
- Plug & Play modular design To allow for each power circuit to be easily removed for quick maintenance and troubleshooting.
- Each phase with individual inverter supporting Characteristics will not be violated under 100% unbalance load.
- Protection against detaching and floating of the neutral of input power supply Ensure the safety and stability of the UPS power output.
- Protection from user error Advanced circuitry prohibits damage to the system when the user makes an operational mistake.
- Intelligent charger with temperature compensation prolongs the battery life expectancy. And with huge charging power (selectable), can charge very big capacity, long back-up time battery bank.
- Intelligent speed control of fan increases the life expectancy of fan and reduce noise.
- Intelligent fan speed control Increase the fan life expectancy and reduce audible noise.
- Reasonable heat evacuation passage design Main PCBs are designed in a holder to separate the control circuitry and power circuitry. Therefore, the UPS system can operate under harsh environment.
- Cool start function can be started without AC mains (with battery only) and protected from high inrush current.
- Variety of accessory (options) Remote control panel, 3 phases software for PC monitoring, auto dialing module, battery monitoring module, 3 phases SNMP card, and emergency power-off switch are available.
- Microprocessor design base
- Mini- remote control panel (option)
- Multiple output sockets
- Minimum foot print area design, light weight
- Built-In AVR for wider input range
- Auto re-charging whenever AC exist.
- Hot swappable battery by users
- RS232 communication port
- Tel/modem internet surge suppression
- DC Start function
- Green power function
- Auto detecting frequency 12-Pu
PHASE | 3-Phase Input / 3-Phase Output | ||||
KVA | 80 | 100 | 120 | 160 | |
INPUT (RECTIFIER) | |||||
Input Voltage | 220VΔ / 380VΔ / 460VΔ, 208VY / 380VY / 400VY / 415VY | ||||
Input Range | + / - 20% ( > +/- 20% is available upon request) | ||||
Input Frequency | 50 / 60 Hz + / - 5Hz | ||||
Power Walk In | 0% - 100% : 20 sec | ||||
Efficiency | ≒ 98% | ||||
Voltage Regulation | + / - 1% | ||||
BATTERY | |||||
Battery Type / Pcs | Maintenance free lead-acid batteries / 12V x 29pcs | ||||
Battery Start | Yes, UPS can be started without AC source. | ||||
INVERTER | |||||
Output Voltage | 220VΔ / 380VΔ / 460VΔ, 208VY / 380VY / 400VY / 415VY, + / - 1 % | ||||
Wave Form | Sine Wave | ||||
Output Power Factor | 0.8 | ||||
Frequency Lock Range | 50 / 60 Hz + / - 3Hz | ||||
Output Frequency (Free Running) |
50 / 60 Hz + / - 0.1 Hz | ||||
Phase Shift Under 100% Unbalance Load |
< 0.5° | ||||
THD (Linear Load) | < 2 % | ||||
Overload | <110% | Continuous | |||
110 – 125% | 15 minutes | ||||
125 – 150% | 10 minutes | ||||
> 150% | 30 seconds | ||||
Efficiency (100% Load) | 94.5% | 94.5% | 95% | 95% | |
STATIC SWITCH | |||||
Voltage Range | 173-277 VAC (L-N) | ||||
Mains ←→ Inverter | 0 ms | ||||
OVERALL CHARACTERISTICS | |||||
Overall Efficiency | 92.5% | 92.5% | 93% | 93% | |
Maximum Heat Dissipation (Kw) |
4.6 | 5.4 | 6.5 | 8.7 | |
Height x Width x Depth (mm) | 80-160KVA: 1600 x 1100 x 800 | ||||
Weight (Kg, without battery) (for standard 380V Y input only) |
820 | 950 | 1180 | 1450 | |
Audible Noise | < 67 dBA (At 1 M) | ||||
Temperature | 0 – 40℃ ( 32 – 104℉ ) | ||||
Humidity | 0% - 90% (Non–Condensing) | ||||
Altitude | <1500 M Above Sea Level | ||||
EN50091-1,-2 | YES | ||||
Short Circuit Pretection | YES | ||||
Lightning / EMC Filter | MOV / Input&Output (FCC CLASS A) | ||||
Galvanic Isolation | Input&Output true Galvanic isolation | ||||
LED,LCD,Buzzer | YES | ||||
Remote Control / Communication Interface |
Monitoring 1~99 UPS simultaneously / Dry contact, RS232, RS485 |
*Product specifications are subject to change without further notice.
RP-UPL3080V | 80KVA 3-Phase Input / 3-Phase Output True Galvanic Isolation On-Line UPS |
RP-UPL3100V | 100KVA 3-Phase Input / 3-Phase Output True Galvanic Isolation On-Line UPS |
RP-UPL3120V | 120KVA 3-Phase Input / 3-Phase Output True Galvanic Isolation On-Line UPS |
RP-UPL3160V | 160KVA 3-Phase Input / 3-Phase Output True Galvanic Isolation On-Line UPS |
