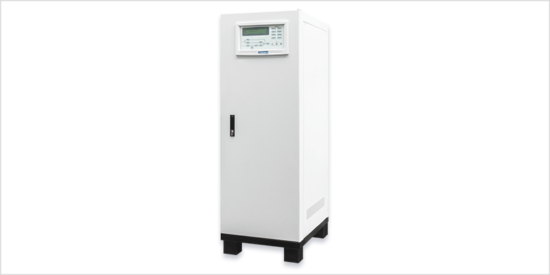

10KVA ~ 60KVA 3-Phase Input / 3-Phase Output True Galvanic Isolation On-Line UPS
Model: RP-UPL3010V series
- High-quality galvanic UPS
- 3-phase input/output, 10KVA-60KVA
- Advanced power conversion
- Comprehensive protection
- Modular design for maintenance
- True galvanic isolation for safety
- Reliable multi-CPU design
- Stable under unbalanced load
- Intelligent charger, long backups
- Wide range of accessories
- Intelligent fan control for harsh environment.
- Compact footprint, space-saving
- Built-in AVR, hot-swappable batteries
- Surge suppression, communication capabilities.
RP-UPL3010V series is a high-quality range of 3-phase input/3-phase output True Galvanic Isolation On-Line UPS systems (10KVA to 60KVA). RP-UPL3010V series use advanced technologies for efficient power conversion, comprehensive protection features, and a plug & play modular design for easy maintenance.
The RP-UPL3010V series features True Galvanic isolation design for protection and stable power output. It has a multi-CPU design for reliability and uninterrupted power supply. Each phase has its own inverter for stability under unbalanced load conditions. The series includes an intelligent charger for extended battery life and supports large capacity battery banks for long backups.
The RP-UPL3010V series offers a wide range of accessories and options to enhance functionality. It features intelligent fan speed control, reliable operation in harsh environments, and a compact footprint. Other notable features include built-in AVR, hot-swappable batteries, surge suppression, and communication capabilities. The RP-UPL3010V series provides a comprehensive and reliable 3-phase power backup solution with advanced technologies and galvanic isolation design.
- Advanced technology of PWM, DSP and IGBT switching components Designed to use a high frequency, highly efficiency DSP/IGBT and PWM technology in converting DC to AC power.
- True Galvanic isolation design Solve ultimately the problem of power system, including noise, lightning, and leakage current etc.
- Multi-CPU design and software/hardware cooperate control Make the system extremely high reliable.
- Plug & Play modular design To allow for each power circuit to be easily removed for quick maintenance and troubleshooting.
- Each phase with individual inverter supporting Characteristics will not be violated under 100% unbalance load.
- Protection against detaching and floating of the neutral of input power supply Ensure the safety and stability of the UPS power output.
- Protection from user error Advanced circuitry prohibits damage to the system when the user makes an operational mistake.
- Intelligent charger with temperature compensation prolongs the battery life expectancy. And with huge charging power (selectable), can charge very big capacity, long back-up time battery bank.
- Intelligent speed control of fan increases the life expectancy of fan and reduce noise.
- Reasonable heat evacuation passage design Main PCBs are designed in a holder to separate the control circuitry and power circuitry. Therefore, the UPS system can operate under harsh environment.
- Cool start function can be started without AC mains (with battery only) and protected from high inrush current.
- Variety of accessory (options) Remote control panel, 3 phases software for PC monitoring, auto dialing module, battery monitoring module, 3 phases SNMP card, and emergency power-off switch are available.
- Microprocessor design base
- Mini- remote control panel (option)
- Multiple output sockets
- Minimum foot print area design, light weight
- Built-In AVR for wider input range
- Auto re-charging whenever AC exist.
- Hot swappable battery by users
- RS232 communication port
- Tel/modem internet surge suppression
- DC Start function
- Green power function
- Auto detecting frequency 12-Pu
PHASE | 3-Phase Input / 3-Phase Output | |||||||
KVA | 10 | 15 | 20 | 30 | 40 | 50 | 60 | |
INPUT (RECTIFIER) | ||||||||
Input Voltage | 220VΔ / 380VΔ / 460VΔ, 208VY / 380VY / 400VY / 415VY | |||||||
Input Range | + / - 20% ( > +/- 20% is available upon request) | |||||||
Input Frequency | 50 / 60 Hz + / - 5Hz | |||||||
Power Walk In | 0% - 100% : 20 sec | |||||||
Efficiency | ≒ 98% | |||||||
Voltage Regulation | + / - 1% | |||||||
BATTERY | ||||||||
Battery Type / Pcs | Maintenance free lead-acid batteries / 12V x 29pcs | |||||||
Battery Start | Yes, UPS can be started without AC source. | |||||||
INVERTER | ||||||||
Output Voltage | 220VΔ / 380VΔ / 460VΔ, 208VY / 380VY / 400VY / 415VY, + / - 1 % | |||||||
Wave Form | Sine Wave | |||||||
Output Power Factor | 0.8 | |||||||
Frequency Lock Range | 50 / 60 Hz + / - 3Hz | |||||||
Output Frequency (Free Running) |
50 / 60 Hz + / - 0.1 Hz | |||||||
Phase Shift Under 100% Unbalance Load |
< 0.5° | |||||||
THD (Linear Load) | < 2 % | |||||||
Overload | <110% | Continuous | ||||||
110 – 125% | 15 minutes | |||||||
125 – 150% | 10 minutes | |||||||
> 150% | 30 seconds | |||||||
Efficiency (100% Load) | 93% | 93% | 93% | 93% | 93.5% | 93.5% | 94% | |
STATIC SWITCH | ||||||||
Voltage Range | 173-277 VAC (L-N) | |||||||
Mains ←→ Inverter | 0 ms | |||||||
OVERALL CHARACTERISTICS | ||||||||
Overall Efficiency | 91% | 91% | 91% | 91% | 91.5% | 92% | 92% | |
Maximum Heat Dissipation (Kw) |
0.7 | 1.1 | 1.3 | 1.9 | 2.6 | 3 | 3.5 | |
Height x Width x Depth (mm) | 1600 x 550 x 800 | |||||||
Weight (Kg, without battery) (for standard 380V Y input only) |
270 | 300 | 350 | 400 | 480 | 550 | 680 | |
Audible Noise | < 65 dBA (At 1 M) | |||||||
Temperature | 0 – 40℃ ( 32 – 104℉ ) | |||||||
Humidity | 0% - 90% (Non–Condensing) | |||||||
Altitude | <1500 M Above Sea Level | |||||||
EN50091-1,-2 | YES | |||||||
Short Circuit Protection | YES | |||||||
Lightning / EMC Filter | MOV / Input&Output (FCC CLASS A) | |||||||
Galvanic Isolation | Input&Output true Galvanic isolation | |||||||
LED,LCD,Buzzer | YES | |||||||
Remote Control / Communication Interface |
Monitoring 1~99 UPS simultaneously / Dry contact, RS232, RS485 |
*Product specifications are subject to change without further notice.
RP-UPL3010V | 10KVA 3-Phase Input / 3-Phase Output True Galvanic Isolation On-Line UPS |
RP-UPL3020V | 20KVA 3-Phase Input / 3-Phase Output True Galvanic Isolation On-Line UPS |
RP-UPL3030V | 30KVA 3-Phase Input / 3-Phase Output True Galvanic Isolation On-Line UPS |
RP-UPL3040V | 40KVA 3-Phase Input / 3-Phase Output True Galvanic Isolation On-Line UPS |
RP-UPL3050V | 50KVA 3-Phase Input / 3-Phase Output True Galvanic Isolation On-Line UPS |
RP-UPL3060V | 60KVA 3-Phase Input / 3-Phase Output True Galvanic Isolation On-Line UPS |
