RP-UPL3200V series

RP-UPL3200V series

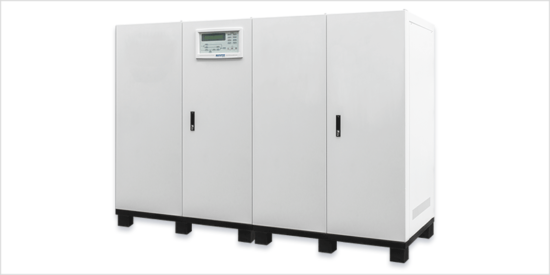

200KVA ~ 320KVA 3-Phase Input / 3-Phase Output True Galvanic Isolation On-Line UPS

    • Advanced technology of PWM, DSP and IGBT switching components Designed to use a high frequency, highly efficiency DSP/IGBT and PWM technology in converting DC to AC power.
    • True Galvanic isolation design Solve ultimately the problem of power system, including noise, lightning, and leakage current etc.
    • Multi-CPU design and software/hardware cooperate control Make the system extremely high reliable.
    • Plug & Play modular design To allow for each power circuit to be easily removed for quick maintenance and troubleshooting.
    • Each phase with individual inverter supporting Characteristics will not be violated under 100% unbalance load.
    • Protection against detaching and floating of the neutral of input power supply Ensure the safety and stability of the UPS power output.
    • Protection from user error Advanced circuitry prohibits damage to the system when the user makes an operational mistake.
    • Intelligent charger with temperature compensation prolongs the battery life expectancy. And with huge charging power (selectable), can charge very big capacity, long back-up time battery bank.
    • Intelligent speed control of fan increases the life expectancy of fan and reduce noise.
    • Intelligent fan speed control Increase the fan life expectancy and reduce audible noise.
    • Reasonable heat evacuation passage design Main PCBs are designed in a holder to separate the control circuitry and power circuitry. Therefore, the UPS system can operate under harsh environment.
    • Cool start function can be started without AC mains (with battery only) and protected from high inrush current.
    • Variety of accessory (options) Remote control panel, 3 phases software for PC monitoring, auto dialing module, battery monitoring module, 3 phases SNMP card, and emergency power-off switch are available.
    • Microprocessor design base
    • Mini- remote control panel (option)
    • Multiple output sockets
    • Minimum foot print area design, light weight
    • Built-In AVR for wider input range
    • Auto re-charging whenever AC exist.
    • Hot swappable battery by users
    • RS232 communication port
    • Tel/modem internet surge suppression
    • DC Start function
    • Green power function
    • Auto detecting frequency 12-Pu

  • PHASE 3-Phase Input / 3-Phase Output
    KVA 240 320
     INPUT (RECTIFIER) 　
    Input Voltage 220VΔ / 380VΔ / 460VΔ, 208VY / 380VY / 400VY / 415VY
    Input Range  + / - 20% ( > +/- 20% is available upon request)
    Input Frequency 50 / 60 Hz + / - 5Hz
    Power Walk In 0% - 100% : 20 sec
    Efficiency ≒ 98%
    Voltage Regulation  + / - 1%
     BATTERY
    Battery Type / Pcs Maintenance free lead-acid batteries / 12V x 29pcs
    Battery Start Yes, UPS can be started without AC source.
     INVERTER
    Output Voltage 220VΔ / 380VΔ / 460VΔ, 208VY / 380VY / 400VY / 415VY, + / - 1 %
    Wave Form Sine Wave
    Output Power Factor 0.8
    Frequency Lock Range 50 / 60 Hz + / - 3Hz
    Output Frequency
    (Free Running)    		 50 / 60 Hz + / - 0.1 Hz
    Phase Shift Under 100%
    Unbalance Load    		 <  0.5°
    THD (Linear Load) < 2 %
    Overload <110% Continuous
    110 – 125% 15 minutes
    125 – 150% 10 minutes
    > 150% 30 seconds
    Efficiency (100% Load) 95% 95%
     STATIC SWITCH
    Voltage Range 173-277 VAC (L-N)
    Mains ←→ Inverter 0 ms
     OVERALL CHARACTERISTICS
    Overall Efficiency 93% 93%
    Maximum Heat
    Dissipation (Kw)    		 13 17.4
    Height x Width x Depth (mm) 240-320KVA: 1600 x 2200 x 800
    Weight (Kg, without battery)
    (for standard 380V Y input only)    		 1950 2450
    Audible Noise < 67 dBA  (At 1 M)
    Temperature 0 – 40℃ ( 32 – 104℉ )
    Humidity 0% - 90% (Non–Condensing)
    Altitude <1500 M Above Sea Level
    EN50091-1,-2 YES
    Short Circuit Pretection YES
    Lightning / EMC Filter MOV / Input&Output (FCC CLASS A)
    Galvanic Isolation Input&Output true Galvanic isolation
    LED,LCD,Buzzer YES
    Remote Control /
    Communication Interface    		 Monitoring 1~99 UPS simultaneously / Dry contact,  RS232, RS485

    *Product specifications are subject to change without further notice.

  • RP-UPL3200V 200KVA 3-Phase Input / 3-Phase Output True Galvanic Isolation On-Line UPS
    RP-UPL3240V 240KVA 3-Phase Input / 3-Phase Output True Galvanic Isolation On-Line UPS
    RP-UPL3300V 300KVA 3-Phase Input / 3-Phase Output True Galvanic Isolation On-Line UPS
    RP-UPL3320V 320KVA 3-Phase Input / 3-Phase Output True Galvanic Isolation On-Line UPS
