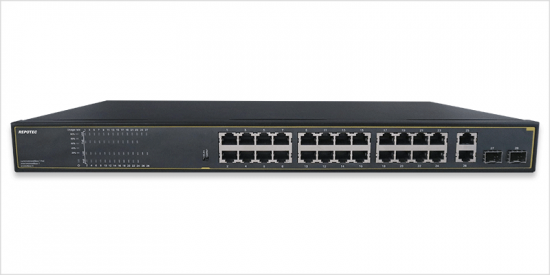

24-P Gigabit PoE + 2-Gigabit TP + 2-SFP(1G) slot Ethernet Switch
Model: RP-PG2244
- 24 PoE ports, 2*1G ports, 2*1G SFP slots.
- Single port: 30W, total PoE budget: 270W.
- Default and VLAN modes for adaptability.
- PoE usage rate display for power monitoring.
- 6KV surge, 6KV contact / 8KV air ESD protection.
RP-PG2244 is equipped with 24 * 10/100/1000M PoE ports, compliant with IEEE 802.3af/at standard for PoE+, delivering 30W per port and a maximum power output of 270W. Additionally, the switch offers 2*10/100/1000M ports and 2* 1000M SFP uplink ports, providing high-speed connectivity for efficient data transfer.
RP-PG2244 offers adaptability through two operating modes: Default and VLAN, catering to diverse environments. Its versatile features include PoE usage rate indication, providing a convenient display of power consumption. Additionally, RP-PG2244 prioritizes reliability with high anti-interference capabilities, featuring 6KV surge protection and 6KV contact / 8KV air Electrostatic Discharge (ESD) protection.

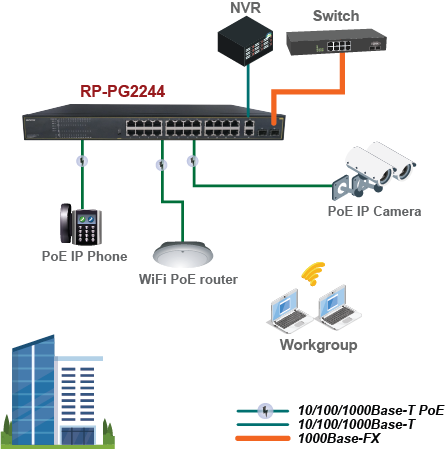

Well-suited for deployment in demanding environments, RP-PG2244 contributes to the seamless operation of security network video monitoring systems and other network applications. With a focus on both performance and protection, it serves as a reliable solution for organizations seeking a robust and adaptable network switch.
- 24*10/100/1000M PoE ports, 2*10/100/1000M ports and 2*1000M SFP slots.
- PoE power of single port is 30W, total power budget up to 270W.
- Provides 2 modes of Default and VLAN to adapt to various complex environments.
- Supports PoE usage rate indication for convenient display of power consumption.
- 6KV surge protection, 6KV contact / 8KV air ESD protection.
Standards |
|
Interface |
|
Switching capacity |
|
Packets forwarding rate |
|
Buffer |
|
MAC Address |
|
Indicators |
|
Dip switch |
|
PoE ports |
|
PoE power Budget |
|
Power consumption |
|
Power Supply |
|
Cable and distance |
|
Dimension (LxWxH) |
|
Operation temperature |
|
Storage temperature |
|
Humidity |
|
Protection |
|
RP-PG2244 | 24-P Gigabit PoE + 2-Gigabit TP + 2-SFP(1G) slot Ethernet Switch(270W) |
