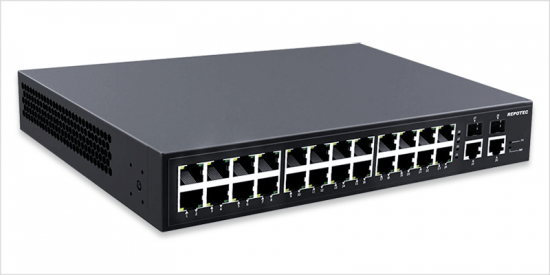

24-P Gigabit PoE + 2-P Gigabit TP + 2-1G SFP slot Ethernet Switch
Model: RP-PG2404
- 24*1Gigabit PoE Ports
- Larger port buffer smooth video transmission
- 802.3af/at Compliant
- Provide 265W PoE Budget
- Auto PD Detection
- Efficient power optimization
- 10K Jumbo Frame
- 4KV Surge Protection
RP-PG2404 is 24 Full PoE gigabit ports, along with 2 1G SFP uplink ports and 2 10/100/1000M RJ45 ports. The switch complies with IEEE802.3af and IEEE802.3at standards, guaranteeing compatibility with a wide range of PD equipment without the risk of damage. RP-PG2404 supports PoE power budget up to 265W.
RP-PG2404 is an affordable and efficient Unmanaged PoE Switch. It provides basic network connectivity without unnecessary complexity, making it a budget-friendly choice. With wire-speed Gigabit Ethernet, the switch ensures fast and reliable networking for office environments. RP-PG2404 is designed to optimize power efficiency, providing cost-effective network connectivity for small businesses.

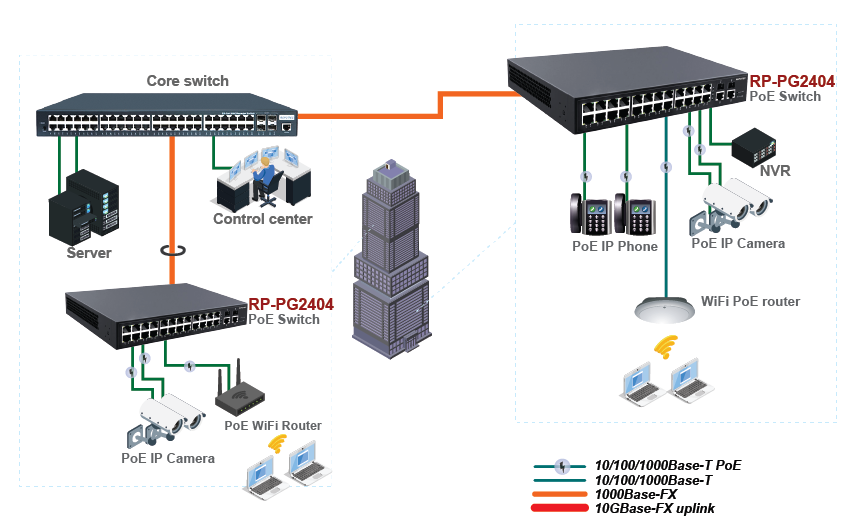

RP-PG2404 is suit for video surveillance networks. It fully supports PoE and PoE+ functionalities, making it ideal for camera access in parks, office buildings, residential areas, and parking lots. With its larger port buffer, the switch ensures smooth and uninterrupted video transmission, even during high-demand situations.
- 24*10/100/1000M Full PoE gigabit ports
- 2*1G SFP uplink ports and 2*10/100/1000M RJ45 ports
- Wire-Speed Gigabit Ethernet provide fast and reliable networking
- Complies with IEEE802.3af/at
- 265W PoE Power Budget supports power-hungry devices
- Automatic detection of PD equipment
- Supports 10Kbytes Jumbo frame
- Larger Port Buffer ensures smooth video transmission
- Provide power efficiency optimization and cost-effective connectivity.
Standards |
|
Interface |
|
Mac Table | |
MAC Address |
|
Switching capacity |
|
Packets forwarding rate |
|
Buffer |
|
Polarity reversal |
|
Flow control |
|
Jumbo frame |
|
Port mirroring |
|
Network storm suppression |
|
PoE | |
PoE ports |
|
PoE standard |
|
PoE End-span |
|
Non-standard PD |
|
Single port Max output power |
|
PoE Power Budget |
|
Power Supply |
|
Network topology | |
Star topology |
|
Bus topology |
|
Tree topology |
|
Power supply surge protection |
|
Ethernet ports surge protection |
|
General | |
Dimension |
|
Operation temperature |
|
Storage temperature |
|
Operation humidity |
|
Storage humidity |
|
Heat dissipation |
|
RP-PG2404 | 24-P Gigabit PoE + 2-P Gigabit TP + 2-1G SFP slot Ethernet Switch (265W) |
