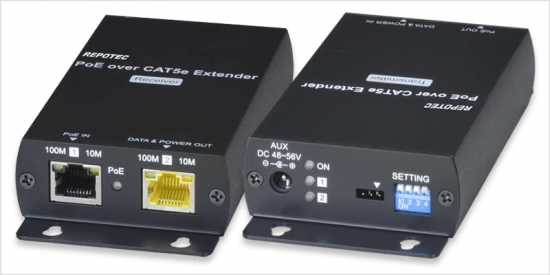

RP-EC509P

RP-EC509P is a versatile 802.3bt PoE Extender designed for seamless transmission and extension of both TCP/IP and Power over Ethernet (PoE) signals over CAT5e/6 cables. With support for 10BASE-T, 100BASE-TX, and 100BASE-T1 standards, it ensures compatibility with various Ethernet technologies. The extender impressively spans distances of 500 meters at 100Mbps, and 800 meters at 10Mbps, making it ideal for extended network setups.

RP-EC509P excels in PoE support, accommodating IEEE 802.3af, 802.3at, and 802.3bt standards, enabling power delivery to connected devices. Additionally, RP-EC509P offers flexibility in power input, allowing for PoE or external power adapter options. It features Auto MDI/MDI-X support, full and half-duplex operation modes, and embraces energy efficiency through EEE (Energy-Efficient Ethernet).

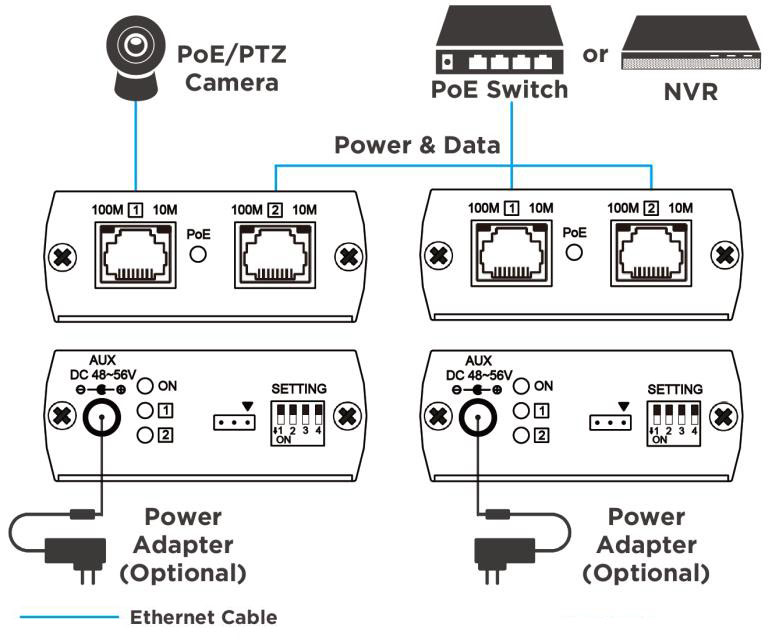

RP-EC500P is a powerful and cost-effective solution for extending Ethernet connections over significant distances, making it an excellent choice for applications such as remote camera access. With its extensive compatibility and robust feature set,  RP-EC500P ensures network reliability and robustness against electrical surges, making it a comprehensive solution for extended PoE applications.

• To send and extend TCP/IP and PoE over CAT5e/6 cable.
• RJ45 side support 10BASE-T, 100BASE-TX, 100BASE-T1 standard.
• Support PoE IEEE 802.3af, 802.3at, 802.3bt
• Transmission distance: 500 meters at 100Mbps, 800 meters at 10Mbps.
• Distance: 300M with support power output up to 38W.
• Power input could be from PoE or external power adapter
• Support Auto MDI/MDI-X.
• Support Full duplex and half duplex mode.
• Support EEE Energy-Efficient Ethernet.
