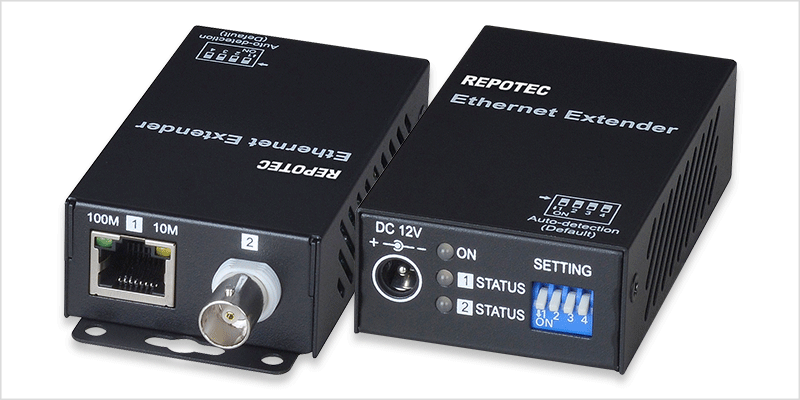

RP-EC500CK

RP-EC500CK is an advanced IP extender that revolutionizes network connectivity. It uses a single coaxial cable to transmit TCP/IP signals up to 800 meters with a bandwidth capacity of 100Mbps, surpassing the limitations of traditional Ethernet transmission. With its ability to convert analog cameras to IP cameras without cable replacement, it saves on labor and costs.

Designed to be fully compatible with protocols, codes, and applications, the RP-EC500CK seamlessly integrates with any TCP/IP device and its management software. It offers a flexible solution for extending TCP/IP signals to remote cameras, making network expansion effortless. With extended transmission distances, remarkable compatibility, and surge protection, it is a game-changing solution that delivers superior performance and cost savings.

Upgrade your network effortlessly with the RP-EC500CK and experience seamless connectivity over long distances. It is the perfect choice for extending networks to remote cameras while saving on labor and costs. Benefit from its exceptional compatibility and surge protection features, and embrace the future of network expansion.

• Transmit TCP/IP signals over a coaxial cable up to 800 meters
• BNC Side: 500 meters at 100Mbps, 1000 meters at 10Mbps
• Supports 10BASE-T, 100BASE-TX, and 100BASE-T1 standards
• Automatic MDI/MDI-X for hassle-free connectivity
• Full Duplex and Half Duplex mode for flexible networking setups
• Energy-Efficient Ethernet reduces power consumption

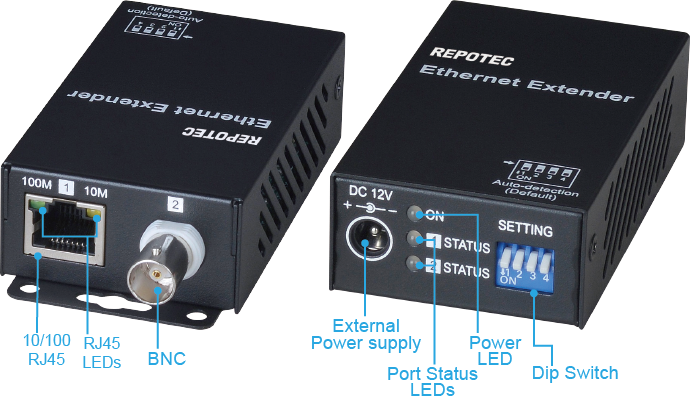

• BNC side equipped with 30KV (ESD) and 30A (Lightning) surge protection
• RJ45 side features 1.5KV surge protection for network equipment

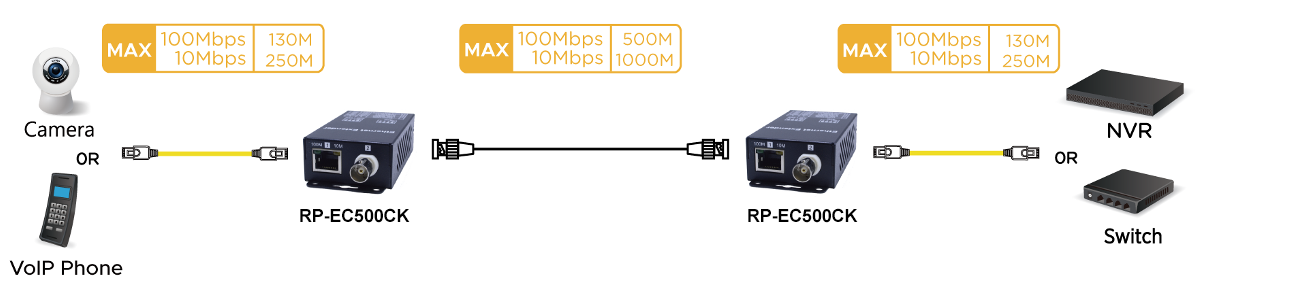

• Point to Point Transmission

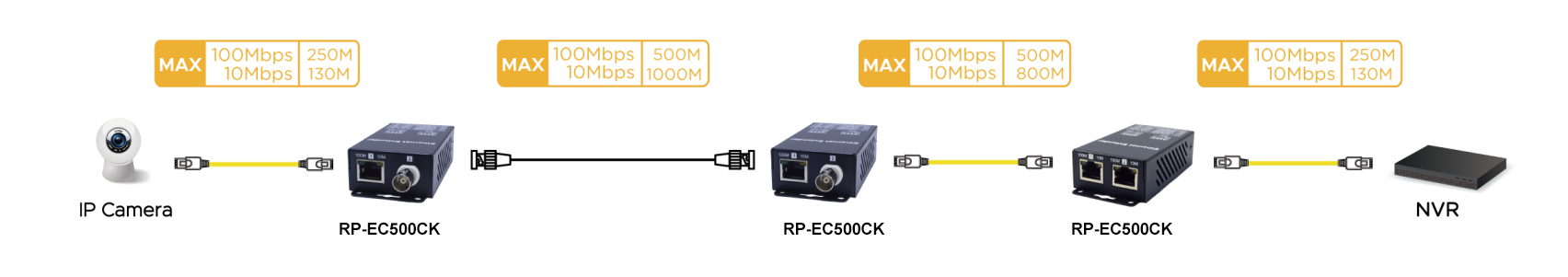

• Extra Long Extension by connecting with RP-EC500CK

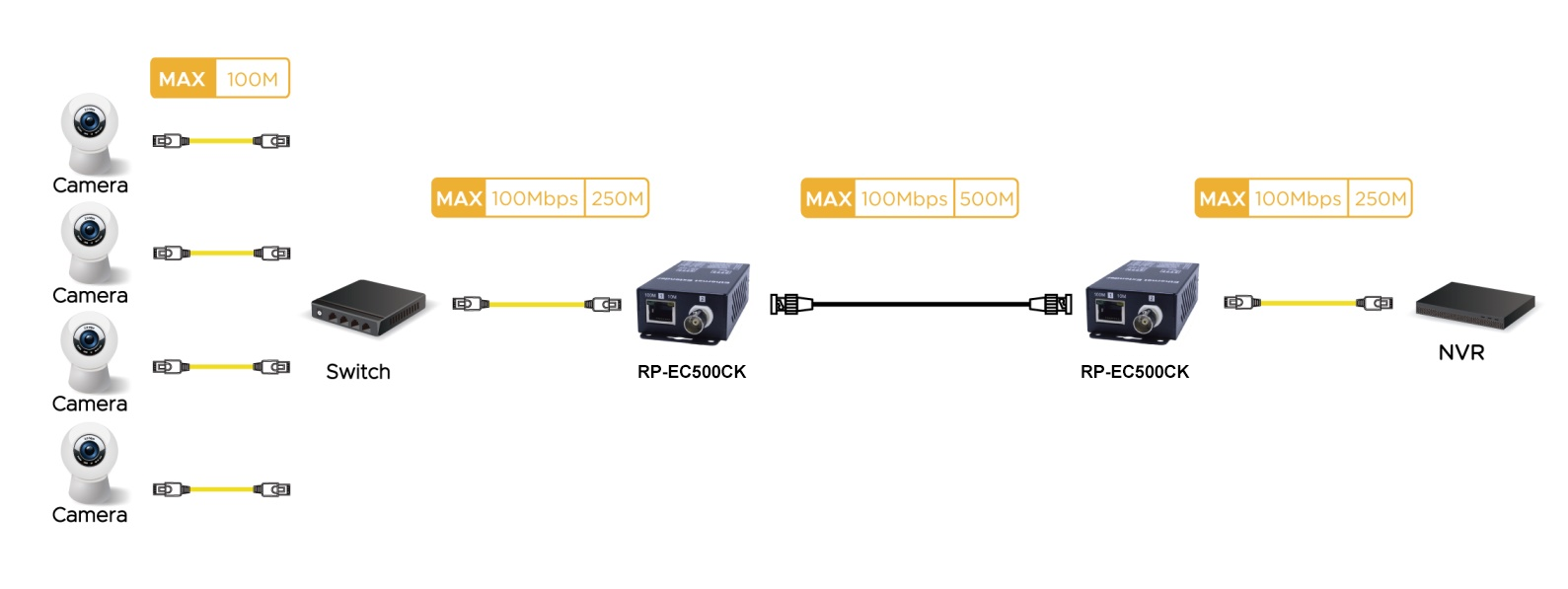

• Long Distance for Multiple cameras transmission
