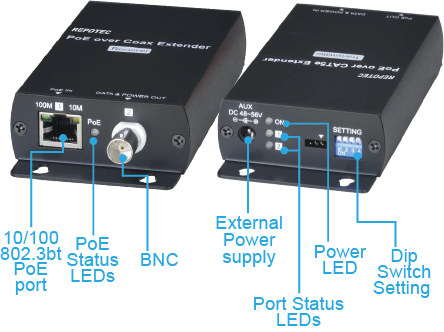

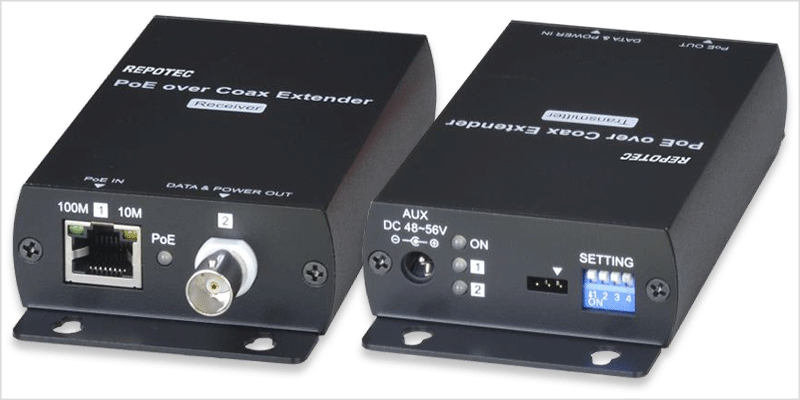

RP-EC509CP

RP-EC509CP is a powerful Ethernet 802.3bt PoE Long Reach Extender designed for extending TCP/IP and PoE signals over coaxial cables. With BNC side support for 10BASE-T, 100BASE-TX, and 100BASE-T1 standards, this extender offers versatile compatibility. It can transmit data up to 500 meters at 100Mbps and an impressive 1,000 meters at 10Mbps, making it an ideal choice for extended network configurations.

RP-EC509CP excels in PoE support, accommodating IEEE 802.3af, 802.3at, and 802.3bt standards, delivering power to connected devices.  RP-EC509CP offers flexibility in power sources, allowing for either PoE or external power adapters. With features Auto MDI/MDI-X, full and half-duplex modes, and support for EEE (Energy-Efficient Ethernet), this extender adapts to various network requirements while enhancing energy efficiency.

RP-EC509CP prioritizes network stability and protection, featuring built-in surge protection of 30KV (ESD), 40A (EFT) on the BNC side, and 30KV (ESD), 40A (EFT), and 2KA surge protection on the RJ45 side, ensuring the utmost reliability and resilience against electrical surges.  RP-EC509CP is a comprehensive solution for extended PoE applications, providing robust and dependable performance.

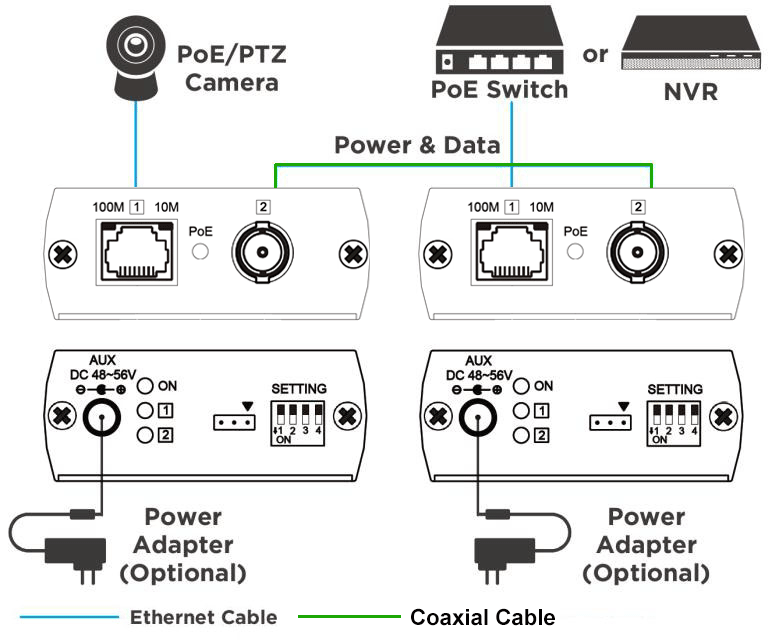

• To send and extend TCP/IP and PoE over coaxial cable.
• BNC side support 10BASE-T, 100BASE-TX, 100BASE-T1 standard.
• Transmission distance: 500 meters at 100Mbps, 1,000 meters at 10Mbps.
• Support PoE IEEE 802.3af, 802.3at, 802.3bt
• Power source is from either PoE or external power adapter
• Support Auto MDI/MDI-X.
• Support Full duplex and half duplex mode.
• Support EEE Energy-Efficient Ethernet.
• BNC side built-in 30KV (ESD), 40A (EFT), and 30A surge protection.
• RJ45 side built-in 30KV (ESD), 40A (EFT), and 2KA surge protection.
