RP-G1002I+


RP-G1002I+

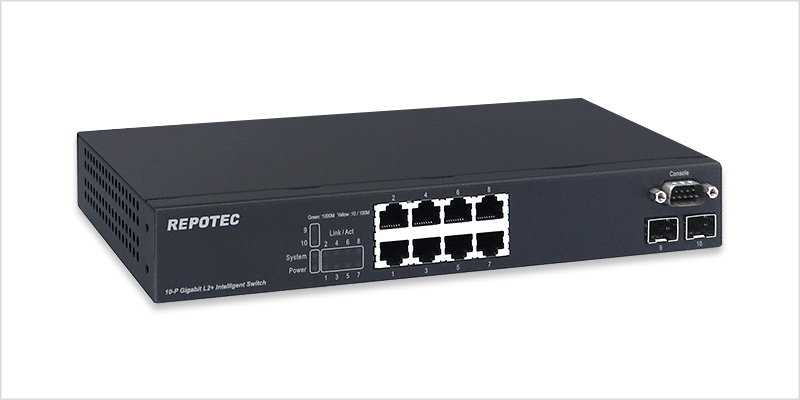

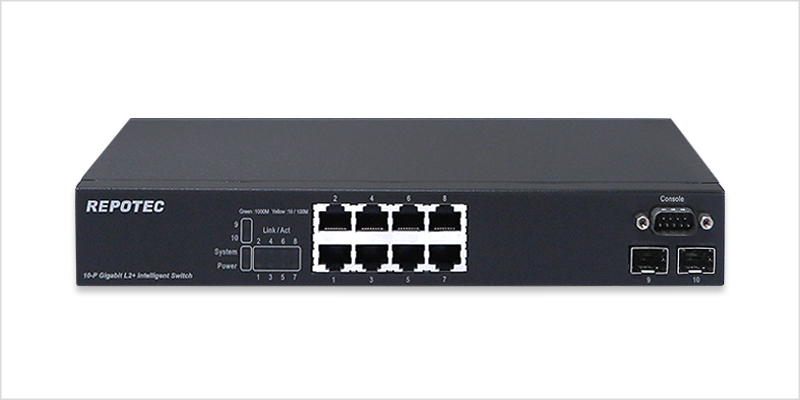

8-P 1000T + 2-SFP(100/1G) slot L2+ Managed Switch

  • RP-G1002I+ is a cost efficient and high-performance L2 Ethernet managed switch, it is equipped with 8 gigabit RJ45 ports and 2 SFP slots. RP-G1002I+ supports remote management by SNMP, Http and Telnet interfaces, and local management by console interface.

    RP-G1002I+ supports lots of L2 switch management functions, e.g. 802.1Q VLAN, 802.1x Port Security, Rate Control, Port Configuration, Port Mirroring, Port Statistics, QoS functions ... etc. Auto-MDIX function is supported for every TX port of the switch for easy cable connection.

    • CISCO-like command line interface
    • IPv6 management
    • 8 priority queues are supported on each port for QoS application
    • Port-based VLAN, 802.1Q VLAN and Private VLAN
    • Protected port and LoopBack Detection function
    • Q-in-Q(double tagging) function
    • IEEE 802.1x security function, and VLAN assignment, Guest VLAN functions
    • Static Mac address access limit and Dynamic Mac address number on port
    • IEEE802.1d & 802.1w & 802.1s
    • IP Multicast with IGMP snooping / query / fast leave / filtering /group limited /MVR
    • DHCP Client / DHCP Option 82 Relay / DHCP Snooping function
    • ACL function for L2 ~ L4 packet control
    • Ingress/Egress rate control on port
    • Broadcast/Multicast/Unicast storm control
    • ARP inspection / IP source guard
    • RMON 1,2,3,9 
    • SFP Transceiver DDMI function(Phase 2) / Dual Speed SFP Ports(100/1000Mbps)
    • Remote port configuration setting and statistics monitoring
    • Text configuration download and upload
    • IEEE 802.3az power management / FANless / Green Ethernet

  • Standards
    • IEEE802.3(10BaseT Ethernet ), IEEE802.3u(100Base Fast Ethernet),
    • IEEE802.3ab(1000BaseT), IEEE802.3z(1000Base),IEEE802.3x
    • IEEE802.1D, IEEE802.1w, IEEE802.1P, IEEE802.1Q, IEEE802.1x
    • IEEE802.3ad, EEE802.1ad
    • IEEE802.3az Energy Efficient Ethernet
    Interface
    • 8* RJ45 ports, with 10/100/1000Mbps, Full/Half duplex auto-negotiation and Auto-MDIX and Force MDI/MDIX function
    • 2* 100/1G SFP Slot, Port 9 and Port 10
    Console Port
    • DB9 console port
    CPU
    • 416MHz MIPS 24KEc CPU as the main processor which integrated on switch controller
    Memory
    • Flash: SPI 16MB / RAM: DDRII 128MB
    Packet Buffer
    • 512K Bytes
    Mac Table Size
    • 8K
    Max Packet Size
    • 9600 Bytes
    Switching capability
    • 14880pps at 10Mbps
    • 148810pps at 100Mbps
    • 1488095pps at 1Gbps with 64 bytes packets
    Switch capacity
    • 20Gbps
    Forwarding Rate
    • 14.8Mpps
    Port Control
    • Port speed, duplex mode, and flow control
    • Port frame size (jumbo frames), Maximum ingress frame size (9600 bytes)
    • Port state (administrative status)
    • Port status (link monitoring)
    • Port statistics (MIB counters)
    • Port VeriPHY (cable diagnostics)
    • Power Control
    L2 Switching
    • Auto MAC address learning/aging and MAC addresses (static)
    • IEEE 802.1Q static VLAN, Private VLAN, Port isolation, Port Based VLAN
    • IEEE 802.1ad Provider Bridge
    • IEEE 802.1D STP/802.1w RSTP/802.1s MSTP
    • IEEE 802.3ad Link Aggregation, static and LACP
    • BPDU guard and restricted role, BPDU transparency
    • DHCP client, DHCP snooping, DHCP option 82 relay
    • ARP inspection
    • Port mirroring
    • IP MAC binding
    Layer 2 Multicast
    • IGMPv2, v3 snooping, (1024 groups)
    • IGMP throttling, filtering, and leave proxy
    • MVR
    QoS
    • 8 Priority Queues per Port
    • Port Based priority
    • Scheduler priority
    • QoS Control List
    • Storm control for UC, MC, and BC
    • Policing and shaping per port and per queue
    • Ingress Policing:(100-1000000 when the "Unit" is "kbps" or "fps" and 1-3300 when the "Unit" is "Mbps" or "kfps")
    • Egress Shaping:(100-1000000 when the "Unit" is "kbps", and 1-3300 when the "Unit" is "Mbps".)
    • DiffServ (RF 2474) remarking
    • Tag remarking
    Security
    • Port-based 802.1X, Single 802.1X, Multiple 802.1X
    • MAC-based authentication, VLAN assignment, QoS assignment
    • Guest VLAN
    • RADIUS accounting
    • MAC address limit
    • TACACS+
    • Web and CLI authentication and authorization
    • Authorization ( 15 levels)
    • ACLs for filtering(256 entries), policing, and port copy
    • IP source guard
    Synchronization
    • NTPv4 Client
    Power Saving
    • ActiPHY, PerfectReach
    • Ethernet Energy Efficient power management(EEE)
    SFP DDMI
    • Yes (Phase 2)
    Management
    • HTTP server
    • CLI console port
    • Telnet
    • Management access filtering
    • SSHv2 and HTTPS
    • IPv6 Management
    • System Syslog
    • Software download through Web
    • SNMPv1/v2c/v3 Agent
    • RMON Group 1, 2, 3, and 9
    • IEEE 802.1AB-2005 Link Layer Discovery, LLDP
    • Text Configuration download or upload
    • sFlow
    LED Indicators
    • Power (Green)
    • System(Green)
    • Link / Act: 1000Mbps (Green); 10/100Mbps (Amber)
    Power Consumption
    • 8.5 Watt Max.
    Power Supply

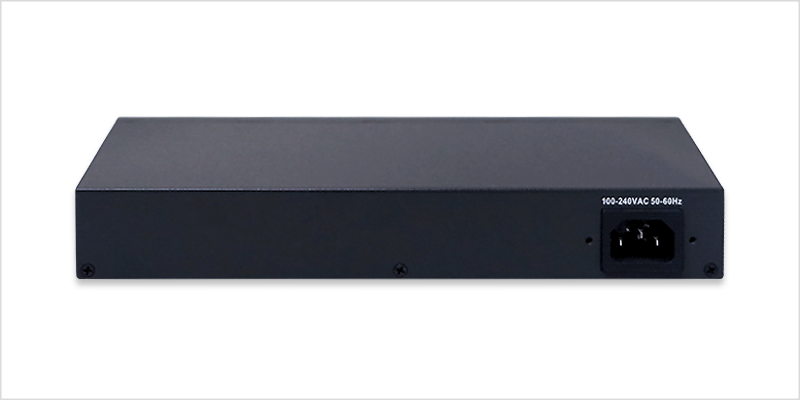

    • Internal Power supply 100~240VAC, 50/60 Hz
    Environment
    • Operating temperature : 0°C to 50°C
    • Operating Humidity: 10% to 90% (Non-Condensing)
    Dimension
    • 250 * 117 * 37 mm
    Certification
    • FCC, CE
