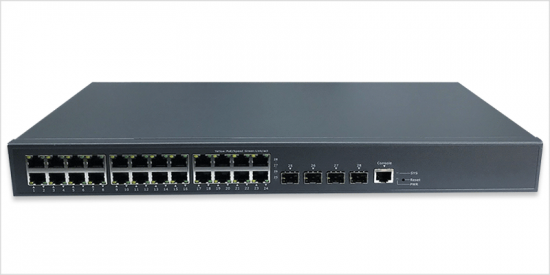

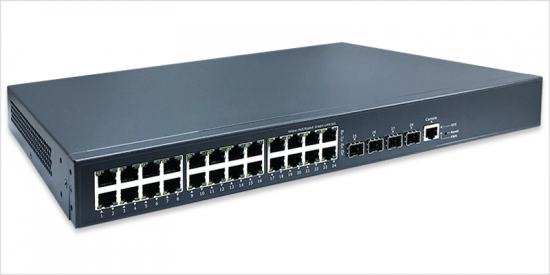

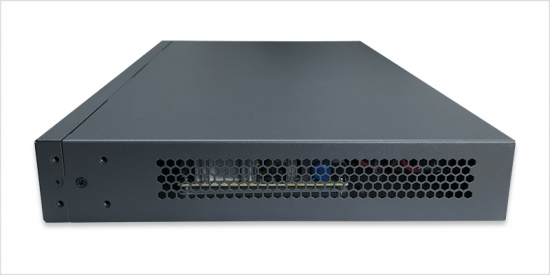

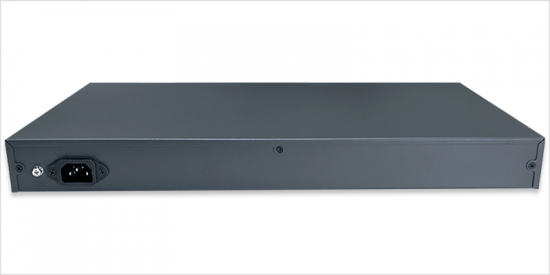

RP-G83240IX-4F

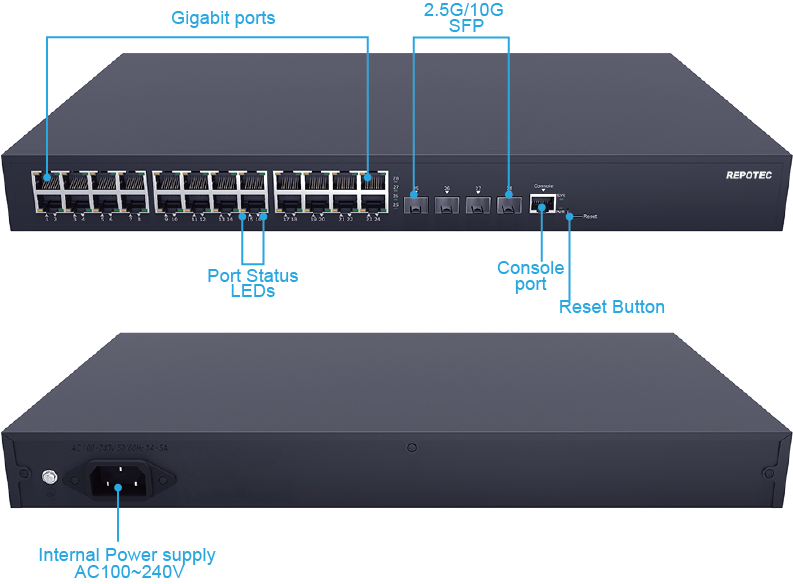

RP-G83240IX-4F, a versatile Layer 2+ managed Gigabit switch designed for enterprise networks. With 24 gigabit PoE ports and 4 *1G/2.5G/10G SFP slots, this switch delivers full Gigabit access and impressive scalability, achieving exceptional 10G performance. It supports Layer 3 static routing and offers a switching capacity of 128 Gbps.

The RP-G83240IX-4F meets the needs of modern networks, providing comprehensive QoS capabilities, flexible management, and robust security features at a cost-effective price. It ensures high-speed, secure, and intelligent networking for enterprises. The switch offers advanced protocols, VLAN classification options, port mirroring, layer 2 ring network protocols, multicast support, and comprehensive QoS features.

With support for LLDP, user management, SNMP, web management, firmware updates, and utilities like Ping and Tracert, the RP-G83240IX-4F simplifies network monitoring and maintenance. It empowers enterprises with reliable performance and efficient network operations.

• Supports IPv4/IPv6 static routing, DHCP server
• Supports GE ports, 2.5GE port aggregation, static and dynamic aggregation
• Supports access, trunk, and hybrid mode VLAN classification
• Supports port-based, VLAN-based and flow-based QinQ
• Port Mirroring: Many to one port mirroring

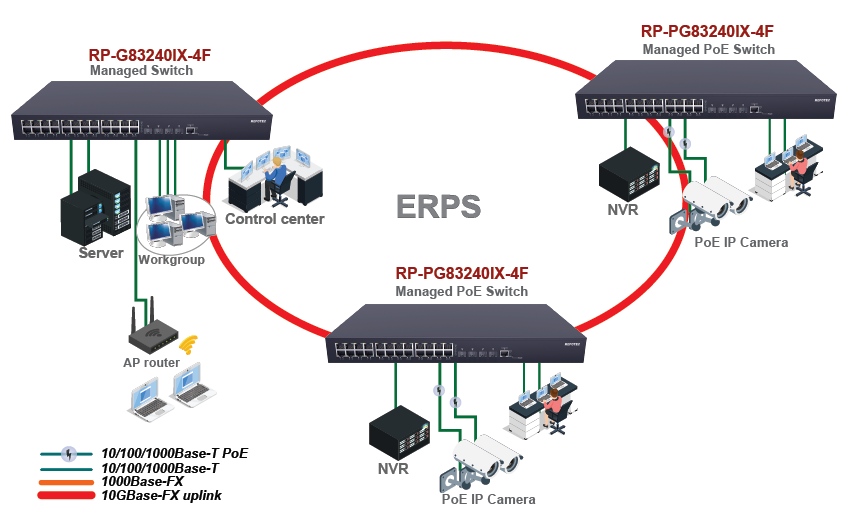

• Supports STP, RSTP, MSTP, G.8032 ERPS protocol, single ring, sub ring
• Multicast: Supports IGMP snooping
• QoS: Supports SP, WRR queue scheduling, rate-limiting, and policy-based QoS
• Supports Dot1x, port authentication, MAC authentication, RADIUS service.
• Supports LLDP, user management, login authentication; SNMPV1/V2C/V3; web management.
• Firmware update, configure backup/restore through Web GUI, FTP and TFTP
