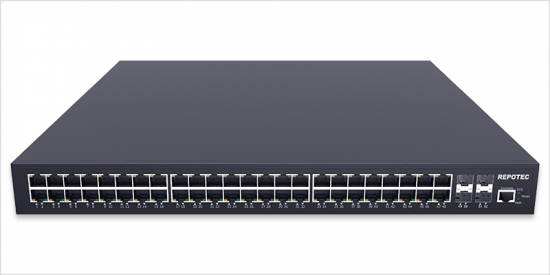

48-P Gigabit + 4-SFP (1G/2.5G/10G) slot L2+ Managed Switch
Model: RP-G83480IX-4F
- IPv4/IPv6 routing, DHCP server
- GE, 2.5GE, 10GE aggregation
- Access/trunk/hybrid VLANs (Mac/IP/protocol-based)
- Port/VLAN/flow QinQ
- STP/RSTP/MSTP/G.8032 ERPS
- IGMP snooping multicast
- QoS, SP/WRR scheduling
- Dot1x, port/mac/RADIUS authentication
- LLDP, user management, SNMP
- Firmware update, config backup (Web/FTP/TFTP)
RP-G83480IX-4F is a Layer 2+ managed PoE switch, It offers 48 gigabit PoE ports and 4 1G/2.5G/10G SFP slots. The switch provides full Gigabit access and exceptional scalability, offering impressive 10G performance. With a switching capacity of 336 Gbps, it delivers high-density performance and includes Layer 3 static routing capabilities.
RP-G83480IX-4F provides comprehensive end to end QoS as well as flexible and rich management, security settings, which can meet the high speed, secure and smart requirement for small and medium-size enterprise networks based on cost effective price. The powerful network security features make the RP-G83480IX-4F perform effective data traffic control for ISP and enterprise VoIP, video streaming, and multicast applications.
RP-G83480IX-4F excels in network security, enabling effective data traffic control for Internet Service Providers (ISPs) and enterprises. It efficiently manages VoIP, video streaming, and multicast applications. For SMBs looking to deploy Power over Ethernet networks or enhance data security and network traffic management, the switch offers an affordable, safe, and reliable power solution.

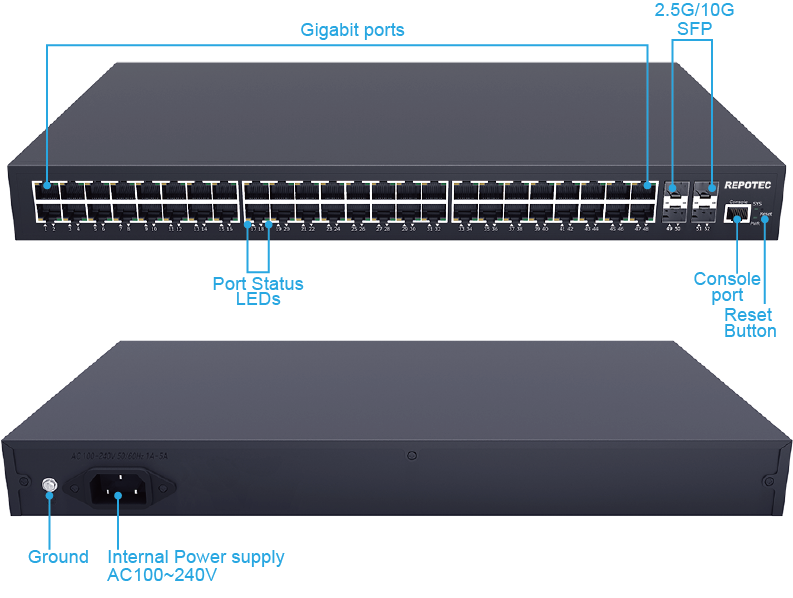

- 4*1G/2.5G/10GSFP+ ports uplink, 48 *10/100/1000BASE-T Gigabit Ethernet RJ45 ports downlink, 1* RJ45 console interface for switch basic management and setup
- Layer 3 features: Supports IPv4/IPv6 static routing, DHCP server
- Port aggregation: Supports GE ports, 2.5GE and 10GE port aggregation, static and dynamic aggregation
- VLAN : Supports access, truck , hybrid mode and VLAN classification, including the Mac based VLAN, IP based VLAN and protocol based VLAN
- QinQ: Supports port-based, VLAN-based and flow-based QinQ
- Port Mirroring: Many to one port mirroring

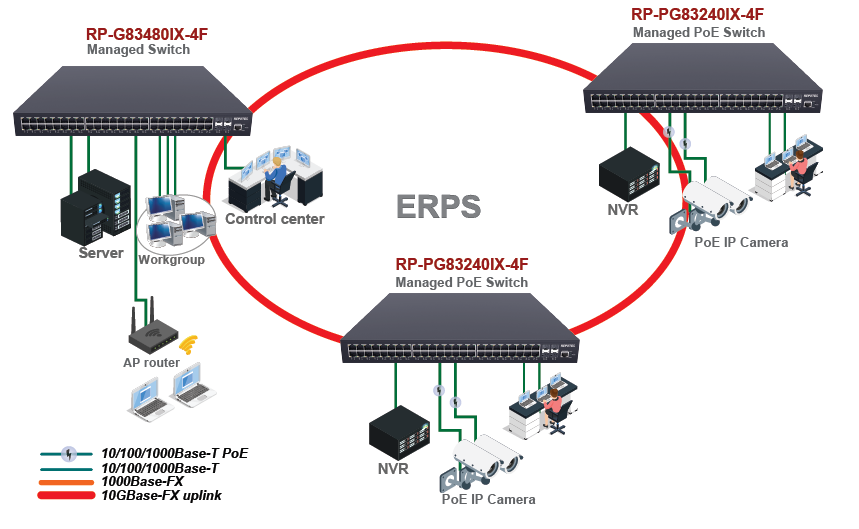

- Layer 2 ring network protocol: Supports STP, RSTP, MSTP, G.8032 ERPS protocol, single ring, sub ring
- Multicast: Supports IGMP snooping
- QoS: QoS class, remarking, Supports SP, WRR queue scheduling, Ingress/Engress port-based rate-limit and policy-based QoS
- Security: Support Dot1x,port authentication,mac authentication,RADIUS service; Support port-security, ip source guard,IP/Port/MAC binding, arp-check and ARP packet filtering for illegal users and port isolation
- Management : Supports LLDP, user management and login authentication; SNMPV1/V2C/V3; web management,1,HTTPS; Syslog and alarm grading ; RMON (Remote Monitoring) alarm, event and history record; NTP, temperature monitoring; Ping、Tracert and optical transceiver DDM function; Supports TFTP Client, Telnet Server, SSH Server and IPv6 Management
Standards |
|
Interface |
|
Management port |
|
Switching capacity |
|
Packet forwarding rate |
|
MAC address table |
|
Buffer |
|
Layer 2 function | |
Port aggregation |
|
Port features |
|
VLAN |
|
VLAN Classification |
|
QinQ |
|
Port mirroring |
|
Ring network protocol |
|
DHCP |
|
ARP |
|
IPv4/IPv6 |
|
Multicast |
|
ACL |
|
QoS |
|
Security |
|
Management & maintenance |
|
Mechanical structure | |
Power supply |
|
Fan |
|
Power Consumption |
|
Power surge protection |
|
Ethernet ports surge protection |
|
Dimension |
|
Environment |
|
Certification |
|
RP-G83480IX-4F | 48-P Gigabit + 4-SFP(1G/2.5G/10G) slot L2+ Managed Switch |
