16-P Gigabit + 8-TP/SFP(1G) combo + 4-SFP (1G/2.5G) slot L2+ Managed Switch
Model: RP-G83168I-4F
- IPv4/IPv6 static routing, DHCP server
- GE, 2.5GE port aggregation
- Access, trunk, hybrid VLANs
- Port-based, VLAN-based, QinQ
- STP, RSTP, MSTP, ERPS
- Multicast: IGMP snooping
- SP, WRR QoS, rate-limiting
- Dot1x, MAC, RADIUS authentication
- LLDP, SNMP, web management
- Firmware update, backups

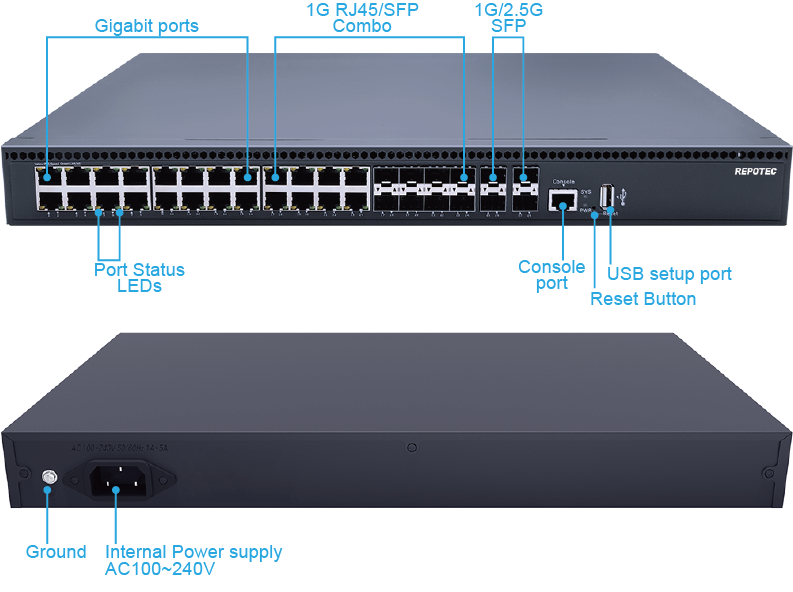

RP-G83168I-4F is a powerful Layer 2+ gigabit managed switch, featuring 16 Gigabit Ethernet ports, 8 TP/SFP (1G) combo ports, and 4 SFP (1G/2.5G) slots. With a remarkable 68Gbps switching capacity, this switch excels in high-density performance, making it an ideal solution for enterprises. Its versatile port options provide flexibility for various networking needs, catering to modern business demands.
Equipped with comprehensive end-to-end Quality of Service (QoS) and flexible management capabilities, RP-G83168I-4F meets the requirements for high-speed, secure, and smart networking scenarios. It empowers administrators to prioritize critical data and applications, ensuring smooth data delivery even during peak network traffic. The switch's powerful security features enhance data protection and enable effective data traffic control, making it suitable for ISP and enterprise applications like VoIP, video streaming, and multicast.
RP-G83168I-4F stands out with its Layer 2+ capabilities, offering efficient data handling and optimal network performance. Administrators benefit from its rich management features, allowing them to customize the network according to their specific needs. The cost-effective design and high-density performance make RP-G83168I-4F a reliable choice for modern enterprise networks. Its ability to support diverse applications and adapt to evolving networking needs makes it an invaluable asset for businesses seeking a seamless and future-proof networking solution.
- Supports IPv4/IPv6 static routing, DHCP server
- Supports GE ports, 2.5GE port aggregation, static and dynamic aggregation
- Supports access, trunk, and hybrid mode VLAN classification
- Port-based, VLAN-based, Port Mirroring and flow-based QinQ

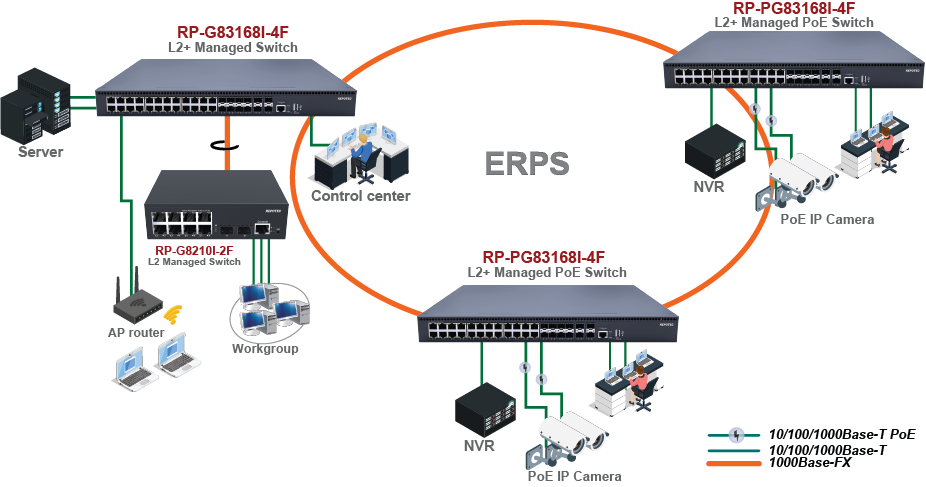

- Supports STP, RSTP, MSTP, G.8032 ERPS protocol, single ring, sub ring
- Multicast: Supports IGMP snooping
- Supports SP, WRR queue scheduling, rate-limiting, and policy-based QoS
- Dot1x, port authentication, MAC authentication, RADIUS service
- Supports LLDP, user management, login authentication; SNMPV1/V2C/V3; web management.
- Firmware update, configure backup/restore through Web GUI, FTP and TFTP
Standards |
|
Interface |
|
Management port |
|
Switching capacity |
|
Packet forwarding rate |
|
MAC address table |
|
Buffer |
|
Layer 2 function | |
Port aggregation |
|
Port features |
|
VLAN |
|
VLAN Classification |
|
QinQ |
|
Port mirroring |
|
Ring network protocol |
|
DHCP |
|
Multicast |
|
ACL |
|
QoS |
|
Security |
|
Management & maintenance |
|
Layer 3 features | |
DHCP server |
|
ARP |
|
IPv4/IPv6 |
|
Mechanical structure | |
Power supply |
|
Fan |
|
Consumption |
|
Power surge protection |
|
Ethernet ports surge protection |
|
Dimension |
|
Environment |
|
Certification |
|
RP-G83168I-4F | 16-P Gigabit + 8-TP/SFP(1G) + 4-SFP (1G/2.5G) slot L2+ Managed Switch |
