RP-ISG401F

RP-ISG401F
5-P slim type Gigabit Industrial Switch

  • RP-ISG401F provides 4 Gigabit Ethernet ports + 1-SFP(100/1G) slot, which are designed for supporting standard industrial applications without complex setup to make the network truly plug-and-play. It can be used to connect several Ethernet devices like Ethernet I/O, IP-Camera or other Ethernet switches. In addition, it provides wild power input voltage range +12 ~ + 56Vdc for application flexibility which secures equipment against unregulated voltage and makes systems safer and more reliable.

    With the 5 10/100/1000Mbps Gigabit Ethernet ports, RP-ISG401F provides non-blocking switch fabric and wire-speed throughput as high as 10Gbps, RP-ISG401F performs wire-speed packets transfer without risk of packet loss.

    The protection of compact IP-30 standard metal case allows for either DIN rail or wall mounting for efficient use of cabinet space.

    • RJ-45 port support Auto MDI/MDI-X Function
    • Store-and-Forward Switching Architecture
    • Back-plane (Switching Fabric): 10Gbps
    • IEEE 802.3x flow control & back-pressure
    • 9K Jumbo frames
    • 2K MAC forwarding addresses
    • L2 wire-speed switching engine
    • Queues per port: 4
    • Support 802.1p & TOS/DS QoS
    • Support Multicast/Broadcast/Flooding Storm Control
    • Wide-range Redundant Power design 12~56 VDC, removable terminal block for two power input
    • Reverse power protection
    • Hardware DIP-switch to enable/disable warning function
    • IP-30 metal case protection
    • DIN rail and wall mount design

  • Standards
    • IEEE 802.3 10Base-T Ethernet
    • IEEE 802.3u 100Base-TX Fast Ethernet
    • IEEE 802.3ab 1000Base-T Gigabit Ethernet
    • IEEE 802.3z 1000Base-X Gigabit Ethernet
    • IEEE802.3x Flow Control and Back Pressure
    Switch Architecture
    • Back-plane (Switching Fabric): 10Gbps
    Transfer Rate
    • 14,880pps for Ethernet port
    • 148,800pps for Fast Ethernet port
    • 1,488,000pps for Gigabit Fiber Ethernet port
    Data Processing
    • Store and Forward
    Flow Control
    • IEEE 802.3x Flow Control and Back Pressure
    Jumbo Frame
    • 9K Bytes
    MAC Table Size
    • 2K

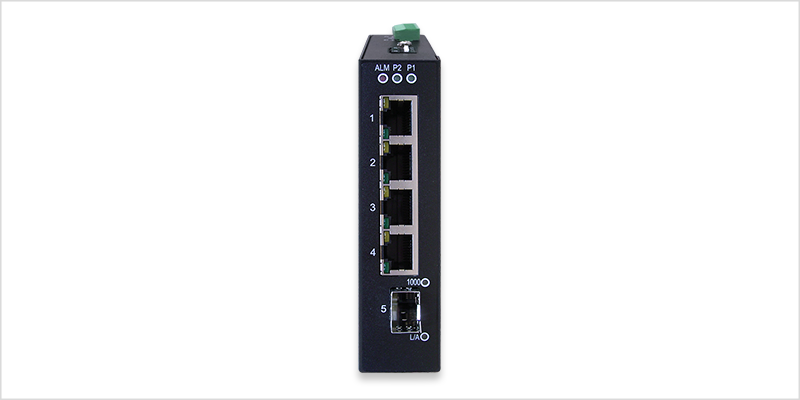

    Network Connector
    • RJ-45 Port: 10/100/1000BaseT(X) auto negotiation, Auto MDI/MDI-X function, Full/Half duplex
    • SFP Port: 100/1000BaseSFP slot
    Network Cable
    • UTP/STP above Cat.5e Cable, EIA/TIA-568 100-ohm (100m)
    Protocol
    • CSMA/CD
    Flow control
    • IEEE 802.3x (Full Duplex) and Back-Pressure (Half Duplex)
    QoS
    • IEEE 802.1p
    Number of queues
    • 4
    Traffic Shaper
    • Port-based Port shaping
    Storm Control
    • Multicast/Broadcast/Flooding Storm Control per system basis enable/disable

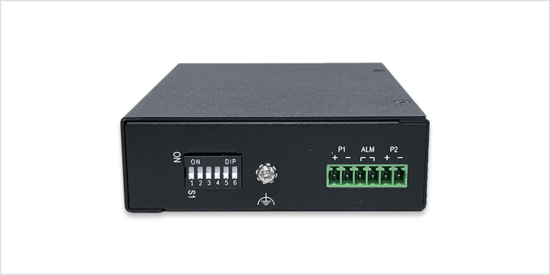

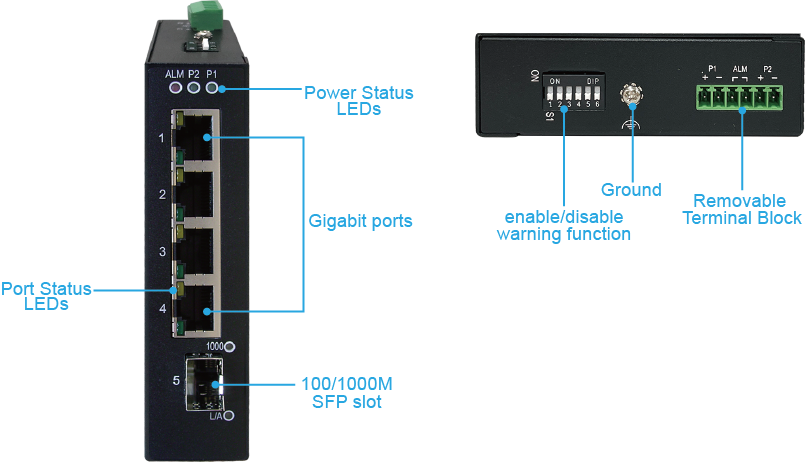

    Dip switch
    • Dip 1: On/Off - Power alarm
    • Dip 2: On/Off - Broadcast storm rate limit
    • Dip 3~6: Not used
    LED indicators
    • P1(Green), P2(Green), Alarm (Red)
    • Link/Act (Green): Ethernet link up
    • Link/Act (Yellow): On- 1000Mbps ; Off-10Mbps or 100 Mbps
    Power Consumption
    • 4.5W@48VDC full load
    Power Supply
    • Redundant Input Terminals 12-56 VDC
    Operating Temperature
    • -40 to +75°C (cold startup at -40°C)
    Storage Temperature
    • -40 to +85 °C
    Operating Humidity
    • 5% to 95% (Non-condensing)
    Case
    • Rugged Metal, IP30 Protection
    Dimension
    • 112.2(H) x 29.1(W) x 89.4(D) (without DIN rail clip)
    Installation mounting
    • DIN Rail mounting and Wall Mounting
    Certification
    • CE/FCC
    EMI
    • FCC Part 15, CISPR 22 (EN55022) Class A IEC61000-4-2, -3, -4, -5, -6 (Level 3)

  • RP-ISG401F  4-P Gigabit +1-SFP(100/1G) slot slim type Industrial Switch
