RP-ISF800


RP-ISF800

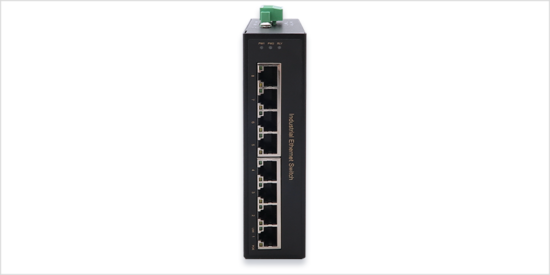

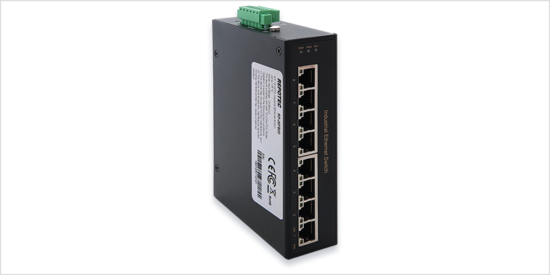

8-P 10/100TX Industrial Ethernet Switch

Datasheet
Manual


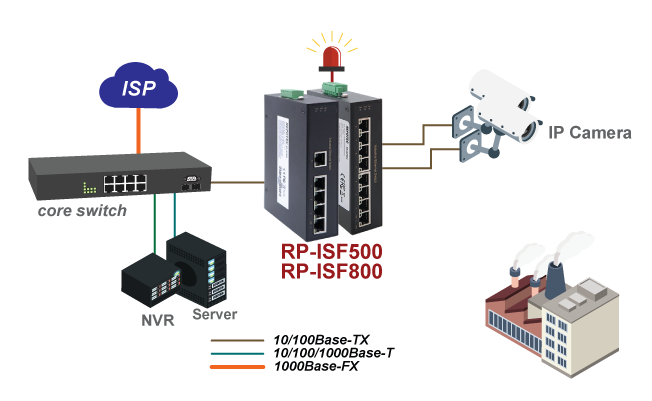

  • RP-ISF800 is an 8-port 10/100TX Industrial Switch; it is a cost-efficient solution and meets the high reliability requirements demanded by industrial applications, such as factory assembly line, automation, IP surveillance, traffic monitoring and for a broad range of applications. It can be used as a stand-alone device for buses, trucks, and other vehicles for Surveillance purposes. It is been rigorously tested for your Security, Transportation and Telco application.

    RP-ISF800 comes with wide range of voltages power supply source, which secures equipment against unregulated voltage (12 to 56VDC) and makes systems safer and more reliable.

    RP-ISF800 equips with IP-30 standard compact metal case allows for either DIN rail or wall mounting for efficient use of cabinet space.

    • RJ-45 port support Auto MDI/MDI-X Function
    • Store-and-Forward Switching Architecture
    • Back-plane (Switching Fabric): 1.6Gbps
    • 1M Memory Buffer
    • 1K MAC Address Table
    • Power Polarity Reverse Protect
    • Overload Current Re-settable Fuse Present
    • IP-30 Protection
    • DIN Rail and Wall Mount Design
    • Support Wide Operating Temperature -40℃~75℃

  • Standards
    • IEEE 802.3 10Base-T Ethernet
    • IEEE 802.3u 100Base-TX Fast Ethernet
    • IEEE 802.3x Flow Control and Back Pressure
    Switch Architecture
    • Back-plane (Switching Fabric): 1.6Gbps
    Transfer Rate
    • 14,880pps for Ethernet port
    • 148,800pps for Fast Ethernet port
    Memory Buffer
    • 1M
    Mac Address
    • 1K MAC
    Interface
    • 10/100TX: 8 *RJ-45 with auto negotiation, Auto MDI/MDI-X function, Full/Half duplex
    Network Cable
    • 10Base-T: 2-pair UTP/STP Cat. 3, 4, 5 cable
      EIA/TIA-568 100-ohm (100m)
    • 100Base-TX: 2-pair UTP/STP Cat. 5 cable
      EIA/TIA-568 100-ohm (100m)
    Protocol
    • CSMA/CD
    LED Indicators
    • Per unit: Power 1 (Green), Power 2 (Green), SW-relay (Amber)
    • Per port: Link/Active (Green)
    Reverse polarity protection
    • Present
    Overload current protection
    • Present
    Power Consumption
    • 3W@48 VDC full load
    Power Supply
    • Redundant Dual DC 12V-56V Power Input
    Alarm Relay Contact
    • Relay outputs with current carrying capacity of 1 A @24VDC
    • Relay in open circuit mode when 2 powers are connected. in short circuit mode when only one power supply is connected
    Removable Terminal Block

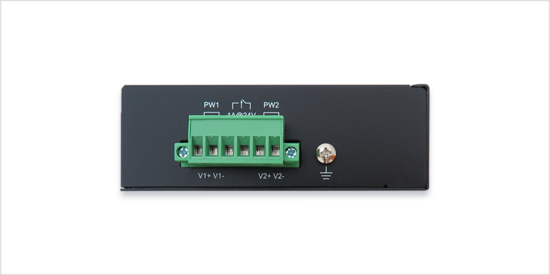

    • Provide 2 Redundant power , Alarm relay contact ,6 Pin
    • Wire range: 0.34mm^2 to 2.5mm^2
    • Solid wire (AWG):12-24/14-22
    • Stranded wire(AWG): 12-24/14-22
    • Torque:5lb-In/0.5Nm/0.56Nm
    • Wire Strip length: 7-8mm
    Environment
    • Operating temperature : -40°C~75°C
    • Storage temperature: -40°C ~85°C
    • Operating Humidity: 5% to 95% (Non-Condensing)
    Dimension
    • 142 x 36.2 x 105mm (LxWxD)
    Case
    • Rugged Metal ,IP30 Protection
    Installation
    • DIN Rail and Wall Mount Design
    EMC/EMS
    • CE, FCC
    EMI
    • FCC Part 15 Subpart B Class A, CE EN 55022 Class A
    Safety
    • IEC EN60950-1
    Stability Testing
    • IEC60068-2-32 (Free fall), IEC60068-2-27 (Shock), IEC60068-2-6 (Vibration)
