RP-IPS0524

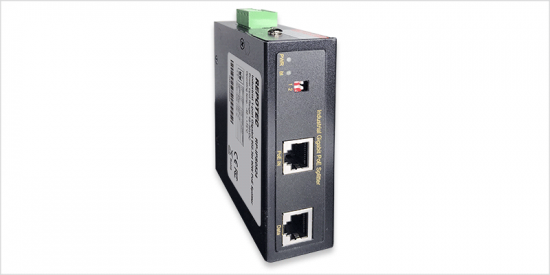

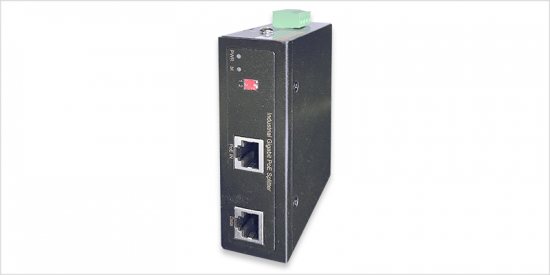

The RP-IPS0524 is an Industrial 1-port Gigabit 802.3bt 90W PoE Splitter, designed for reliable performance in demanding environments. It features one 10/100/1000M TX port for PoE IN and one 10/100/1000M TX port for DATA OUT, efficiently splitting power and data from PoE sources.

With a PSE input range of 15W to 90W, the RP-IPS0524 provides selectable output voltages of 5VDC, 6VDC, 12VDC, or 24VDC, configurable via a DIP switch, supporting current outputs of 2.5A or 5A. It is fully compliant with 60W uPoE and 95W Power over HDBaseT (PoH) standards, ensuring broad compatibility with various PoE configurations. RP-IPS0524 excels in adaptability, functioning as a reliable PoE solution even in the absence of a DC power source.

RP-IPS0524 Its rugged design allows it to operate seamlessly in temperatures ranging from -40 to +75°C, providing a stable network connection in harsh environmental conditions. Whether utilized in industrial settings or other challenging scenarios, this PoE Splitter offers a dependable and efficient solution for powering and transmitting data over Gigabit networks.

• 1 x 10/100/1000M TX for PoE IN + 1 x 10/100/1000M TX for DATA OUT
• Compliant with 60W uPoE standard
• Compliant with 95W Power over HDBaseT (PoH) standard

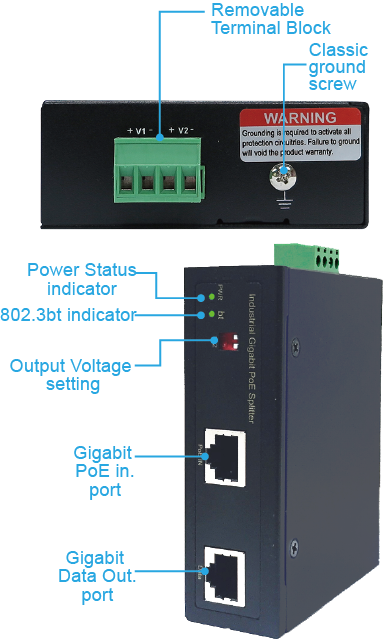

• Output Voltage: Selectable 5VDC (5A), 6VDC (5A), 12VDC (5A) or 24VDC (2.5A) by DIP Switch (with 90W PoE input)

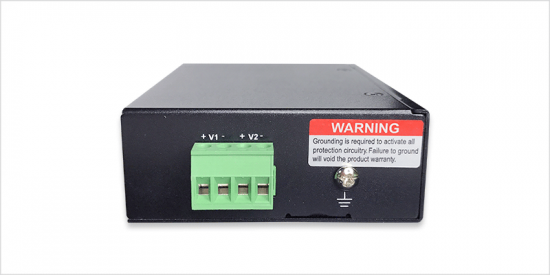

• Provide 4 pin terminal block for power output
• Operating temp.: -40 to +75°C
