RP-IPE201


RP-IPE201
Industrial Gigabit 802.3at PoE Extender

Datasheet
Manual

  • RP-IPE201 equips with 1 PD input to power up 1 Giga PSE output. Powered by the PSE source, RP-IPE201 accepts up to 95W of input from a PSE source and can provide 15W, 30W or 60W of power output to the target PD device.

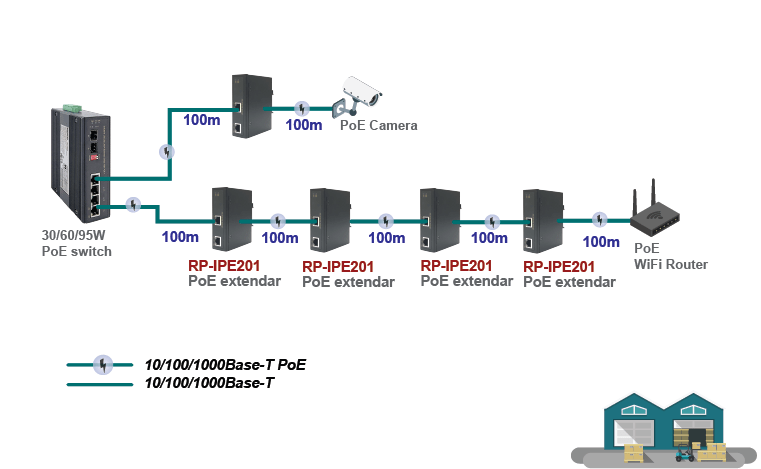

    RP-IPE201 can not only extends the range of the PoE link to 100 m to power PDs over long distances, but also extend the range of PSE equipment to an additional 400m by cascading up to 4 extenders for a total range of 500m via CAT 5e/6 Ethernet cabling.

    With IP30 industrial case protection, RP-IPE201 can operate in -40~75°C indoor and outdoor environments with long-term reliability and durability.

    • Complies with IEEE802.3af/at Standard
    • Supports 10/100/1000Mbps data transmission
    • Complete unit does not require power adapter
    • Support Plug-and-play for the devices without any configuration
    • Built-in hardened PoE and PD controller
    • Can be cascaded up to 4 units or 500 meters at PD input 56V



  • Standards
    • IEEE 802.3 10Base-T Ethernet
    • IEEE 802.3u 100Base-TX Fast Ethernet
    • IEEE 802.3ab 1000Base-T Gigabit Ethernet
    • IEEE 802.3x Flow Control and Back Pressure
    • IEEE 802.3af for PoE
    • IEEE 802.3at for PoE+
    Interface
    • 1 x RJ-45 10/100/1000BaseT 95W PD input port
    • 1 x RJ-45 10/100/1000BaseT 60W PSE output port
    Switch Architecture
    • Back-plane (Switching Fabric): 4Gbps
    Data Processing
    • Store and forward
    Flow Control
    • IEEE 802.3x Flow Control and Back Pressure
    Jumbo Frame
    • 9KB
    MAC Address Table Size
    • 2K
    Packet Buffer Size
    • 1Mbits
    Network Cable
    • UTP/STP above Cat.5e Cable, EIA/TIA-568 (100m)
    Protocol
    • CSMA/CD
    LED Indicators
    • PoE OUT (Green): ON-PSE is activated and PD is detected
    • PD IN (Green): ON-Power is detected
    • LNK (Green): ON-TX port is detected
    • SPEED(Amber): ON-Giga Speed is detected
    Reverse polarity protection
    • Present
    Overload current protection
    • Present
    Power Consumption
    • 2.7W without PoE load
    PD Power Input
    • 15W/30W/60W/95W
    PoE Power
    • 15W/30W/60W per PSE
    • Maximum total PSE power output 60W
    Environment
    • Operating temperature: -40°C~75°C
    • Storage temperature: -40°C ~85°C
    • Operating Humidity: 5% to 95% (Non-Condensing)
    Dimension
    • 103.5 x 32 x 81.5 mm (LxWxD)
    Housing
    • Rugged Aluminum, IP30 Protection
    Installation
    • DIN Rail and Wall Mount Design
    Safety
    • IEC EN60950-1
    EMC
    • CE, FCC, EN 55032/24
    EMI
    • FCC Part 15 Subpart B Class A, CE EN 55022 Class A
    EMS
    • IEC 61000-4-2 ESD: Contact: 6KV; Air: 8KV
    • IEC 61000-4-4 EFT: Power: 2KV; Signal: 2KV
    • IEC 61000-4-5 Surge: Power: 2KV; Signal: 2KV
    Vibration
    • EN 50155 / EN 60068-2-6
    Shock
    • EN 50155 / EN 60068-2-27
    Free Fall
    • EN 50155 / EN 60068-2-32

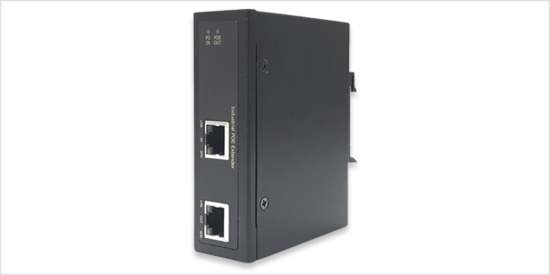

  • RP-IPE201  Industrial 2-Port Gigabit PD/PSE PoE Extender
