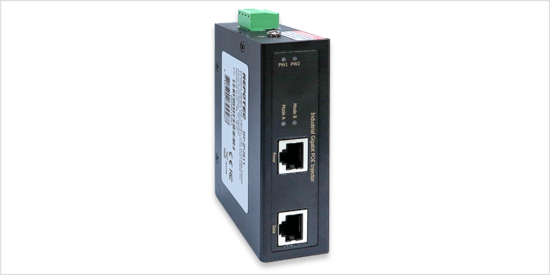

30W Industrial Gigabit PoE+ Injector

  • RP-IPJ811 is an Industrial Gigabit PoE+ Injector, provides PoE power budget up to 30W.  The device supports 10/100/1000Mbps data transmission and is powered with 48-56 Volts DC.

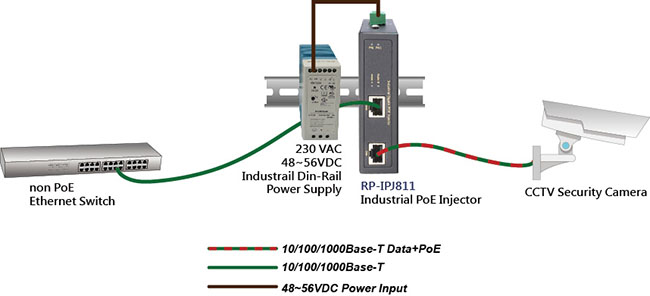

    RP-IPJ811 is well suited for applications in deploying IP surveillance, traffic monitoring and for a broad range of applications. It is being rigorously tested for your Security, Transportation and Telco application in climatically demanding environments with wide temperature range from -40 to 75°C. With IP30 industrial case protection, the device provides a high level of immunity against corrosion and electromagnetic interference.  RP-IPJ811 also allows either DIN rail or wall mounting for efficient use of cabinet space.


    • One port 10/100/1000 Base-T (Data) for connection to the Ethernet Switch
    • One port 10/100/1000 Base-T PoE (Power/Data) for connection to the PoE device (PD)
    • Built-in hardened POE Controller
    • Supports 802.3af (15.4W) and 802.3at (30W) PoE Power Output
    • Max total PoE power 36watts at 56VDC input
    • Support redundant power
    • Reverse polarity protection
    • Overload current protection
    • IP30 Rugged Aluminum housing design
    • Working in extreme environment -40 to +75°C

  • Standards
    • IEEE 802.3 10Base-T Ethernet
    • IEEE 802.3u 100Base-TX Fast Ethernet
    • IEEE 802.3ab 1000Base-T Gigabit Ethernet
    • IEEE802.3af for POE
    • IEEE802.3at for POE+
    • 1 x RJ-45 10/100/1000BaseT(X) Data
    • 1 x RJ-45 10/100/1000BaseT(X) PSE Output power
    Network Cable
    • UTP/STP above Cat.5e Cable, EIA/TIA-568 10-ohm (100m)
    • CSMA/CD
    LED Indicators
    • PW1 (Green): ON-Power is detected
    • PW2 (Green): ON-Power is detected
    • Mode A (Green): For End-Span PoE power 1,2,3,6
    • Mode B (Green): For Mid-Span PoE power 4,5,7,8
    POE Pin Assignment
    • Mode A model,  V+, V+, V-, V- for pin 1, 2, 3, 6
    Reverse polarity protection
    • Present
    Overload current protection
    • Present
    Power Consumption
    • 1W @48 VDC full load, Without POE
    Power Supply
    • Redundant Dual DC 48V-56V power input
    • PoE power input 48-56VDC
    POE power
    • Max total PoE power 36watts at 56VDC input
    Removable Terminal Block
    • Provide 4 pin terminal block
    • Wire range: 0.34mm^2 to 2.5mm^2
    • Solid wire (AWG):12-24/14-22
    • Stranded wire(AWG): 12-24/14-22
    • Torque:5lb-In/0.5Nm/0.56Nm
    • Wire Strip length: 7-8mm
    • Operating temperature : -40°C~75°C
    • Storage temperature: -40°C ~85°C
    • Operating Humidity: 5% to 95% (Non-Condensing)
    • 103.5 x 32 x 81.5 mm (LxWxD)
    • Rugged Aluminum, IP30 Protection
    • DIN Rail and Wall Mount Design
    • CE, FCC
    • FCC Part 15 Subpart B Class A, CE EN 55022 Class A
    • IEC EN60950-1

  • RP-IPJ811 30W Industrial Gigabit PoE+ Injector, 48-56VDC
