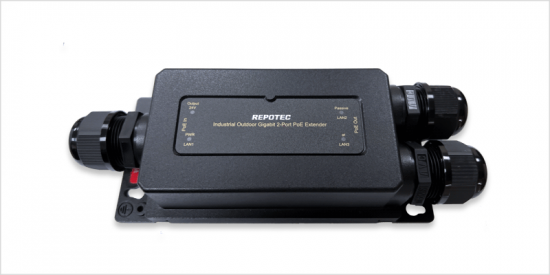

RP-IPE302B

RP-IPE302B is an industrial IP67-level PoE extender, and it is equipped with 1 port 802.3bt PoE++ to 1-port 802.3bt PoE output and 1 port 802.3at PoE output. RP-IPE302B can obtain a maximum of 90 watts of PoE power from the input port and provide output port total PSE power maximum 60W.

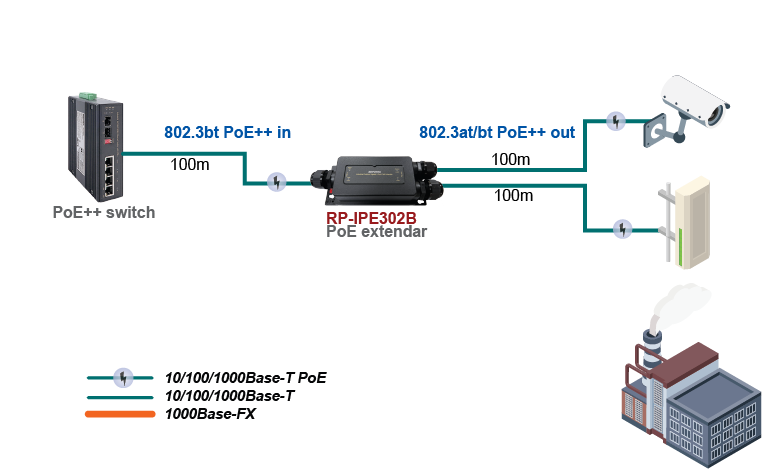

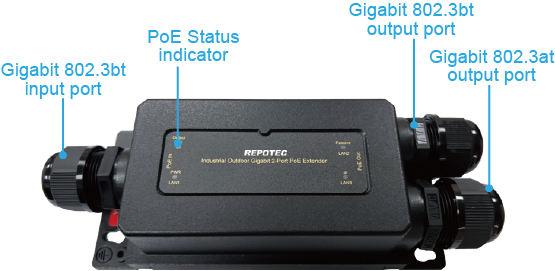

Three RJ45 ports of RP-IPE302B, one is used as PD input, and the other two are used as PSE output, which makes the operation of RP-IPE302B not complicated, simple plug and play. This not only improves efficiency, but also expands the transmission range of PoE to 100 meters.

The IP67 protection grade shell makes RP-IPE302B have better moisture-proof, dust-proof, as well as better resistance to cold and heat, which makes RP-IPE302B adapt to more outdoor harsh environments.

• Complies with IEEE802.3af/at/bt Standard
• IP67-rated aluminum case, protection level IP67
• Complete unit does not require power adapter
• One 90W PD Input, Two PSE output
• Data and power carried over the same cable
• Complete unit does not require power adapter
• Support Plug-and-play for the devices without any configuration
• Support 10/100/1000Mbps data transmission
• 10/100/1000Mbps data transmission and PoE power supply distance up to 100M
• Operating temperature: -40°C~75°C
