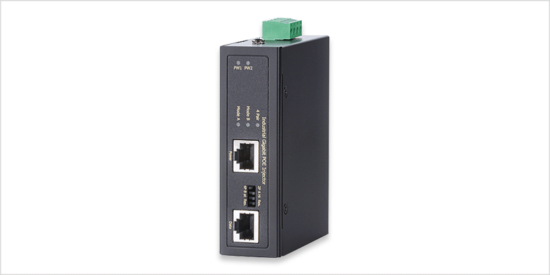

60W Industrial Gigabit PoE+ Injector


  • The RP-IPJ811-60W a high power single port Industrial POE Injector provides PoE power budget up to 60W.  The device supports 10/100/1000Mbps data transmission and is powered with 48-56 Volts DC.

    The built-in 4 pin DIP switches are able to select POE for Mode A or Mode B, to select standard IEEE802.3at 30Watts or high power 36Watts, and to select 2 pair or 4 pair for 30/36Watts or 60/72Watts power output. This is possible through the use of all four pairs of twisted-pair cables.

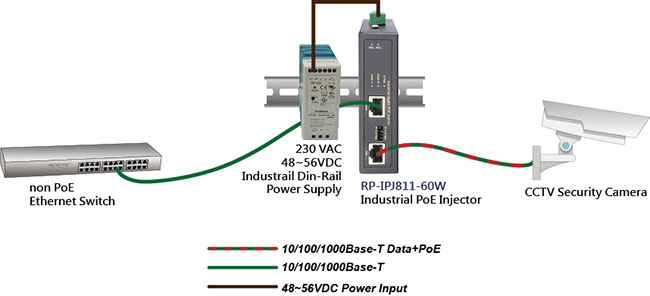

    RP-IPJ811-60W is well suited for applications in deploying IP surveillance, traffic monitoring and for a broad range of applications. It is being rigorously tested for your Security, Transportation and Telco application in climatically demanding environments with wide temperature range from -40 to 75°C. With IP30 industrial case protection, the device provides a high level of immunity against corrosion and electromagnetic interference.  RP-IPJ811-60W also allows either DIN rail or wall mounting for efficient use of cabinet.


    • One port 10/100/1000 Base-T (Data) for connection to the Ethernet Switch
    • One port 10/100/1000 Base-T PoE (Power/Data) for connection to the PoE device (PD)
    • Built-in hardened POE Controller
    • Selectable Mode A End-Span or Mode B Mid-Span
    • Selectable power output for 30W or 60W
    • Selectable Mode for standard POE or ultra POE
    • Deliver ultra high power up to 60Watts
    • Maximum POE power 72watts at 48VDC input
    • Support redundant power
    • Reverse polarity protection
    • Overload current protection
    • IP30 Rugged Aluminum housing design
    • Working in extreme environment -40 to +75°C


  • Standards
    • IEEE 802.3 10Base-T Ethernet
    • IEEE 802.3u 100Base-TX Fast Ethernet
    • IEEE 802.3ab 1000Base-T Gigabit Ethernet
    • IEEE802.3af for POE
    • IEEE802.3at for POE+
    • 1 x RJ-45 10/100/1000BaseT(X) Data
    • 1 x RJ-45 10/100/1000BaseT(X) PSE Output power
    Network Cable
    • UTP/STP above Cat.5e Cable, EIA/TIA-568 10-ohm (100m)
    • CSMA/CD
    LED Indicators
    • PW1 (Green): ON-Power is detected
    • PW2 (Green): ON-Power is detected
    • Mode A (Green): ON-End Span PD detected
    • Mode B (Green): ON-Mid Span PD detected
    • 4 Pair (Amber): ON-60W PSE is in active mode;  OFF-30W PSE is in active mode
    POE Pin Assignment
    • Mode A (End-Span): V+, V+, V-, V- for pin 1, 2, 3, 6 (Default)
    • Mode B (Mid-Span): V+, V+, V-, V- for pin 4, 5, 7, 8
    DIP Switch
    • DIP1: ON-4 pair (60/72Watts) (default) ; OFF-2 pair (30/36Watts)
    • DIP2: ON-Mode B Mid-Span ; OFF-Mode A End-Span (default)
    • DIP3: ON-IEEE802.3at 30W ; OFF-High power 36W (default)
    • DIP4: Reserved
    Reverse polarity protection
    • Present
    Overload current protection
    • Present
    Power Consumption
    • 1 W@48 VDC full load, Without POE
    Power Supply
    • Redundant power source, 48-56VDC Power Input
    POE power
    • Maximum POE power 72watts at 48VDC input
    Removable Terminal Block
    • Provide 4 pin terminal block
    • Wire range: 0.34mm^2 to 2.5mm^2
    • Solid wire (AWG):12-24/14-22
    • Stranded wire(AWG): 12-24/14-22
    • Torque:5lb-In/0.5Nm/0.56Nm
    • Wire Strip length: 7-8mm
    • Operating temperature : -40°C~75°C
    • Storage temperature: -40°C ~85°C
    • Operating Humidity: 5% to 95% (Non-Condensing)
    • 103.5 x 32 x 81.5 mm (LxWxD)
    • Rugged Aluminum, IP30 Protection
    • DIN Rail and Wall Mount Design
    • CE, FCC
    • FCC Part 15 Subpart B Class A, CE EN 55022 Class A
    • IEC EN60950-1

  • RP-IPJ811-60W  60W Industrial Gigabit PoE+ Injector, 48-56VDC
