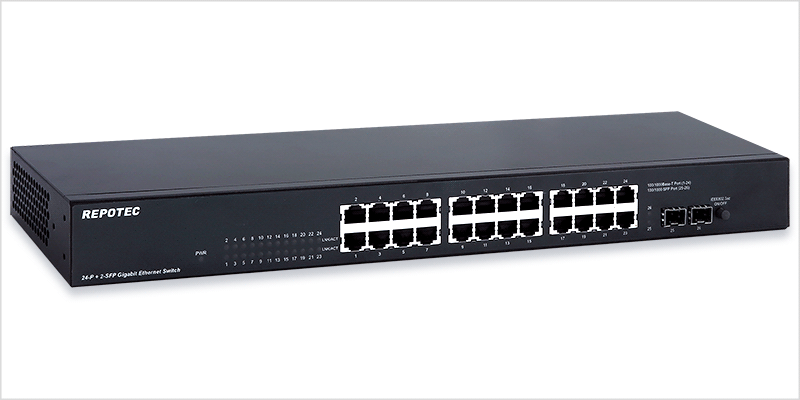

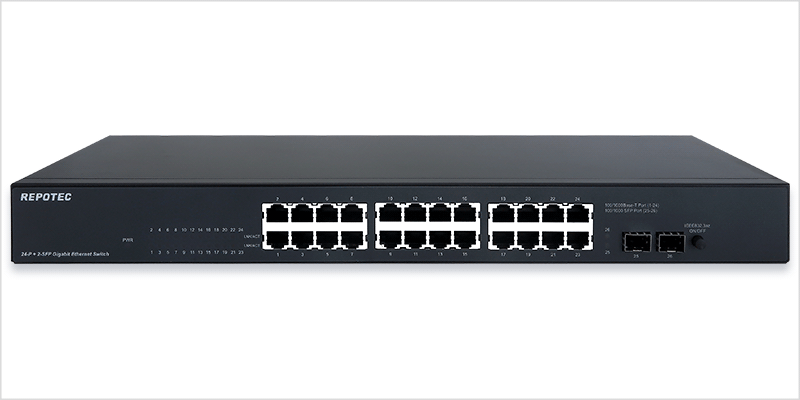

24-P + 2-SFP slot Gigabit Ethernet Switch

  • As a powerful, high-performance Gigabit Ethernet switch with 24 10/100/1000 Mbps ports, 2 SFP (mini GBIC) ports and one button to turn on and off the IEEE802.3az function, RP-G2602D provides you with a cost-effective and space-saving solution for expanding your network. The gigabit ports can lead you to a real gigabit connection, expediting the transference of larger and higher bandwidth-needed files in an easy way. With the two mini GBIC gigabit ports, you can add fiber-optic connectivity for connecting to other network switches to obtain long-distance communication.

    Automatic MDI/MDI-X crossover detection ensures no need to worry about the cable type by automatically switching the port’s receive and transmit connections with plugged in devices. Also, flow control ensures the correctness of data transmitting. Moreover, the 802.3x and backpressure flow control mechanisms work respectively for full and half duplex modes. Last but not least, the rich diagnostic LEDs on the front panel show the operating status of individual port and the whole system clearly.

    With RP-G2602D, the access to reliable network is at your fingertips.

    • 24 ports gigabit non-blocking switch architecture.
    • 2 SFP ports for optional fiber connection
    • Push ON/OFF button to enable/disable IEEE802.3az
    • Supports N-Way protocol for speed (10/100/1000Mbps) and duplex mode (Half/Full) auto-detection
    • Supports MDI/MDI-X auto crossover and polarity correction
    • Supports back-pressure (half duplex) and flow control (IEEE 802.3x)
    • Store-and-forward architecture filters fragment & CRC error packets
    • Supports 10K bytes jumbo frame
    • Supports IEEE 802.3az Energy Efficient Ethernet
    • Rack mountable

  • Standards
    • IEEE802.3,802.3u,802.3ab,802.3z
    • IEEE802.3x Flow Control
    • IEEE802.3az Energy Efficient Ethernet
    • IEEE802.1p Cos
    • 24 x 10/100/1000Mbps RJ-45 ports
    • 2 x SFP ports
    • IEEE802.3az push button
    Transmission Mode
    • 10/100Mbps: Full-duplex(200mbps), Half-duplex(100mbps)
    • 1000Mbps: Full-duplex(2000mbps)
    MAC Address Table
    • 8K
    Jumbo Frame
    • 10K bytes
    Buffer Memory
    • 4.1M bit
    LED Indications
    • System: Power
    • Ports: Link/ACT
    Power Supply

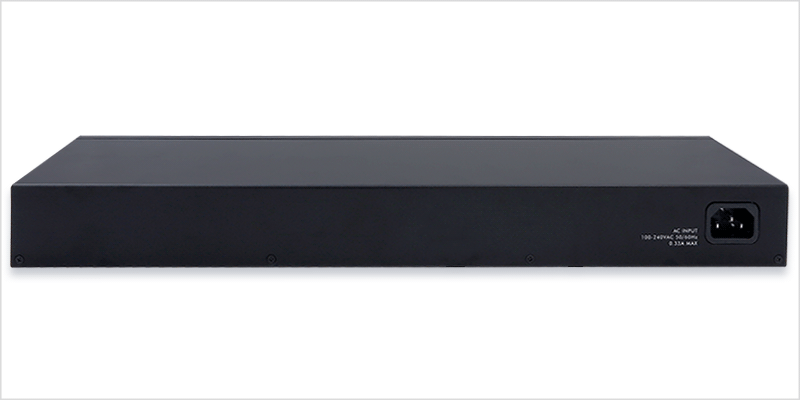

    • Internal Power Supply 100~240VAC, 50~60Hz
    • Operating temperature : 0°C to 50°C
    • Operating Humidity:10% to 90% (Non-Condensing)
    • 441 * 131 * 44mm
    • FCC, CE Class A, LVD EN60950-1

  • RP-G2602D  24-P + 2-SFP slot Gigabit Ethernet Switch
