RP-G1416D

RP-G1416D

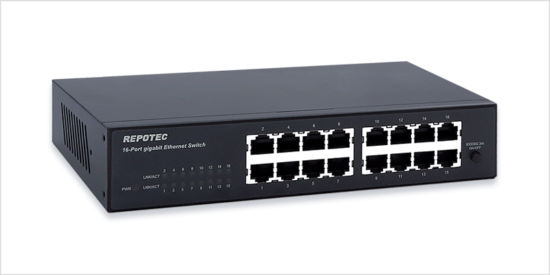

16-P Gigabit Ethernet Switch

  • RP-G1416D provides 16 10/100/1000Mbps Gigabit ports that lead you to a real Gigabit connection. Users are now able to transfer large and high bandwidth-needed files faster and hence get a real efficiency improvement.

    RP-G1416D offers users with fast and reliable network. The store-and-forward architecture filters errors and forwards packets in a non-blocking environment. Flow control ensures the correctness of data transmitting. The 802.3x and backpressure flow control mechanisms work respectively for full and half duplex modes.

    RP-G1416D features with easy installation and maintenance. It supports N-Way auto-negotiation protocol, which detects the networking speed (either 10/100/1000 Mbps) and the duplex modes (Full or Half duplex mode) automatically and do an immediately adjustment to advance the capability and performance. Auto-MDI/MDI-X function alleviates the effort to use crossover cables. Users need not to prepare crossover cables for equipment connectivity. Also, rich diagnostic LEDs are provided for users to get real-time information of the connection status that helps to do quick response and correction.

    • Supports MDI/MDI-X auto crossover
    • Supports full and half duplex operation on all ports
    • Supports back-pressure (half duplex) and flow control (IEEE 802.3x)
    • Wire-speed packet filtering and forwarding rate
    • Store-and-forward architecture filters fragment & CRC error packets
    • Support s 802.1p CoS
    • Supports EEE(802.3az) feature on/off push button for power saving or performance mode
    • Supports 8K MAC address entries in whole system
    • 256K packet buffer memory
    • Supports 9K bytes Jumbo Frames
    • Fanless design for silent operation

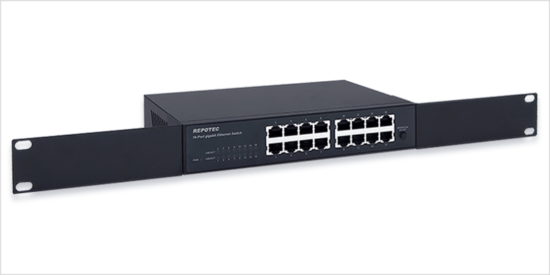

    • With 19" Rack Mount Kits
    • With 10" Rack Mount Kits(optional)

  • Standard
    • 802.3 Ethernet, 802.3u Fast Ethernet, 802.3ab Gigabit Ethernet
    • 802.3x flow control for full duplex
    • 802.3az Energy Efficient Ethernet support
    • 802.1p CoS
    Interface
    • 16 * 10/100/1000Mbps RJ-45 switching ports
    NWay Protocol Support
    • Network speed: 10 / 100 / 1000Mbps
    • 10Mbps: Full/Half duplex
    • 100Mbps: Full/Half duplex
    • 1000Mbps: Full duplex
    MAC Address Table
    • 8K
    Jumbo Frame
    • 9K bytes
    Buffer memory
    • 256KBytes

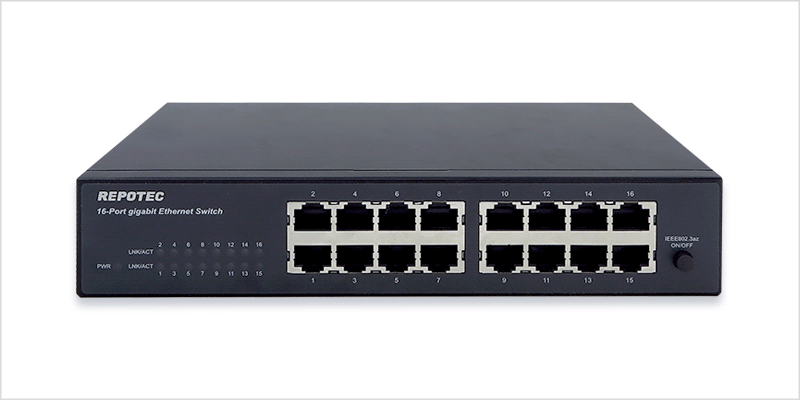

    LED Indications
    • Per Unit: Power and System status each
    • Per Port: Activity/Link
    Temperature
    • Operating: 0°C ~ 50°C
    Humidity
    • Operating: 10% ~ 90% RH, non-condensing

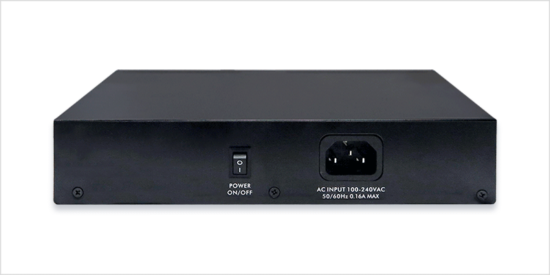

    Power Supply
    • Internal Power supply 100~240VAC, 50/60 Hz
    Dimensions
    • 216 x 133 x 42 mm (8.5-inch desktop size)
    Certification
    • FCC, CE

  • RP-G1416D  16-P Gigabit Ethernet Switch
