RP-MCR314


RP-MCR314

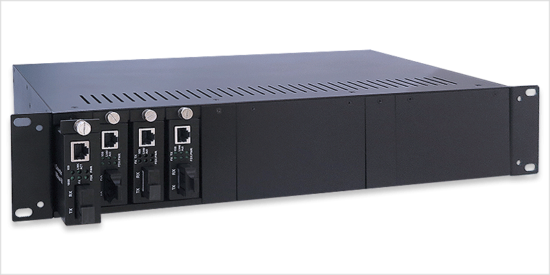

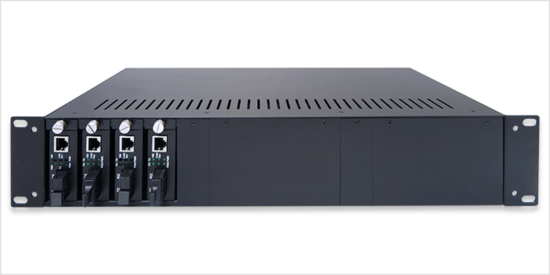

14-Slot Media Converter Rack

  • RP-MCR314 is a unique designed 19" rack chassis to accommodate RP-MC3xx series Media Converter. It allows the connectivity of up to 14 RP-MC3xx Fast Ethernet, Gigabit Ethernet Media Converters in one chassis. It simplifies the fiber-optic wiring structure and eases the maintenance of media conversion.

    Each converter is hot-swappable without causing an interruption to other converters.  A redundant power supply contains two power supply units inside it, keeping the power supplies work seamless.

    • The configuration of active/standby power supply ensures uninterruptible operation of the system
    • Provide two power supplies (AC 220V, and DC 48V), enabling the system can work under many operating environments
    • Supporting simultaneous operation of several module-type media converters at different rates, which greatly improves system adaptability
    • Each card supports hot swapping

  • Slots Number
    • 14 slots for slide-in converter
    Structure
    • 2U rack
    LED Indicator
    • POWER (power supply)
    Power Supply

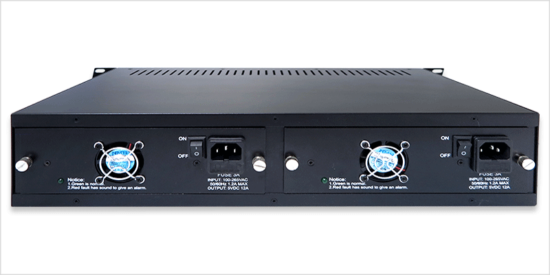

    • 2 * hot-swappable power supply
    • AC Input: AC 85~265V; frequency: 50/60 Hz
    • DC Input: DC -36~72V
    Power output
    • DC5V, 16A
    power consumption
    • 95W
    Environment
    • Operating Temperature: -10~55°C
    • Store Temperature: -40~70ºC
    • Operating Humidity: 5~90% (Non-Condensing)
    Dimension
    • 427 * 315 * 91mm (LxWxH)

  • RP-MCR314 14-Slot Media Converter Rack for RP-MC3xx series
    MOD-314PSU 220VAC Redundant Power Supply for RP-MCR314
