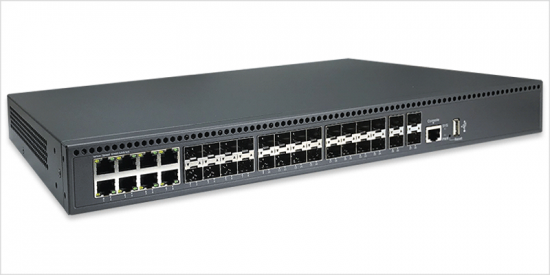

16-P SFP(100/1G) + 8-SFP/TP combo + 4-SFP(1G/2.5G/10G) L2+ Managed Switch
Model: RP-GS8320IX-8GC
- Layer 3 routing, DHCP server.
- Comprehensive QoS support.
- VLANs, security, rate control, port config.
- 10GbE uplink for large data transfer
- Powerful security for VoIP, video streaming
- Layer 3 features: IPv4/IPv6 routing, DHCP server
- Port aggregation: GE, 2.5GE, 10GE(static/dynamic)
- Access/trunk/hybrid, Mac/IP/protocol-based
- QinQ support: port/VLAN/flow-based
- Port mirroring: many-to-one
- STP, RSTP, MSTP, G.8032 ERPS
- LLDP, SNMP, web, Syslog, RMON, NTP
RP-GS8320IX-8GC is a Layer 2+ managed Gigabit switch which supports 16-P SFP (100/1G) + 8-SFP/TP combo + 4-SFP (1G/2.5G/10G), providing high-density performance and Layer 3 static routing with a 128 Gbps switching capacity.
RP-GS8320IX-8GC offers comprehensive end-to-end QoS, as well as flexible and rich management and security settings through SNMP, HTTP, and Telnet interfaces. It supports many L2 switch management functions, such as 802.1Q VLAN, 802.1x Security, Rate Control, Port Configuration, Port Mirroring, Port Statistics, and QoS functions. These features meet the high-speed, secure, and smart requirements of enterprise networks at a cost-effective price.

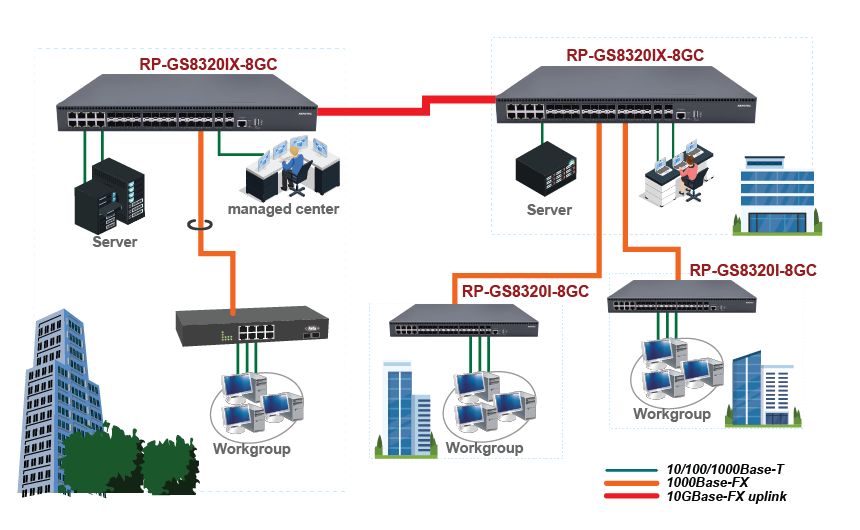

RP-GS8320IX-8GC comes with four 10GbE connectivity options. With a 10GbE uplink, the switch can handle extremely large amounts of data in a secure topology, connecting to an enterprise backbone or high-capacity servers. The powerful network security features also enable RP-GS8320I-8GC to perform effective data traffic control for ISP and enterprise VoIP, video streaming, and multicast applications.
- Supports IPv4/IPv6 static routing, DHCP server
- Supports GE, 2.5GE, and 10GE port aggregation, static and dynamic aggregation
- Supports access, trunk, hybrid mode, and VLAN classification
- Supports port-based, VLAN-based, and flow-based QinQ
- Supports many-to-one port mirroring
- Supports STP, RSTP, MSTP, G.8032 ERPS protocol
- IGMP snooping supports
- Supports class, remarking, SP and WRR queue scheduling, ingress/egress port-based rate-limiting, and policy-based QoS
- Supports Dot1x, port authentication, MAC authentication, RADIUS service, port security, IP source guard, IP/Port/MAC binding, ARP check, and ARP packet filtering for illegal users and port isolation
- Supports LLDP, user management, login authentication, SNMPV1/V2C/V3, web management, Syslog, RMON alarm, event, and history records, NTP, temperature monitoring, Ping, Tracert, optical transceiver DDM function, TFTP Client, Telnet Server, and SSH Server
- Firmware update, configuration backup/restore through Web GUI, FTP, and TFTP
Standards |
|
Interface |
|
Forwarding Capacity |
|
Switching Capacity |
|
Jumbo frames |
|
MAC Table |
|
Layer 2 function | |
Port aggregation |
|
Port features |
|
VLAN |
|
VLAN Classification |
|
QinQ |
|
Port mirroring |
|
IGMP Querier |
|
Layer 2 ring network protocol |
|
DHCP |
|
Multicast |
|
ACL |
|
QoS |
|
Security |
|
Management and maintenance |
|
Layer 3 features | |
DHCP server |
|
ARP |
|
IPv4/IPv6 |
|
Mechanical structure | |
Fan |
|
Power surge protection |
|
Ethernet ports surge protection |
|
Power Consumption |
|
Power Supply |
|
Environment |
|
Dimension |
|
Certification |
|
RP-GS8320IX-8GC | 16-P SFP(100/1G) + 8-SFP/TP combo + 4-SFP(1G/2.5G/10G) L2+ Managed Switch |
