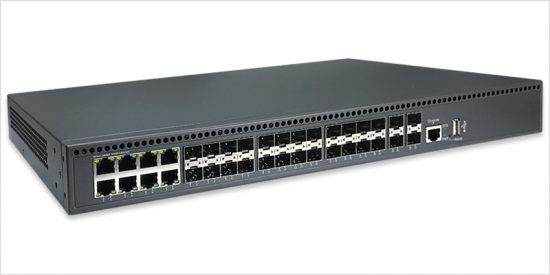

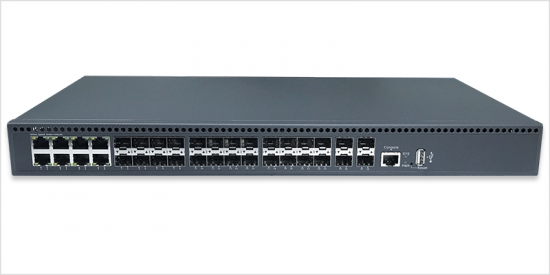

16-P SFP(100/1G) + 8-SFP/TP combo + 4-SFP(1G/2.5G) L2+ Managed Switch
Model: RP-GS8320I-8GC
- 16-P SFP (100/1G), 8-SFP/TP, 4-SFP (1G/2.5G)
- Layer 3 routing, DHCP server
- Comprehensive QoS support
- VLANs, security, rate control, port config
- Various VLAN modes and classification
- QinQ: port-based, VLAN-based, flow-based
- Many-to-one port mirroring
- STP, RSTP, MSTP, G.8032
- IGMP snooping for multicast
- Security: Dot1x, MAC auth, port security, IP guard
- SNMP, web management, LLDP, syslog, RMON
RP-GS8320I-8GC is a Layer 2+ full gigabit managed switch which supports 16-P SFP (100/1G) + 8-SFP/TP combo + 4-SFP (1G/2.5G), providing high-density performance and Layer 3 static routing with a 68Gbps switching capacity.
RP-GS8320I-8GC offers comprehensive end-to-end QoS, as well as flexible and rich management and security settings through SNMP, HTTP, and Telnet interfaces. It supports many L2 switch management functions, such as 802.1Q VLAN, 802.1x Security, Rate Control, Port Configuration, Port Mirroring, Port Statistics, and QoS functions. These features can meet the high-speed, secure, and smart requirements of enterprise networks at a cost-effective price.
The powerful network security features also enable RP-GS8320I-8GC to perform effective data traffic control for ISP and enterprise VoIP, video streaming, and multicast applications.
- Supports IPv4/IPv6 static routing, DHCP server
- Supports GE ports, 2.5GE port aggregation, static and dynamic aggregation
- Supports access, truck , hybrid mode and VLAN classification, including the Mac based VLAN, IP based VLAN and protocol based VLAN
- Supports port-based, VLAN-based and flow-based QinQ
- Supports STP, RSTP, MSTP, G.8032 ERPS protocol, single ring, sub ring
- Multicast: Supports IGMP snooping
- QoS class, remarking, Supports SP, WRR queue scheduling, Ingress/Engress port-based rate-limit and policy-based QoS
- Support Dot1x,port authentication, mac authentication, RADIUS service; Support port-security, ip source guard,IP/Port/MAC binding, arp-check and ARP packet filtering for illegal users and port isolation
- Supports LLDP, user management and login authentication; SNMPV1/V2C/V3; web management,HTTP1.1,HTTPS; Syslog and alarm grading ; RMON
- Firmware update, configure backup/restore through Web GUI, FTP and TFTP
Standards |
|
Interface |
|
Forwarding Capacity |
|
Switching Capacity |
|
Jumbo frames |
|
MAC Table |
|
Layer 2 function | |
Port aggregation |
|
Port features |
|
VLAN |
|
VLAN Classification |
|
QinQ |
|
Port mirroring |
|
IGMP Querier |
|
Layer 2 ring network protocol |
|
DHCP |
|
Multicast |
|
ACL |
|
QoS |
|
Security |
|
Management and maintenance |
|
Layer 3 features | |
DHCP server |
|
ARP |
|
IPv4/IPv6 |
|
Mechanical structure | |

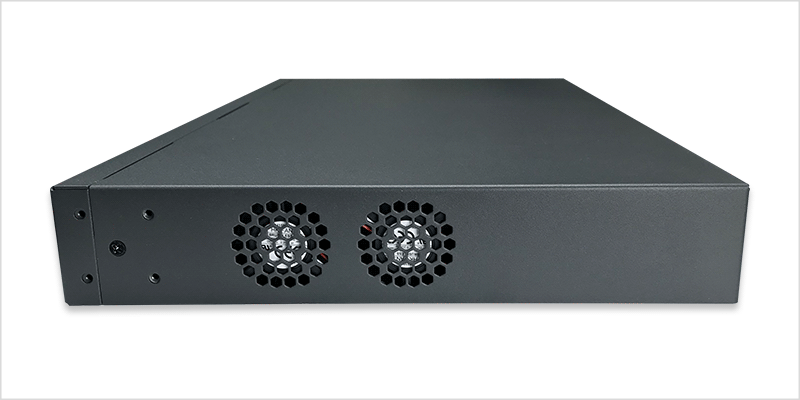

Fan |
|
Power surge protection |
|
Ethernet ports surge protection |
|
Power Consumption |
|
Power Supply |
|
Environment |
|
Dimension |
|
Certification |
|
RP-GS8320I-8GC | 16-P SFP(100/1G) + 8-SFP/TP combo + 4-SFP(1G/2.5G) L2+ Managed Switch |
