L2/L2+ Managed Switch - RP-G2404I+

Overview

Features

Specifications

Applications

Download

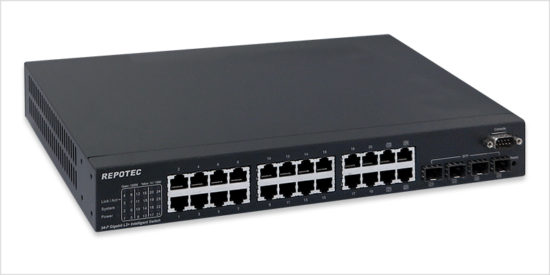

RP-G2404I+ is a highly efficient and cost-effective Layer 2 Ethernet management switch. It offers a wide range of features and capabilities to meet the demands of modern networking. With 24 10/100/1000Mbps TX ports and 4 SFP ports, it provides ample connectivity options for various network devices and configurations, ensuring seamless communication and efficient data transfer.

This switch excels in delivering comprehensive Layer 2 switching capabilities, including 802.1Q VLAN for enhanced security and efficient traffic management. It also features advanced functionalities such as 802.1x Port Security, Rate Control, Port Configuration, Port Mirroring, Port Statistics, QoS functions, ACL, Spanning Tree, DHCP Relay, and IGMP QoS functions. These capabilities empower network administrators to optimize performance, ensure reliable connectivity, and streamline network management.

RP-G2404I+ establishes a reliable infrastructure for critical applications, enhancing availability, safeguarding information, and optimizing network bandwidth. Designed for small- and medium-sized businesses, it combines affordability and capabilities, enabling high-performance networks within budget constraints. With cost-effective features, the RP-G2404I+ boosts network performance and productivity.

CISCO-like command line interface
IPv6 management
8 priority queues are supported on each port for QoS application
Port-based VLAN, 802.1Q VLAN and Private VLAN
Protected port and LoopBack Detection function
Q-in-Q(double tagging) function
IEEE 802.1x security function, and VLAN assignment, Guest VLAN functions
Static Mac address access limit and Dynamic Mac address number on port
IEEE802.1d & 802.1w & 802.1s
IP Multicast with IGMP snooping / query / fast leave / filtering /group limited /MVR
DHCP Client / DHCP Option 82 Relay / DHCP Snooping function
ACL function for L2 ~ L4 packet control
Ingress/Egress rate control on port
Broadcast/Multicast/Unicast storm control
ARP inspection / IP source guard
RMON 1,2,3,9
SFP Transceiver DDMI function((Phase 2)) / Dual Speed SFP Ports(100/1000Mbps)
Remote port configuration setting and statistics monitoring
Text configuration download and upload
IEEE 802.3az power management / FANless / Green Ethernet

Standards	IEEE802.3(10BaseT Ethernet ), IEEE802.3u(100Base Fast Ethernet), IEEE802.3ab(1000BaseT), IEEE802.3z(1000Base),IEEE802.3x IEEE802.1D, IEEE802.1w, IEEE802.1P, IEEE802.1Q, IEEE802.1x IEEE802.3ad, EEE802.1ad IEEE802.3az Energy Efficient Ethernet

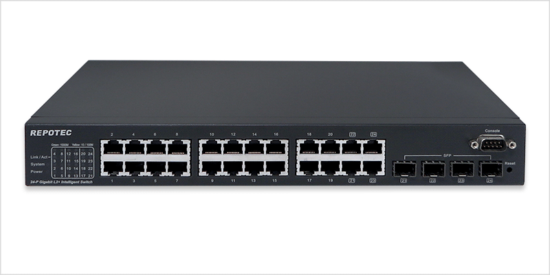

Interface	24* RJ45 ports, with 10/100/1000Mbps, Full/Half duplex auto-negotiation and Auto-MDIX and Force MDI/MDIX function 4* 100/1G SFP Slot shared with Port 21~24 TX ports, auto-detect the connection
Console Port	DB9 console port
CPU	416MHz MIPS 24KEc CPU as the main processor which integrated on switch controller
Memory	Flash: SPI 16MB / RAM: DDRII 128MB
Packet Buffer	512K Bytes
Mac Table Size	8K
Max Packet Size	9600 Bytes
Switching capability	14880pps at 10Mbps 148810pps at 100Mbps 1488095pps at 1Gbps with 64 bytes packets
Switch capacity	48Gbps
Forwarding Rate	35.7Mpps
Port Control	Port speed, duplex mode, and flow control Port frame size (jumbo frames), Maximum ingress frame size (9600 bytes) Port state (administrative status) Port status (link monitoring) Port statistics (MIB counters) Port VeriPHY (cable diagnostics) Power Control
L2 Switching	Auto MAC address learning/aging and MAC addresses (static) IEEE 802.1Q static VLAN, Private VLAN, Port isolation, Port Based VLAN IEEE 802.1ad Provider Bridge IEEE 802.1D STP/802.1w RSTP/802.1s MSTP IEEE 802.3ad Link Aggregation, static and LACP BPDU guard and restricted role, BPDU transparency DHCP client, DHCP snooping, DHCP option 82 relay ARP inspection Port mirroring IP MAC binding
Layer 2 Multicast	IGMPv2, v3 snooping, (1024 groups) IGMP throttling, filtering, and leave proxy MVR
QoS	8 Priority Queues per Port Port Based priority Scheduler priority QoS Control List Storm control for UC, MC, and BC Policing and shaping per port and per queue Ingress Policing:(100-1000000 when the "Unit" is "kbps" or "fps" and 1-3300 when the "Unit" is "Mbps" or "kfps") Egress Shaping:(100-1000000 when the "Unit" is "kbps", and 1-3300 when the "Unit" is "Mbps".) DiffServ (RF 2474) remarking Tag remarking
Security	Port-based 802.1X, Single 802.1X, Multiple 802.1X MAC-based authentication, VLAN assignment, QoS assignment Guest VLAN RADIUS accounting MAC address limit TACACS+ Web and CLI authentication and authorization Authorization ( 15 levels) ACLs for filtering(256 entries), policing, and port copy IP source guard
Synchronization	NTPv4 Client
Power Saving	ActiPHY, PerfectReach Ethernet Energy Efficient power management(EEE)
SFP DDMI	Yes (Phase 2)
Management	HTTP server CLI console port Telnet Management access filtering SSHv2 and HTTPS IPv6 Management System Syslog Software download through Web SNMPv1/v2c/v3 Agent RMON Group 1, 2, 3, and 9 IEEE 802.1AB-2005 Link Layer Discovery, LLDP Text Configuration download or upload sFlow
LED Indicators	Power (Green) System(Green) Link / Act: 1000Mbps (Green); 10/100Mbps (Amber)
Power Consumption	18 Watt Max.

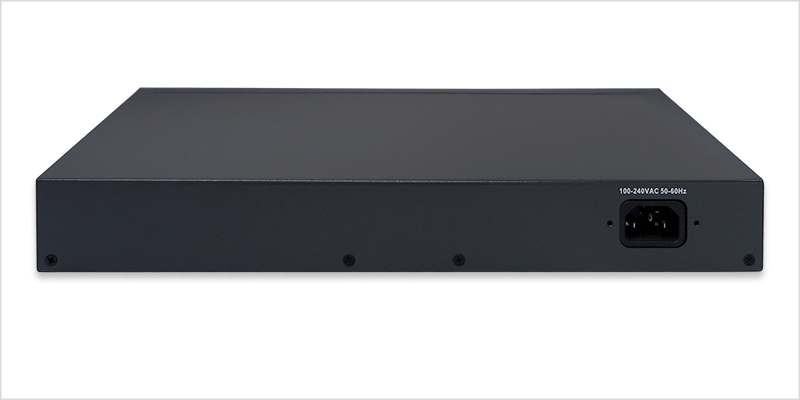

Power Supply	Internal Power supply 100~240VAC, 50/60 Hz
Environment	Operating temperature: 0°C to 50°C Operating Humidity: 10% to 90% (Non-Condensing)
Dimension	330 * 205 * 43 mm
Certification	FCC, CE
