RP-1708BD15


RP-1708BD15
8-P Fast Ethernet + WDM Managed Switch

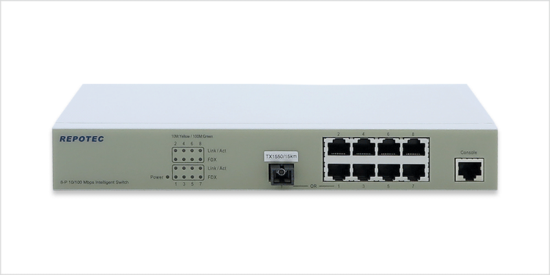

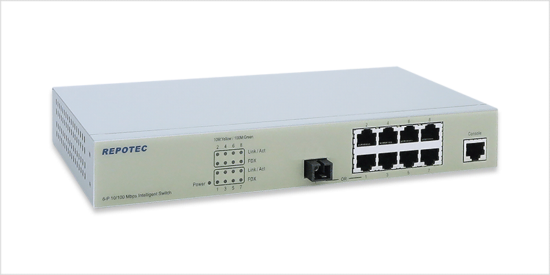

  • This is a cost-effective and high-performance 8-port 10/100 Mbps Ethernet/Fast Ethernet managed switch with Broadcom solution. There are eight RJ-45 connectors and one 100FX connector for the switch - with Port 1 of the switch could be TX or FX port depending on which port is link-up. So this switch could have 8 * TX or 7 * TX +1 * FX active ports, and the TX/FX function of Port 1 is auto-detected. This switch supports remote managed function by SNMP, HTTP and Telnet operations. And it supports lots of functions for a L2 switch managed, e.g. 802.1Q VLAN, 802.1x Port Security, Rate Control, Port Configuration, Port Mirroring, Port Statistics, and QoS functions. Auto MDI-X function is also supported for every TX port of the switch for easy cable connection.

    • Support out-band console and in-band SNMP/Http/Telnet management interface
    • Prevents packet loss with back pressure and IEEE802.3x flow control functions
    • Supports IEEE 802.1p Class of Service with 4-level priority queuing
    • Support Static Mac Address access limit on port
    • Support IEEE 802.1x Port Security function
    • Support IEEE 802.1w Rapid Spanning Tree function
    • Support broadcast/flooding/multicast traffic control
    • Support Loopback detection function
    • Support DHCP client function, Support RMON 1,2,3,9
    • Support Text configuration download and upload
    • Support remote port configuration setting and status monitoring

  • Standards
    • IEEE802.3(10BaseT Ethernet ), IEEE802.3u(100Base Fast Ethernet),
    • IEEE802.1D, IEEE802.1P, IEEE802.1Q, IEEE802.1x
    Switching Capacity
    • 8* RJ-45 10/100Mbps ports, 1* FX port with 100Mbps sharing with 1TX port
    • RJ-45 console port
    • 256K Bytes Packet Buffer, 4K Mac Table, 1536 bytes Max Packet Size
    Flow Control
    • Back pressure for half duplex, IEEE802.3x for full duplex
    Management Security
    • Out-band: Console (Command Line Interface)
    • In-band: SNMP/Telnet/Http
    • SNMP agent: Version. I, II, III, Support MIB II(Interface), Bridge MIB, Etherlike MIB, Private MIB
    VLAN
    • 802.1Q VLAN, 256 co-current groups maximum from eight active VLAN ID blocks
    QoS
    • 4 priority queues per port, Port-based & 802.1p tagged-based/ToS
    • DiffServ priority operation , WRR/SPQ scheduling algorithm
    Spanning Tree
    • Support IEEE 802.1w Rapid Spanning Tree
    Port Mirror
    • Engress/Ingress packets, support DA/SA filtering function
    IEEE 802.1x
    • Support Transparent and Authentication modes
    Rate Control
    • Limit on port for both Ingress/Engress traffic from 64Kbps to 100Mbps
    IP Multicast
    • Support IGMP Snooping and MVR function
    LED Display
    • Per Port: Link/Activity(Speed), FDX, Per Device: Power
    Power Supply

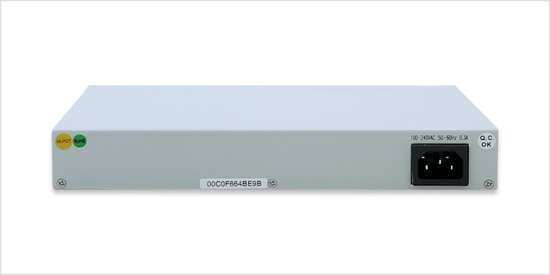

    • Internal Power AC100~240V, 50/60 Hz, Power Consumption: 6.5W
    Environment
    • Operating Temperature: 0°C to 50°C
    • Operating Humidity:5% to 95% (Non-Condensing)
    Dimension
    • 250 * 117 * 37mm
    Certification
    • FCC, CE

  • RP-1708BD15  8-P Fast Ethernet + WDM Managed Switch
