RP-IPG421-12V


RP-IPG421-12V

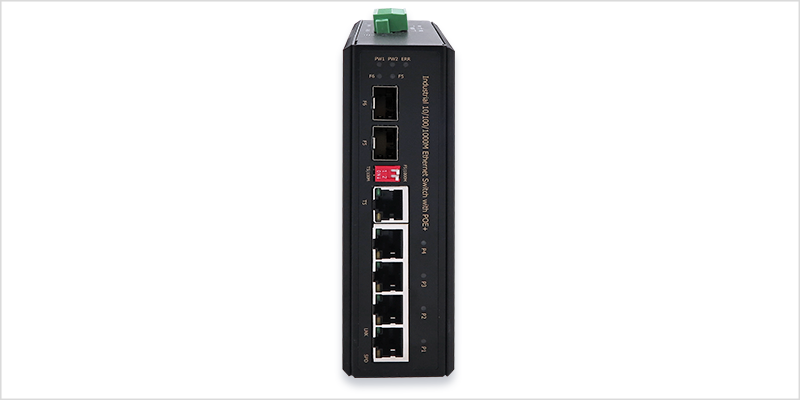

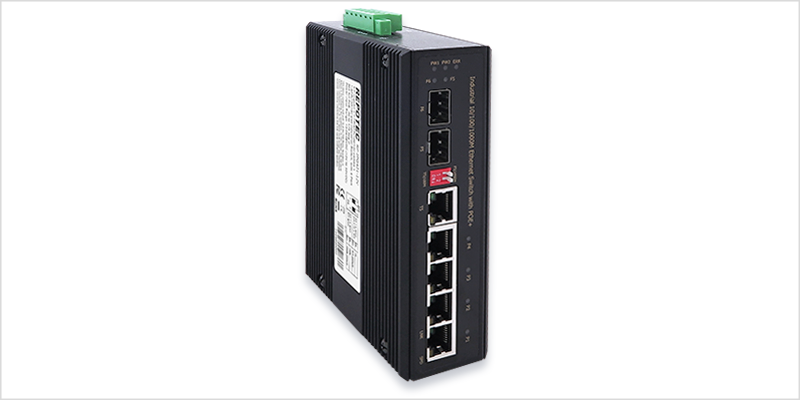

4-P Gigabit + 1-TP/SFP combo + 1-SFP(100/1G) slot Industrial Switch W/ 4-Port PoE+

  • RP-IPG421-12V Industrial Ethernet Switch with PoE+ feature complies with IEEE802.3af and IEEE802.3at. It delivers 30watts power per PoE port and total power budget of 120Watts at 24/48/56VDC, 60W at 12VDC power input to PD devices and 2 SFP slots are supported.

    RP-IPG421-12V provides wide power input voltage range +12 ~ + 56Vdc, it not only boosts up Input Voltage, but also reduces the excessive heat problem to a minimum ,and that secures equipment against unregulated voltage and makes systems safer and more reliable.

    The protection of IP-30 standard industrial case allows for either DIN rail or wall mounting for efficient use of cabinet space. Its wide operating temperature ranges from -40°C to 75°C under harsh environment.

    • Supports PSE. based on IEEE 802.3at up to 30 Watts per port
    • SFP port supports 100Base-FX and 1000Base-X speed
    • Support dual wide range12~56VDC power inputs for power redundancy
    • Support overload current protection
    • Support reverse polarity protection
    • Supports auto-negotiation and auto-MDI/MDI-X
    • Supports store and forward transmission
    • Supports flow control
    • Rugged Aluminum heat sink IP-30 housing design
    • DIN-Rail and wall mounting enabled

  • Standards
    • IEEE 802.3 10Base-T Ethernet
    • IEEE 802.3u 100Base-TX Fast Ethernet
    • IEEE 802.3ab 1000Base-T Gigabit Ethernet
    • IEEE 802.3z 1000Base-X Gigabit Ethernet
    • IEEE802.3x Flow Control and Back Pressure,
    • IEEE802.3af for PoE
    • IEEE802.3at for PoE+
    Switch Architecture
    • Back-plane (Switching Fabric): 12Gbps
    Data Processing
    • Store and Forward
    Flow Control
    • IEEE 802.3x Flow Control and Back Pressure
    Jumbo Frame
    • 9KB
    MAC Table Size
    • 1K
    Packet Buffer Size
    • 1Mbits
    Network Connector
    • 5 RJ-45 Port: 10/100/1000BaseT(X) auto negotiation, 4 Gigabit PoE+ 802.3at/af PSE port, Auto MDI/MDI-X function, Full/Half duplex
    • 2 SFP slots: 100/1000M Base-X
    Network Cable
    • UTP/STP above Cat.5e Cable, EIA/TIA-568 100-ohm (100m)
    • Fiber Cable (Multi-mode):50/125um,62.5/125um
    • Fiber Cable (Single-mode): 9/125um
    Protocol
    • CSMA/CD
    LED
    • PW1(Green), PW2(Green), ERR(Amber)
    • RJ-45 port: LNK (Green), SPD-1000M(Amber), 10/100M(OFF) ,
    • SFP port: Link (Green)
    DIP Switch
    • DIP 1: OFF- Port 5 SFP (Default) ; ON- Port 5 TX
    • DIP 2: OFF- SFP 1000M (Default) ; ON- SFP 100M
    Reserve polarity protection
    • Present
    Overload current protection
    • Present
    Power Supply
    • Redundant Dual DC 12V-56V Power Input
    Power Consumption
    • 5.76W@12/24/48 VDC full load, Without PoE
    Alarm Relay Contact
    • Relay outputs with current carrying capacity of 1A @24VDC
    • Relay in short circuit mode when 2 powers are connected. in open circuit mode when only one power supply is connected
    PoE power budget
    • Per port 30W, Max.36W per port at 12/24/48 VDC input
    • Max. 120W @24/48VDC power input
    • Max. 60W @ 12VDC power input
    Removable Terminal Block

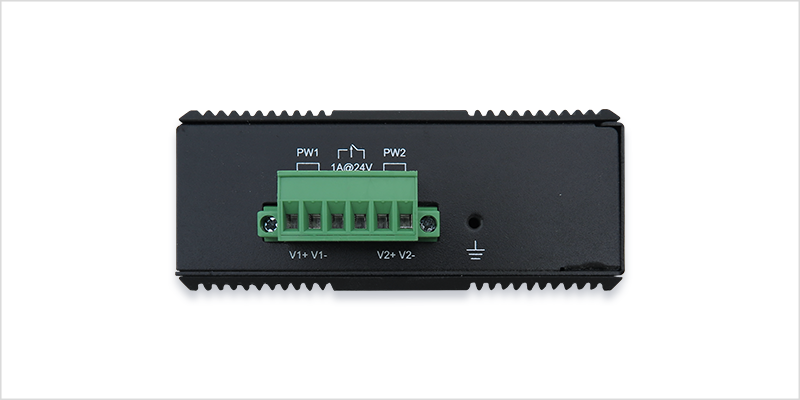

    • Provide 2 Redundant power ,Alarm relay contact ,6 Pin
    • Wire range: 0.34mm^2 to 2.5mm^2
    • Solid wire (AWG):12-24/14-22
    • Stranded wire (AWG): 12-24/14-22
    • Torque:5lb-In/0.5Nm/0.56Nm
    • Wire Strip length: 7-8mm
    Environment
    • Operating Temperature: -40°C ~ 75°C
    • Storage Temperature: -40°C ~ 85°C
    • Operating Humidity: 5% to 95% (Non-condensing)
    Housing
    • Rugged Metal + Aluminum heat sink, IP30 Protection
    Dimension
    • 142 x 43 x 105mm (HxWxD)
    Installation mounting
    • DIN Rail mounting and Wall Mounting
    EMC/EMS
    • CE, FCC
    EMI
    • FCC Part 15 Subpart B Class A
    • CE EN 55022 Class A
    Safety
    • IEC EN60950-1
    Stability Testing
    • EN 50155 / EN 60068-2-6 (Vibration), EN 50155 / EN 60068-2-27(Shock), EN 50155 / EN 60068-2-32(Free Fall), EN50155 / EN50121-3, EN50155 / EN50121-4(Rail Road)

  • RP-IPG421-12V   4-P Gigabit + 1-TP/SFP combo + 1-SFP(100/1G) slot Industrial Switch W/ 4-Port PoE+
