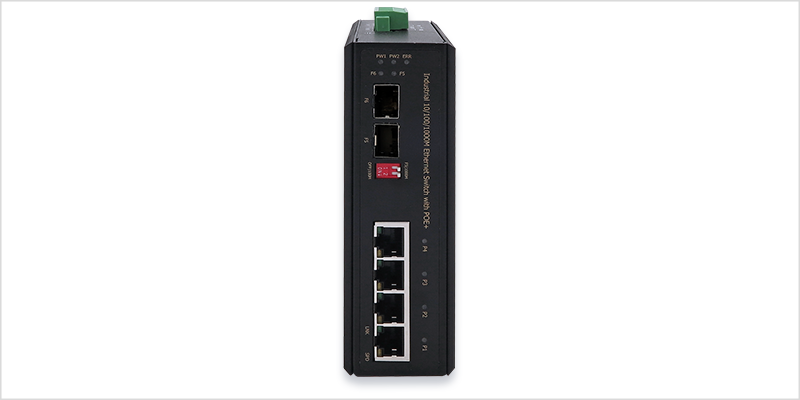

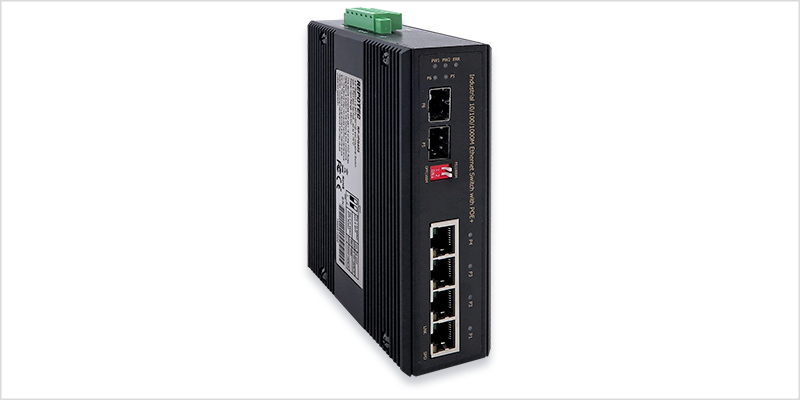

RP-IPGU402


RP-IPGU402
4-P Gigabit UPoE + 2-SFP(100/1G) slot Industrial Switch

Datasheet
Manual

  • RP-IPGU402 Industrial 6 port Gigabit Switch with Ultra POE feature complies with IEEE802.3af and IEEE802.3at. It delivers 60watts power per PoE port and generates a total of 240 watts power to PD devices, and 2 SFP slots are supported.

    RP-IPGU402 provides  redundant dual DC 48V-56V power input, especially for IP surveillance, traffic monitoring and for a broad range of applications. It can be used as a stand-alone device for buses, trucks, and other vehicles for Surveillance purposes.

    With IP-30 standard industrial case protection ,RP-IPGU402 allows either DIN rail or wall mounting thereby making its usability more flexible.  Its wide operating temperature ranges from -40°C to 75°C for under harsh environment.

    • Support 802.3 at/ af/ UPoE, and total up to 240W
    • SFP port supports 100Base-FX and 1000Base-X speed
    • Support 48~56VDC power inputs for power redundancy
    • Supports auto-negotiation and auto-MDI/MDI-X
    • Supports store and forward transmission
    • Supports flow control
    • Rigid IP-30 Aluminum heat sink housing design
    • DIN-Rail and wall mounting enabled



  • Standards
    • IEEE 802.3 10Base-T Ethernet
    • IEEE 802.3u 100Base-TX Fast Ethernet
    • IEEE 802.3ab 1000Base-T Gigabit Ethernet
    • IEEE 802.3z 1000Base-X Gigabit Ethernet
    • IEEE802.3x Flow Control and Back Pressure,
    • IEEE802.3af for POE
    • IEEE802.3at for POE+
    Switch Architecture
    • Back-plane (Switching Fabric): 12Gbps
    Data Processing
    • Store and Forward
    Flow Control
    • IEEE 802.3x Flow Control and Back Pressure
    Jumbo Frame
    • 9KB
    MAC Table Size
    • 1K
    Packet Buffer Size
    • 1Mbits
    Network Connector
    • 4 RJ-45 Port: 10/100/1000BaseT(X) auto negotiation, UPoE 60W 802.3at/af PSE port, Auto MDI/MDI-X, Full/Half duplex
    • 2 SFP slots: 100/1000M Base-X Auto MDI/MDI-X, Full/Half duplex
    Network Cable
    • UTP/STP above Cat.5e Cable, EIA/TIA-568 100-ohm (100m)
    • Fiber Cable (Multi-mode):50/125um,62.5/125um
    • Fiber Cable (Single-mode): 9/125um
    Protocol
    • CSMA/CD
    LED
    • PW1(Green), PW2(Green), ERR(Amber)
    • TX/RJ-45 port: LNK (Link/Active) Green, SPD(Speed) 10/100(OFF),1000 (Green)
    • SFP Fiber Per port: Link (Green) , Active Flash
    DIP Switch
    • DIP 1: OFF/ON: Port 5 SFP
    • DIP 2: OFF/ON: SFP 1000M (Default) / 100M
    Reverse polarity protection
    • Present
    Overload current protection
    • Present
    Power Supply
    • Redundant Dual DC 48V-56V Power Input
    • POE input 48-56VDC
    Power Consumption
    • 5.76W@48 VDC full load, Without POE
    • Max total power 240 Watts,
    • Max per port 60Watts
    Alarm Relay Contact
    • Relay outputs with current carrying capacity of 1 A @24VDC,
    • Relay in short circuit mode when 2 powers are connected. in open circuit mode when only one power supply is connected
    PoE power budget
    • POE power per port 60watts. Maximum total power 240Watts  Supports IEEE802.3af/at

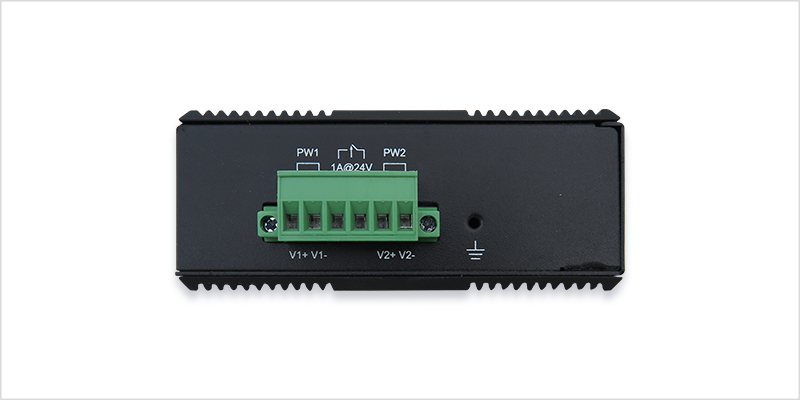

    Removable Terminal Block
    • Provide 2 Redundant power, Alarm relay contact ,6 Pin
    • Wire range: 0.34mm^2 to 2.5mm^2
    • Solid wire (AWG):12-24/14-22
    • Stranded wire (AWG): 12-24/14-22
    • Torque:5lb-In/0.5Nm/0.56Nm
    • Wire Strip length: 7-8mm
    Environment
    • Operating Temperature : -40°C ~75°C
    • Storage Temperature: -40°C~85°C
    • Operating Humidity: 5% to 95% (Non-condensing)
    Housing
    • Rugged Aluminum, IP30 Protection
    Dimension
    • 142 x 43 x 105mm (LxWxD)
    Installation mounting
    • DIN Rail mounting and Wall Mounting
    EMC/EMS
    • CE, FCC
    EMI
    • FCC Part 15 Subpart B Class A
    • CE EN 55022 Class A
    Safety
    • IEC EN60950-1
    Stability Testing
    • EN 60068-2-6 (Vibration), EN 60068-2-27(Shock), EN 60068-2-32(Free Fall)



  • RP-IPGU402  4-P Gigabit UPoE + 2-SFP(100/1G) slot Industrial Switch
