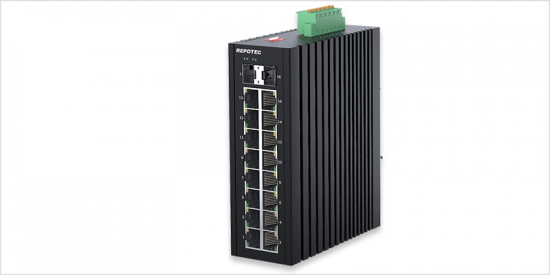

RP-IPG816-2F


16-P Gigabit PoE + 2-SFP(1G) slot Industrial PoE Switch

Model: RP-IPG816-2F

  • 16-P*1000Base-T PoE+ 2*1000Base-X SFP
  • DC 44~57V input, redundant power
  • 802.3af/at PoE standards
  • PoE watchdog set by DIP
  • 10K Jumbo frame support
  • Surge and ESD protection
  • IP40, Fan-less, Din-rail design
  • -40°C to +75°C operation

RP-IPG816-2F is the highly reliable industrial PoE switch with 16-port 10/100/1000-T PoE+ and 2 1000Base-X fiber optic interfaces. It adheres to IEEE 802.3af/at PoE standards, delivering up to 30W per port for powering devices like IP cameras and access points. The switch's DIP switch configuration simplifies setup, enabling functions such as port isolation, QoS, and PoE watchdog.

With a wide power input range of 44-57VDC and redundant power design, RP-IPG816-2F ensures system reliability, even in challenging environments. Its fan-less, IP40-rated cabinet and DIN-rail installation capability make it ideal for industrial use. It can operate seamlessly in temperatures ranging from -40°C to 75°C and offers high-level EMI/EMC protection.

RP-IPG816-2F shines in heavy industrial settings like factories, transportation systems, oil and gas facilities, chemical plants, IP surveillance, and processing automation. It excels in environments that exceed commercial product specifications, making it the top choice for industrial Ethernet networking, thanks to its rugged design and versatile features.

RP-IPG816-2F 16-P Gigabit PoE + 2-SFP(1G) slot Industrial PoE Switch (240W)
