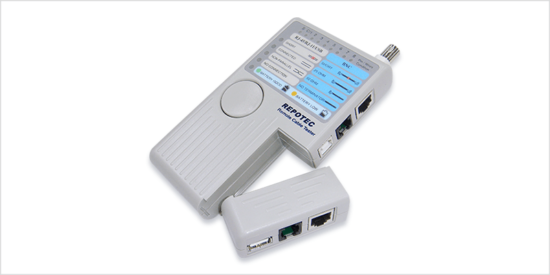

RP-1702U

• Open/short LAN cable tester (STP/UTP, LocalTalk, PhoneNet,Thin Coaxial)
• Separable passive module designed for testing the installed cables
• Termination value test for BNC connectors
• Compact, light, and portable
• Single operation button, easy operation step
• Connector:
  RJ-45/BNC/RJ-11/USB each on main unit
  RJ-45/BNC/RJ-11/USB each on separable remote module
• 5 LEDs for Testing:
  * Open/Short wiring test
  * Connected wires display
  * No connection/no terminator indication
  * Wrong connection/Non-parallel connection display
  * Ethernet 10BASE-2/10BASE-5 terminator value detection
• Dimension:142 * 85 * 25 mm
• Remote passive module included
