RP-PGJ44GD is a versatile DC/DC PoE injector designed to accommodate up to four different DC input voltages and deliver four varying PoE output voltages. Each port supports a maximum power output of 2A, and the data rate can be configured at 10M/100M/1000M, ensuring flexibility for diverse network requirements. Notably, the device allows the reversal of the polarity for each PoE output, providing adaptability to specific deployment needs.

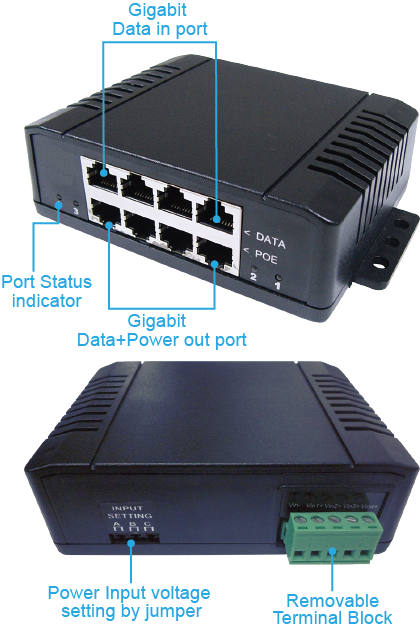

Equipped with bottom ports 1-4 on the front panel, RP-PGJ44GD follows a standard configuration, with data pairs and voltage distribution detailed for optimal performance. The unit supports data rates of 10M/100M/1000Mbps and operates within an input voltage range of 44 to 57V DC. With a maximum PoE power of 35W per port, RP-PGJ44GD incorporates robust protection features, including over-current and over/under voltage safeguards.
The LEDs on the device indicate PD detection, power readiness, and power status. Operating reliably in temperatures ranging from -40 to 70°C, the RP-PGJ44GD is also DIN RAIL mountable, offering convenient installation options for various industrial applications.
