48-P Gigabit + 4-SFP (1G/2.5G/10G) slot L2+ Managed PoE Switch
Model: RP-PG83480IX-4F
- IPv4/IPv6 routing, DHCP server
- GE, 2.5GE, 10GE aggregation
- Access/trunk/hybrid VLANs (Mac/IP/protocol-based)
- Port/VLAN/flow QinQ
- STP/RSTP/MSTP/G.8032 ERPS
- IGMP snooping multicast
- QoS, SP/WRR scheduling
- Dot1x, port/mac/RADIUS authentication
- LLDP, user management, SNMP
- Firmware update, config backup (Web/FTP/TFTP)
RP-PG83480IX-4F is a Layer 2+ managed PoE switch, It offers 48 gigabit PoE ports and 4 1G/2.5G/10G SFP slots and delivers PoE power budget up to 740W. The switch provides full Gigabit access and exceptional scalability, offering impressive 10G performance. With a switching capacity of 336 Gbps, it delivers high-density performance and includes Layer 3 static routing capabilities.
RP-PG83480IX-4F provides comprehensive end to end QoS as well as flexible and rich management, security settings, which can meet the high speed, secure and smart requirement for enterprise networks based on cost effective price. The powerful network security features make the RP-PG83480IX-4F perform effective data traffic control for ISP and enterprise VoIP, video streaming, and multicast applications.
RP-PG83480IX-4F excels in network security, enabling effective data traffic control for Internet Service Providers (ISPs) and enterprises. It efficiently manages VoIP, video streaming, and multicast applications. For SMBs looking to deploy Power over Ethernet networks or enhance data security and network traffic management, the switch offers an affordable, safe, and reliable power solution.
- Supports IPv4/IPv6 static routing, DHCP server
- Supports GE , 2.5GE and 10GE port aggregation, static and dynamic aggregation
- Supports access, truck , hybrid mode and VLAN classification, including the Mac based VLAN, IP based VLAN and protocol based VLAN
- Supports port-based, VLAN-based and flow-based QinQ

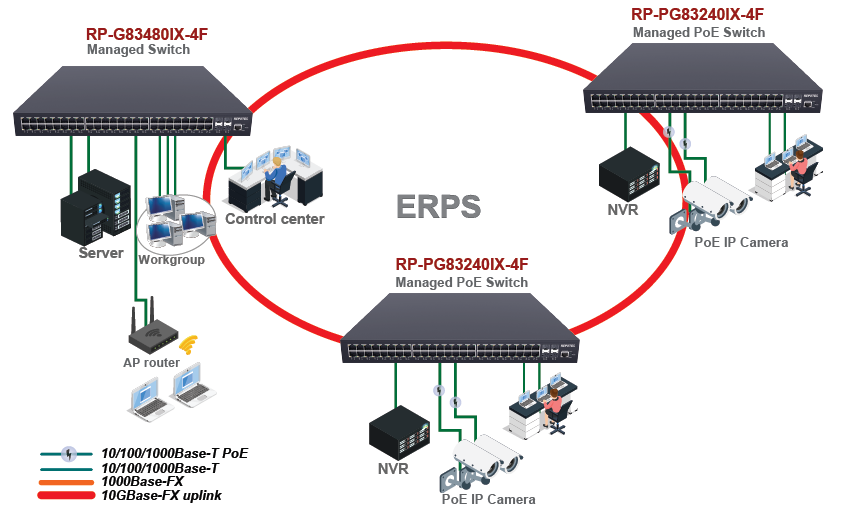

- Supports STP, RSTP, MSTP, G.8032 ERPS protocol, single ring, sub ring
- Multicast: Supports IGMP snooping
- QoS class, remarking, Supports SP, WRR queue scheduling, Ingress/Engress port-based rate-limit and policy-based QoS
- Support Dot1x,port authentication,mac authentication,RADIUS service; Support port-security, ip source guard,IP/Port/MAC binding, arp-check and ARP packet filtering for illegal users and port isolation
- Supports LLDP, user management and login authentication; SNMPV1/V2C/V3; web management,1,HTTPS; Syslog and alarm grading ; RMON
- Firmware update, configure backup/restore through Web GUI, FTP and TFT
Standards |
|
Interface |
|
Management port |
|
PoE |
|
Switching capacity |
|
Packet forwarding rate |
|
MAC address table |
|
Buffer |
|
Layer 2 function | |
Port aggregation |
|
Port features |
|
VLAN |
|
VLAN Classification |
|
QinQ |
|
Port mirroring |
|
Ring network protocol |
|
DHCP |
|
Multicast |
|
ACL |
|
QoS |
|
Security |
|
Management & maintenance |
|
Layer 3 features | |
DHCP server |
|
ARP |
|
IPv4/IPv6 |
|
Mechanical structure | |
Power supply |
|
Fan |
|
PoE Power |
|
Power surge protection |
|
Ethernet ports surge protection |
|
Dimension |
|
Environment |
|
Certification |
|
RP-PG83480IX-4F | 48-P Gigabit + 4-SFP(1G/2.5G/10G) slot L2+ Managed PoE Switch (740W) |
