24-P Gigabit + 4-SFP (1G/2.5G) slot L2+ Managed PoE Switch
Model: RP-PG83240I-4F
- IPv4/IPv6 routing, DHCP server
- GE ports, 2.5GE aggregation
- Access/trunk/hybrid VLANs
- Port/VLAN/flow QinQ
- STP/RSTP/MSTP/G.8032 ERPS
- IGMP snooping multicast
- QoS, SP/WRR scheduling
- Dot1x, port/mac authentication
- LLDP, SNMP, web management
- Firmware update, config backup
The RP-PG83240I-4F is a Layer 2 switch designed for enterprise networks. It offers 24 gigabit PoE ports and 4 1G/2.5G SFP slots, providing flexible connectivity options. With a PoE power budget of up to 400W, it can reliably power connected devices. The switch has a switching capacity of 56Gbps, ensuring efficient data transmission and high-performance networking.
This switch is equipped with comprehensive end-to-end Quality of Service (QoS) capabilities, allowing for effective prioritization of network traffic. It also offers flexible management options and advanced security settings, making it well-suited for networks that require high-speed, secure, and intelligent solutions at an affordable price. With its powerful network security features, it enables effective control of data traffic for Internet Service Providers (ISPs) and supports applications such as VoIP, video streaming, and multicast services.
In addition to its networking capabilities, the RP-PG83240I-4F has a maximum power consumption of 400W, making it a reliable power solution for SMBs deploying Power over Ethernet (PoE) networks. RP-PG83240I-4F combines performance, QoS capabilities, security features, and power efficiency to meet the networking needs of enterprises.
- Supports IPv4/IPv6 static routing, DHCP server
- Supports GE ports, 2.5GE port aggregation, static and dynamic aggregation
- Supports access, truck , hybrid mode and VLAN classification, including the Mac based VLAN, IP based VLAN and protocol based VLAN
- Supports port-based, VLAN-based and flow-based QinQ

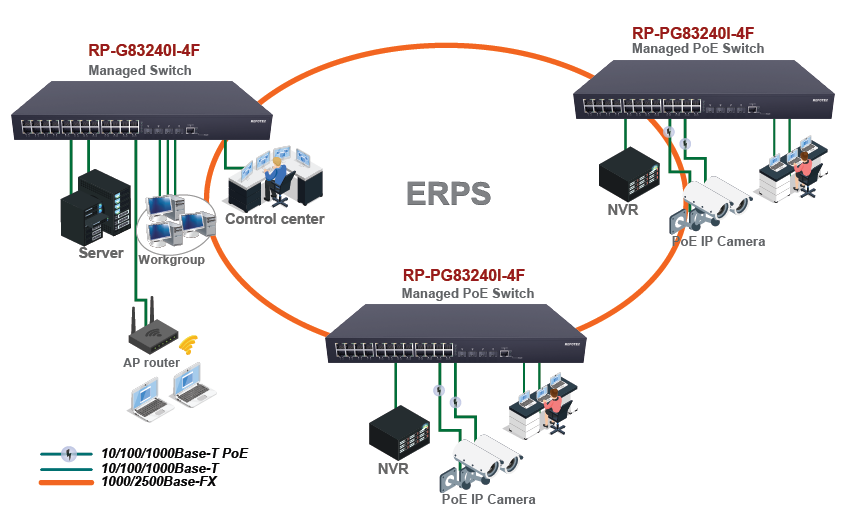

- Supports STP, RSTP, MSTP, G.8032 ERPS protocol, single ring, sub ring
- Multicast: Supports IGMP snooping
- QoS class, remarking, Supports SP, WRR queue scheduling, Ingress/Engress port-based rate-limit and policy-based QoS
- Support Dot1x,port authentication,mac authentication,RADIUS service; Support port-security, ip source guard,IP/Port/MAC binding, arp-check and ARP packet filtering for illegal users and port isolation
- Supports LLDP, user management and login authentication; SNMPV1/V2C/V3; web management,1,HTTPS; Syslog and alarm grading ; RMON
- Firmware update, configure backup/restore through Web GUI, FTP and TFTP
Standards |
|
Interface |
|
Management port |
|
PoE |
|
Switching capacity |
|
Packet forwarding rate |
|
MAC address table |
|
Buffer |
|
Layer 2 function | |
Port aggregation |
|
Port features |
|
VLAN |
|
VLAN Classification |
|
QinQ |
|
Port mirroring |
|
Ring network protocol |
|
DHCP |
|
Multicast |
|
ACL |
|
QoS |
|
Security |
|
Management & maintenance |
|
Layer 3 features | |
DHCP server |
|
ARP |
|
IPv4/IPv6 |
|
Mechanical structure | |
Power supply |
|
Fan |
|
PoE Power |
|
Power surge protection |
|
Ethernet ports surge protection |
|
Dimension |
|
Environment |
|
Certification |
|
RP-PG83240I-4F | 24-P Gigabit + 4-SFP(1G/2.5G) slot L2+ Managed PoE Switch (400W) |
