Managed PoE Switch - RP-PG83168I-4F

Overview

Features

Specifications

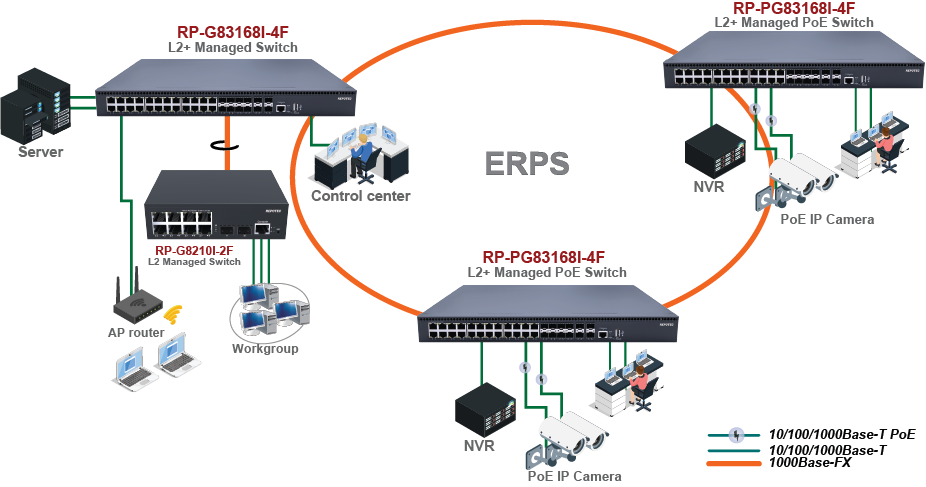

Applications

Download

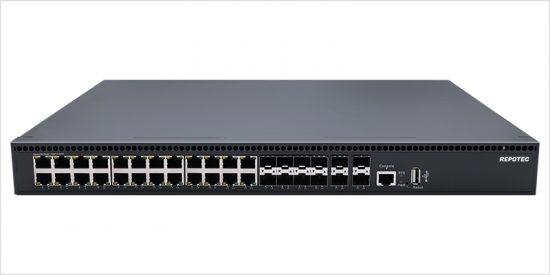

RP-PG83168I-4F is a Layer 2+ full gigabit managed PoE switch featuring 16 Gigabit Ethernet ports, 8 TP/SFP (1G) combo ports, and 4 SFP (1G/2.5G) slots. With an impressive 68Gbps switching capacity, this switch delivers high-density performance, making it an ideal choice for enterprise networks. Its comprehensive end-to-end Quality of Service (QoS) and flexible management ensure the network meets the demands of high-speed, secure, and intelligent networking.

RP-PG83168I-4F stands out as a versatile and reliable solution for SMBs seeking a cost-effective PoE network. With a total power consumption of up to 400W , it offers ample power to support various PoE devices. Its enhanced data security features contribute to safeguarding critical data and information within the network. The RP-PG83168I-4F proves to be an efficient and dependable solution for businesses requiring effective network traffic management and enhanced data security.

RP-PG83168I-4F is a powerful, reliable PoE switch catering to SMBs' network needs with high-density performance and comprehensive QoS. Its robust security features ensure effective data traffic control for ISP and enterprise applications, making it an ideal choice for modern network deployments.

Complies with IEEE 802.3at, max output power per port 30W(PoE+)
Smart and standard PoE chipset for automatic PD equipment detection, preventing damage.
Supports IPv4/IPv6 static routing, DHCP server
Supports GE ports, 2.5GE port aggregation, static and dynamic aggregation
Supports access, trunk, and hybrid mode VLAN classification
Supports port-based, VLAN-based and flow-based QinQ
Supports STP, RSTP, MSTP, G.8032 ERPS protocol, single ring, sub ring
Supports IGMP snooping , Port Mirroring
Supports SP, WRR queue scheduling, rate-limiting, and policy-based QoS
Supports Dot1x, port authentication, MAC authentication, RADIUS service.
Supports LLDP, user management, login authentication; SNMPV1/V2C/V3; web management.
Firmware update, configure backup/restore through Web GUI, FTP and TFTP

Standards	IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX Ethernet IEEE 802.3ab 1000Base-T Ethernet IEEE 802.3z 1000Base-X Ethernet IEEE802.3x Flow Control and Back Pressure IEEE 802.1D Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1Q VLAN ITU-T G.8032 ERPS IEEE 802.1X Port Authentication Network Control IEEE 802.1ab LLDP IEEE 802.3ad LACP IEEE 802.3af PoE IEEE 802.3at PoE+

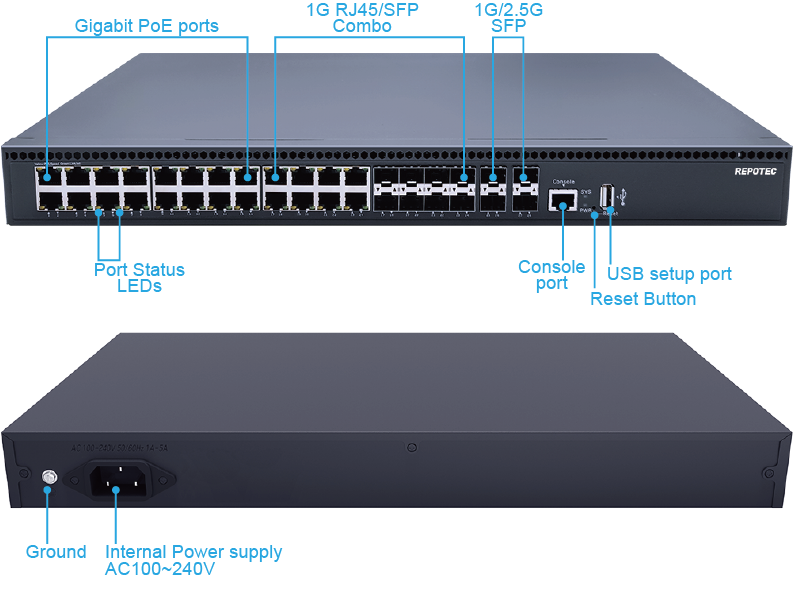

Interface	24 x 10/100/1000Base-T RJ45 PoE ports 4 x 1G/2.5G Base-X SFP+
Management port	1 x RJ45 Console port
PoE	Complies with IEEE 802.3at, IEEE802.3af standard. Max output power per port can reach 30W(PoE+) Support 1/2(+) 3/6(-) Endspan Support standard & non-standard PD
Switching capacity	68Gbps
Packet forwarding rate	101Mpps
MAC address table	16K
Buffer	12M bit
Layer 2 function
Port aggregation	Support gigabit port, 2.5GE and 10GE port aggregation Support static and dynamic aggregation
Port features	Support IEEE802.3x flow control, Port traffic statistics, port isolation Support network storm suppression based on port bandwidth percentage
VLAN	Support access, trunk and hybrid mode
VLAN Classification	Mac Based VLAN IP Based VLAN Protocol Based VLAN
QinQ	Basic QinQ (Port-based QinQ) Flexible Q in Q(VLAN-based QinQ) QinQ(Flow-based QinQ)
Port mirroring	Many to one (Port Mirroring)
Ring network protocol	Support STP、RSTP、MSTP Support G.8032 ERPS protocol，single ring, sub ring and other ring
DHCP	DHCP Client DHCP Snooping
Multicast	IGMP snooping
ACL	IP Standard ACL MAC extend ACL IP extend ACL
QoS	Support QoS Class, Remarking Support SP, WRR queue scheduling Ingress Port-based Rate-limit Egress Port-based Rate-limit Support Policy-based QoS
Security	Support Dot1x，port authentication，MAC authentication，RADIUS service Support port-security Support IP Source Guard，IP/Port/MAC binding Support ARP-check and ARP packet filtering for illegal users Support port isolation
Management & maintenance	Support LLDP Support user management and login authentication Support SNMPV1/V2C/V3 Support web management, HTTP1.1, HTTPS Support Syslog and alarm grading Support RMON(Remote Monitoring) alarm, event and history record Support NTP Support temperature monitoring Support Ping, Tracert Support optical transceiver DDM function Support TFTP Client Support Telnet Server Support SSH Server Support IPv6 Management Support PoE management Support FTP, TFTP, WEB upgrading
Layer 3 features
DHCP server	DHCP server
ARP	ARP table aging
IPv4/IPv6	Static routing
Mechanical structure
Power supply	VAC input Rated voltage range: 100-240V Frequency: 50/60Hz
Fan	Support fan speed control
PoE Power	Total PoE power budget 400W
Power surge protection	6KV, IEC 61000-4-5 Level X (8/20us)
Ethernet ports surge protection	4KV, IEC 61000-4-5 Level 4 (10/700us)
Dimension	440 x 245 x 44mm (WDH)
Environment	Operating temperature: 0°C~+50°C Operating Humidity: 10 to 90% (Non-Condensing)
Certification	CE/FCC
