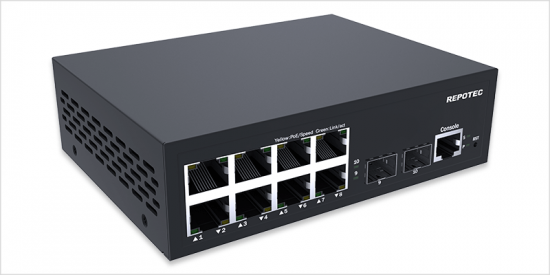

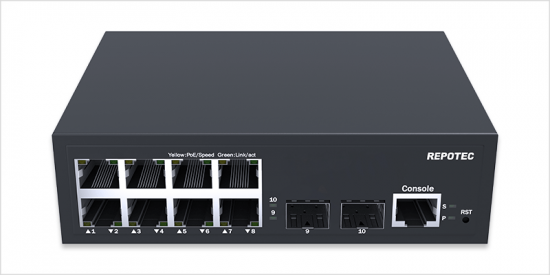

8-P Gigabit + 2-SFP(1G/2.5G) slot L2+ Managed PoE Switch
Model: RP-PG8210I-2F
- IEEE 802.3at standard, Max output power: 30W
- Supports GE, 2.5GE aggregation
- Access, trunk, VLAN classification
- Port-based, VLAN-based QinQ
- STP, RSTP, MSTP, ERPS
- IGMP, Port Mirroring, QoS
- Dot1x, MAC, RADIUS authentication
- Port-security, IP source guard
- LLDP, SNMP, web management
- RMON, NTP, Ping, Tracert
- TFTP, Telnet, SSH, IPv6
- Firmware update, backups
RP-PG8210I-2F is a Layer 2 gigabit managed PoE switch with 8-port 10/100/1000Base-T RJ45 PoE ports and 2*1G/2.5G SFP ports. Its powerful Layer 2 management and high-performance switching offer a cost-effective Gigabit Ethernet solution for enterprise networks.
RP-PG8210I-2F supports Power over Ethernet (PoE) applications. With a total power capacity of up to 110 watts, it can efficiently power various PoE devices, making it a quick, safe, and cost-effective PoE network solution for both small businesses and enterprises. Its comprehensive QoS features ensure prioritization and smooth data traffic management, while the rich management provide administrators with the flexibility to tailor the network to their specific requirements, bolstering overall data security.
With its comprehensive QoS, flexible management, and enhanced security settings, as well PoE support, the RP-PG8210I-2F is an excellent choice for modern enterprise networks. It delivers reliable and cost-effective Gigabit Ethernet capabilities to meet the evolving demands of businesses adopting advanced IT technologies.
- Complies with IEEE 802.3at, IEEE 802.3af. Max output power: 30W (PoE+)
- Smart and standard PoE chipset for automatic PD equipment detection, preventing damage
- Supports access, trunk, hybrid mode, and VLAN classification, including Mac-based, IP-based, and protocol-based VLANs
- Supports port-based, VLAN-based, and flow-based QinQ

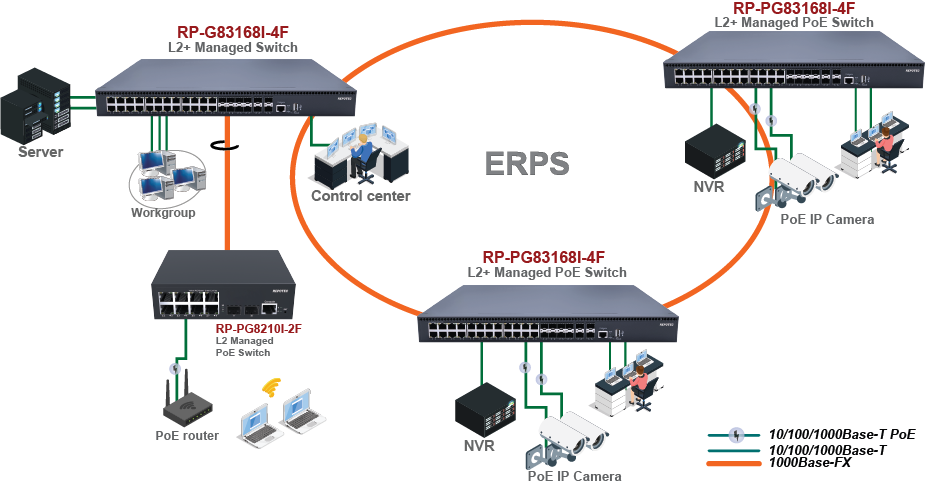

- Supports STP, RSTP, MSTP, G.8032 ERPS protocol, single ring, sub ring
- IGMP snooping, Port Mirroring, Port isolation and QoS
- Supports Dot1x, port authentication, MAC authentication, RADIUS service
- Supports port-security, IP source guard, IP/Port/MAC binding, ARP-check, and ARP packet filtering
- Supports LLDP, SNMPV1/V2C/V3, web management (HTTP1.1, HTTPS), Syslog, and alarm grading
- RMON (Remote Monitoring) alarm, event, and history record
- NTP, temperature monitoring, Ping, Tracert, and optical transceiver DDM function
- Supports TFTP Client, Telnet Server, SSH Server, and IPv6 Management
- Firmware update, configure backup/restore through Web GUI, FTP, and TFTP
Standards |
|
Interface |
|
PoE |
|
Forwarding Capacity |
|
Switching Capacity |
|
Buffer |
|
MAC Table |
|
Layer 2 function | |
Port aggregation |
|
Port features |
|
VLAN |
|
VLAN Classification |
|
QinQ |
|
Port mirroring |
|
Layer 2 ring network protocol |
|
DHCP |
|
Multicast |
|
ACL |
|
QoS |
|
Security |
|
Management and maintenance |
|
Mechanical structure | |
Fan |
|
Ethernet ports surge protection |
|
PoE Power |
|
Power Supply |
|
Environment |
|
Dimension |
|
Certification |
|
RP-PG8210I-2F | 8-P Gigabit + 2-SFP(1G/2.5G) slot L2+ Managed PoE Switch (110W) |
