RP-UB2803C


RP-UB2803C

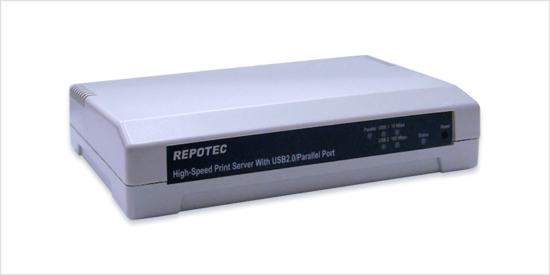

2-USB2.0 + 1-Parallel Port Print Server

Datasheet
Manual      QIG
Utility

  • The external print servers enhance capability by letting you place your printers at convenient location directly on the Ethernet network, and by increasing network printer performance and management. Please note that the print server also support printing with host-based printers, e.g. CAPT, GDI, PPA and multi-function printer.

    The Print Server supports dual functionalities: USB over IP mode and Print Server mode, Users can choose one of the modes for USB port.

    • 1* Bi-directional parallel port (IEEE 1284) for port 1 (PID1)
    • 2* USB 2.0 High Speed ports for port 2, 3(PID2, 3)
    • Fast Ethernet network port: RJ-45 for 10Base-T or 100Base-TX
    • Network Protocol Supports TCP/IP, IPX, NetBEUI, AppleTalk, LPR, SMB
    • USB over IP function supports Print, Scan, Fax, bi-direction, MFP storage devices
    • Supports WEB interface Firmware Update
    • Support DHCP-Client
    • Support Simple Network Management Protocol (SNMP)
    • Easy-to-Use Windows Setup Wizard



  • Standards
    • IEEE 802.3 for 10BASE-T
    • IEEE 802.3u for 100BASE-TX

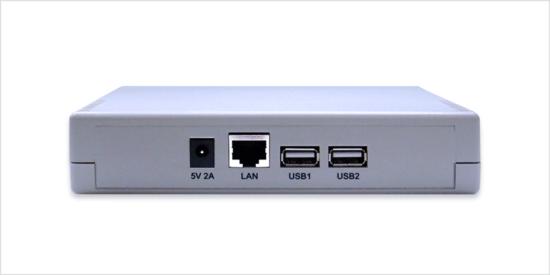

    Interface
    • 1x RJ45 ports: with 10/100Mbps, Auto MDI/MDI-X
    • 2x USB2.0 standard compliant port
    • 1x Parallel D-type 25 pin female port, supporting bi-directional communication
    • DC jack
    Reset Button
    • Yes (Reset / Power On Load Factory Defaults)
    CPU
    • RDC 2886
    Flash
    • 1 Mbps
    System Memory
    • 2 Mbps SDRAM
    Easy-to-use Setup Wizard
    • Yes (Windows Setup CD-ROM)
    Network Operating System Support
    • Windows 9X/Me/NT4.0/2000/XP/2003/Vista/7/8/10 Mac OS 8.1 or higher, UNIX/Linux
    • NetWare (Bindery/NDS)
    Network Protocol Support
    • TCP/IP, IPX, NetBEUI, AppleTalk, LPR, SMB over IP*, IPP
    Parallel port printing mode
    • ECP
    Windows Print Monitor Technology
    • Yes
    DHCP Client Support
    • Yes
    Management
    • Web interface
    • Windows-based Setup Program
    SNMP Support
    • Yes
    HP WebJetAdmin Support
    • Yes
    E-Mail Alert Support
    • Yes
    Job Log Support
    • Yes
    Firmware Upgradeable
    • Web interface
    • Windows-based Setup Program
    • TFTP

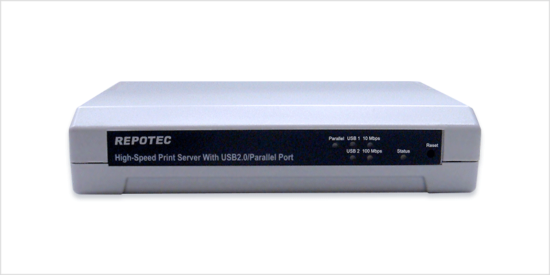

    LED Indicators
    • Power (Green)
    • Status (Red)
    • LAN 100Mbps(Green), 10Mbps(Orange)
    • USB1/ USB2: Hi-Speed(Green), other(Orange)
    • Parallel (Green)
    Power Supply
    • External power adapter 5V 2A
    Environment
    • Operating temperature: 0°C to 50°C
    • Storage Temperature: -5~65°C
    • Operating Humidity: 0 to 70% (Non-Condensing)
    • Storage Humidity: 0 to 80%
    Dimension
    • 180(L) x 100(W) x 35(H) mm
    Certification
    • CE , FCC Class B

  • RP-UB2803C 2-USB2.0 + 1-Parallel Port Print Server
