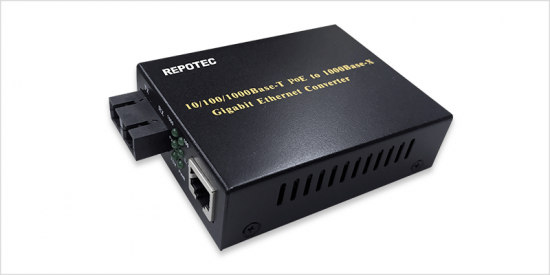

RP-MC311PSC

RP-MC311PSC is a high-performance Gigabit PoE Media Converter designed to connect different network media. It enables seamless conversion between 10/100/1000Base-T and 1000Base-SX fiber links.

Supporting IEEE 802.3, 802.3u, 802.3z, 802.3ab, and 802.3af/at, it features full/half-duplex auto-sensing, MDI/MDI-X auto-adjustment, and store-and-forward switching to ensure reliable data transmission.

This compact device extends copper network reach up to 550 meters over fiber and supplies power via PoE. With a 0 °C to 40 °C operating range, it's ideal for indoor industrial and enterprise use.

• Supports IEEE 802.3, 802.3u, 802.3z, 802.3ab, and 802.3af/at PoE.
• Gigabit Media Conversion, converts 10/100/1000Base-T to 1000Base-SX.
• Increases network range up to 550 meters over fiber.
• Supports auto-sensing for full/half-duplex modes.
• MDI/MDI-X Auto-Sensation, automatically adjusts for different cables.
• Store-and-Forward, Buffers packets to reduce transmission errors.
• Supports power delivery via IEEE 802.3af/at.
• Robust Operation: 0 °C to 40 °C ambient temperature
