Industrial 155Mbps SFP


Industrial 155Mbps SFP

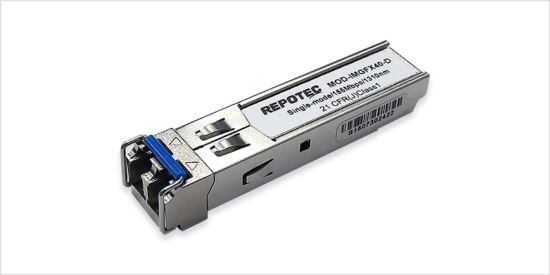

Industrial 155Mbps SFP Optical Transceiver




    • Up to 155Mbps data-rate
    • 1310nm FP(LED)laser and PIN photo detector for 2km transmission with MMF
    • Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
    • Digital Diagnostic Monitoring:
      Internal Calibration or External Calibration
    • Compatible with RoHS
    • +3.3V single power supply
    • Operating case temperature: -40 to +85°C

    Applications

    • SDH STM-1, I-1
    • Sonet OC-3,SR1
    • Fast Ethernet
    • Other Optical Links

  • Model Number Wavelength Media Distance Application TX Power RX Power Temp Voltage Monitor
    MOD-IMGFX02-D 1310(FP) MMF 2km 100Base-FX -18 to -14 -30 to 0 -40 to +85°C 3.3V YES
    MOD-IMGFX20-D 1310(FP) SMF 20km 100Base-FX -14 to -8 -28 to -3 -40 to +85°C 3.3V YES
    MOD-IMGFX40-D 1310(FP) SMF 40km 100Base-FX -5 to 0 -23 to -3 -40 to +85°C 3.3V YES

  • MOD-IMGFX02-D Industrial 155Mbps SFP Optical Transceiver (MM, 2km)
    MOD-IMGFX20-D Industrial 155Mbps SFP Optical Transceiver (SM, 20km)
    MOD-IMGFX40-D Industrial 155Mbps SFP Optical Transceiver (SM, 40km)
