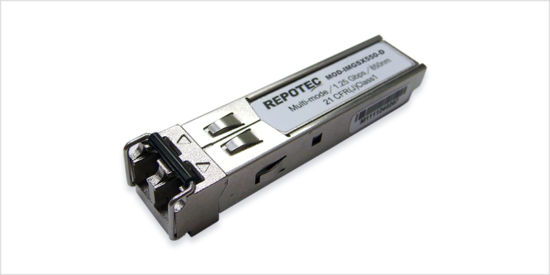

Industrial 1.25Gbps SFP Optical Transceiver




    • Data-rate of 1.25Gbps operation
    • 850nm VCSEL laser and PIN photodetector
    • Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
    • Digital Diagnostic Monitoring:
      Internal Calibration or External Calibration
    • 500m transmission with 50/125µm MMF
    • 300m transmission with 62.5/125µm MMF
    • Compatible with RoHS
    • +3.3V single power supply
    • Operating Temperature : -40 to +85°C

    Applications

    • Gigabit Ethernet
    • Fiber Channel
    • Switch to Switch interface
    • Switched backplane applications
    • Router/Server interface
    • optical transmission systems

  • Model Number Wavelength Media Distance Application TX Power RX Sens Temp. Voltage Monitor
    MOD-IMGSX550-D 850(VCSEL) MMF 550m 1000Base-SX -9.5 to -3.5 -18 to -3 -40 to +85°C 3.3V YES
    MOD-IMGLX10-D 1310(FP) SMF 10km 1000Base-LX -9 to -3 -23 to 0 -40 to +85°C 3.3V YES
    MOD-IMGLX20-D 1310(FP) SMF 20km 1000Base-LX -9 to -3 -23 to 0 -40 to +85°C 3.3V YES
    MOD-IMGLX40-D 1310(FP) SMF 40km 1000Base-LX -5 to 0 -23 to -3 -40 to +85°C 3.3V YES

  • MOD-IMGSX550-D   Industrial 1.25Gbps SFP Optical Transceiver (MM, 550m)
    MOD-IMGLX10-D  Industrial 1.25G SFP Optical Transceiver (SM, 10Km)
    MOD-IMGLX20-D Industrial 1.25G SFP Optical Transceiver (SM, 20Km)
    MOD-IMGLX40-D Industrial 1.25G SFP Optical Transceiver (SM, 40Km)
