RP-IPG541

RP-IPG541
5-P Gigabit Industrial Switch with 4 PoE ports

Datasheet
Manual

  • RP-IPG541 is an industrial 5 port Gigabit switch and equips with 4 PSE ports. RP-IPG541 complies with IEEE 802.3af/at standards supplying PoE power budget 30W per port up to total120Watts. RP-IPG541 is well suited for heavy usage areas such as hazardous environments or central control place where a reliable device is critical. It is an ideal solution for Industrial Automation, IP surveillance, traffic monitoring and a wide range of applications. It has been rigorously tested for your Security, Transportation and Telco applications in climatically demanding environments with wide temperature range from -40 to 75°C.

    With IP30 industrial case protection, the RP-IPG541 provides a high level of immunity against corrosion and electromagnetic interference.  RP-IPG541 also allows either DIN rail or wall mounting for efficient use of cabinet space.

    • Supports P.S.E. based on IEEE 802.3at up to 30 Watts per port
    • RJ-45 port support Auto MDI/MDI-X Function
    • Store-and-Forward Switching Architecture
    • Support 48~56VDC power inputs for power redundancy
    • Back-plane (Switching Fabric): 10Gbps
    • 1M Memory Buffer
    • 2K MAC Address Table
    • Power Polarity Reverse Protect
    • Overload Current Re-settable Fuse Present
    • IP-30 Protection
    • DIN Rail and Wall Mount Design
    • Support Wide Operating Temperature -40°C~75°C
    • 2kV Surge immunity



  • Standards
    • IEEE 802.3 10Base-T Ethernet
    • IEEE 802.3u 100Base-TX Fast Ethernet
    • IEEE 802.3ab 1000Base-T Gigabit Ethernet
    • IEEE802.3x Flow Control and Back Pressure,
    • IEEE802.3af for PoE; IEEE802.3at for PoE+
    Switch Architecture
    • Back-plane (Switching Fabric): 10Gbps
    Data Processing
    • Store and Forward
    Flow Control
    • IEEE 802.3x Flow Control and Back Pressure
    Jumbo Frame
    • 9KB
    Memory Buffer
    • 1M
    Mac Address
    • 2K MAC
    Interface
    • 5 x 10/100/1000 Mbps TP Jack (RJ-45) auto negotiation, Auto MDI/MDI-X function, Full/Half duplex, 4 802.3af/at PoE
    Network Cable
    • UTP/STP above Cat.5e Cable
    • EIA/TIA-568 10-ohm (100m)
    Protocol
    • CSMA/CD
    LED Indicators
    • Per unit: Power 1 (Green), Power 2 (Green)
    • Per port: Link/Active (Green), PoE Detected (Amber)
    Reserve polarity protection
    • Present
    Overload current protection
    • Present
    Power Consumption
    • 2.24W@48 VDC full load, Without PoE
    Power Supply
    • Redundant Dual DC 48V-56V Power Input
    • PoE input 48-56VDC
    PoE power
    • PoE power per port 30watts.
    • Maximum total power 120Watts with 56VDC input, Supports IEEE802.3af/at
    Removable Terminal Block
    • Provide 2 Redundant power, 4 Pin
    • Wire range: 0.34mm^2 to 2.5mm^2
    • Solid wire (AWG):12-24/14-22
    • Stranded wire(AWG): 12-24/14-22
    • Torque:5lb-In/0.5Nm/0.56Nm
    • Wire Strip length: 7-8mm
    Environment
    • Operating temperature : -40°C~75°C
    • Storage temperature: -40°C ~85°C
    • Operating Humidity: 5% to 95% (Non-Condensing)
    Dimension
    • 103.5 x 32 x 81.5mm (LxWxD)
    Housing
    • Rugged Metal ,IP30 Protection
    Installation
    • DIN Rail and Wall Mount Design
    Certification Safety
    • LVD (EN62368-1)
    EMC
    • CE, FCC, EN 55032/35
    EMI
    • CISPR 32, FCC Part 15B Class A
    EMS
    • IEC 61000-4-2 ESD: Contact: 6KV; Air: 8KV
    • IEC 61000-4-4 EFT: Power: 2KV; Signal: 2KV
    • IEC 61000-4-5 Surge: Power: 2KV; Signal: 2KV
    Stability Testing
    • Vibration EN 60068-2-6, Shock EN 60068-2-27, Free Fall EN 60068-2-32

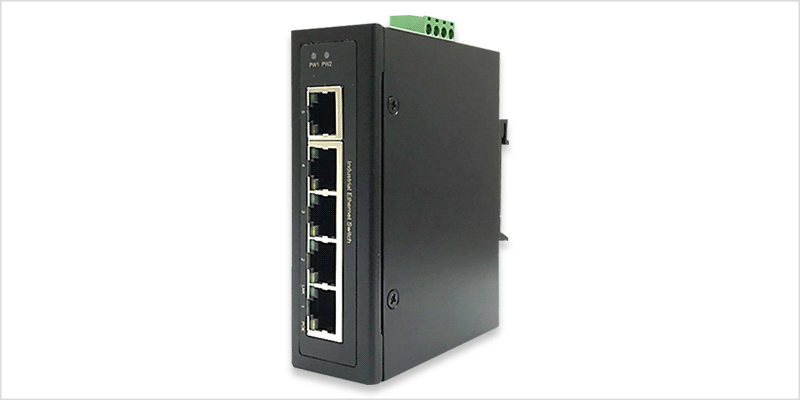

  • RP-IPG541 5-P Gigabit Industrial Ethernet Switch with 4 802.3at PoE ports
