RP-IPG402A | RP-IPG401A | RP-IPG421A

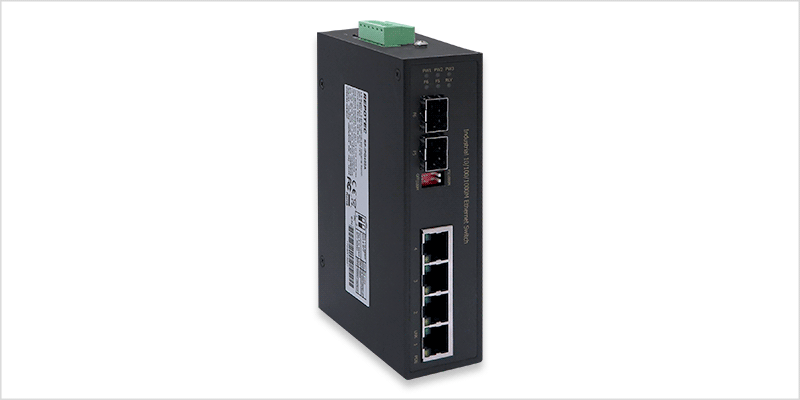

RP-IPG402A
4-P Gigabit PoE + 2-SFP(100/1G) slot Industrial Switch, with External DC power DIN

  • RP-IPG402A Industrial Ethernet Switch with PoE+ feature complies with IEEE802.3af and IEEE802.3at. It delivers 30watts power per PoE port and generates a total of 126 watts power to PD devices, and 2 SFP slots are supported. RP-IPG402A provides power input voltage 48~56VDC, especially for IP surveillance, traffic monitoring and for a broad range of applications.

    RP-IPG402A accepts 3 power input source, from PW1, PW2, and Power DIN (for external power adapter).

    RP-IPG402A can be used as a stand-alone device for buses, trucks, and other vehicles for Surveillance purposes. With IP-30 standard industrial case protection allows for either DIN rail or wall mounting for efficient use of cabinet space.

    Its wide operating temperature ranges from -40°C to 75°C for under harsh environment.

    • Supports P.S.E. based on IEEE 802.3at up to 30 Watts per port
    • SFP port supports 100Base-FX and 1000Base-X speed
    • Support 48~56VDC power inputs for power redundancy
    • Support overload current protection
    • Support reverse polarity protection
    • Supports auto-negotiation and auto-MDI/MDI-X
    • Supports store and forward transmission
    • Supports flow control
    • Rigid IP-30 housing design
    • DIN-Rail and wall mounting enabled
    • Built-in power DIN for 110/240VAC environment
    • Support Wide Operating Temperature -40℃~75℃

  • Standards
    • IEEE 802.3 10Base-T Ethernet
    • IEEE 802.3u 100Base-TX Fast Ethernet
    • IEEE 802.3ab 1000Base-T Gigabit Ethernet
    • IEEE 802.3z 1000Base-X Gigabit Ethernet
    • IEEE802.3x Flow Control and Back Pressure,
    • IEEE802.3af for POE
    • IEEE802.3at for POE+
    Interface RP-IPG402A

    • 4 RJ-45 Port: 10/100/1000BaseT(X) auto negotiation, 4 Giga POE+ 802.3at/af PSE port, Auto MDI/MDI-X function, Full/Half duplex
    • 2 SFP slots: 100/1000M Base-X
    RP-IPG401A

    • 4 RJ-45 Port: 10/100/1000BaseT(X) auto negotiation, 4 Giga POE+ 802.3at/af PSE port, Auto MDI/MDI-X function, Full/Half duplex
    • 1 SFP slots: 100/1000M Base-X
    RP-IPG421A

    • 5 RJ-45 Port: 10/100/1000BaseT(X) auto negotiation, 4 Giga POE+ 802.3at/af PSE port, Auto MDI/MDI-X function, Full/Half duplex
    • 2 SFP slots: 100/1000M Base-X
    Switch Architecture
    • Back-plane (Switching Fabric): 12Gbps
    Data Processing
    • Store and Forward
    Flow Control
    • IEEE 802.3x Flow Control and Back Pressure
    Jumbo Frame
    • 9KB
    MAC Table Size
    • 1K
    Packet Buffer Size
    • 1Mbits
    Network Cable
    • UTP/STP above Cat.5e Cable, EIA/TIA-568 100-ohm (100m)
    • Fiber Cable (Multi-mode):50/125um,62.5/125um
    • Fiber Cable (Single-mode): 9/125um
    Protocol
    • CSMA/CD

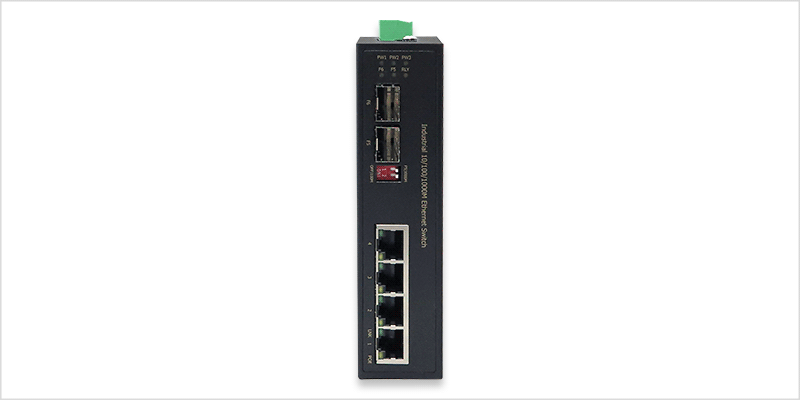

    LED indicator
    • PW1(Green), PW2(Green), PW3(Amber), RLY(Amber)
    • RJ-45 port: LNK (Green), PoE(Amber)
    • SFP (Green)
    DIP Switch RP-IPG402A, RP-IPG401A

    • DIP 1: OFF: Port 5 SFP ON (Default) ; ON: Port 5 SFP OFF
    • DIP 2: OFF: SFP 1000M ; ON: SFP 100M
    RP-IPG421A

    • DIP 1: OFF: Port 5 SFP (Default) ; ON: Port 5 TX
    • DIP 2: OFF: SFP 1000M ; ON: SFP 100M
    Reverse polarity protection
    • Present
    Overload current protection
    • Present
    Power Supply
    • Redundant Dual DC 48V-56V Power Input
    • PoE input 48-56VDC
    Power Consumption
    • 5.76W@48 VDC full load, Without PoE
    Alarm Relay Contact
    • Relay outputs with current carrying capacity of 1 A @24VDC,
    • Relay in “open” circuit mode when PW1 and PW2 are connected. in “short” circuit mode when only one power supply is connected
    PoE power budget
    • POE power per port 30watts. Maximum 36Watts
    • Maximum total power 126Watts, Supports IEEE802.3af/at

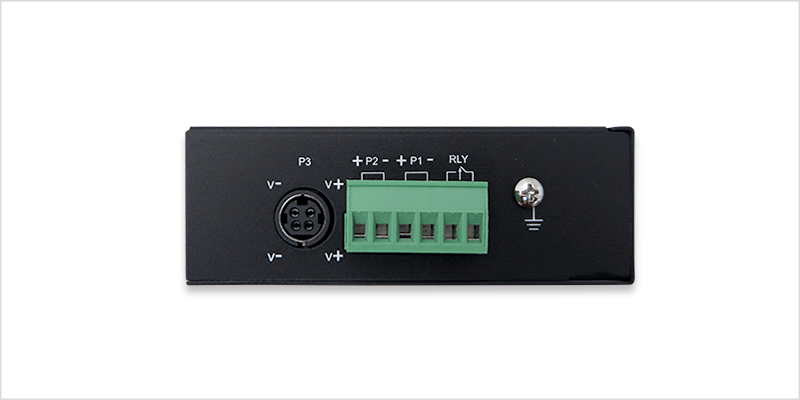

    Removable Terminal Block
    • Provide 2 Redundant power, Alarm relay contact, 6 Pin. And circular POWER DIN for power adapter
    • Wire range: 0.34mm^2 to 2.5mm^2
    • Solid wire (AWG):12-24/14-22
    • Stranded wire(AWG): 12-24/14-22
    • Torque:5lb-In/0.5Nm/0.56Nm
    • Wire Strip length: 7-8mm
    Environment
    • Operating Temperature: -40°C ~75°C
    • Storage Temperature: -40°C~85°C
    • Operating Humidity: 5% to 95% (Non-condensing)
    Housing
    • Rugged Metal ,IP30 Protection
    Dimension
    • 142 x 43 x 105mm (LxWxD)
    Installation mounting
    • DIN Rail mounting and Wall Mounting
    EMC/EMS
    • CE, FCC
    EMI
    • FCC Part 15 Subpart B Class A
    • CE EN 55022 Class A
    Safety
    • IEC EN60950-1
    Stability Testing
    • EN 50155 / EN 60068-2-6 (Vibration), EN 50155 / EN 60068-2-27(Shock), EN 50155 / EN 60068-2-32(Free Fall)

  • RP-IPG402A 4-P Gigabit PoE + 2-SFP(100/1G) slot Industrial Switch, with External DC power DIN
    RP-IPG401A 4-P Gigabit PoE + 1-SFP(100/1G) slot Industrial Switch, with External DC power DIN
    RP-IPG421A   4-P Gigabit PoE + 1-TP/SFP combo + 1-SFP(100/1G) slot Industrial Switch, with External DC power DIN
